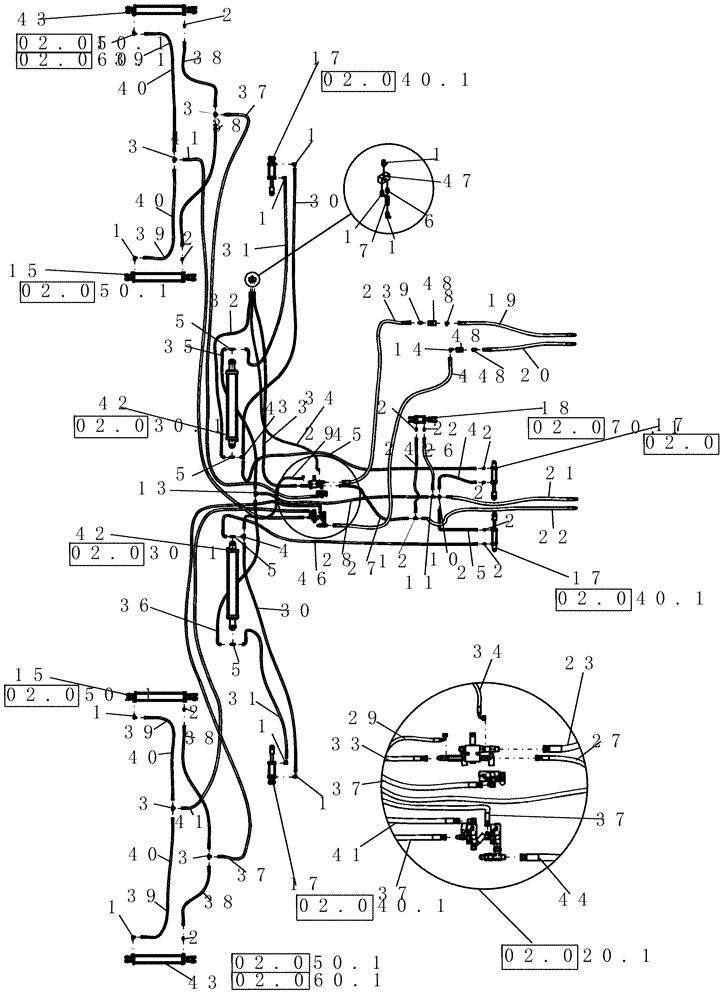

Запчасти Case IH ATX700 (02.000.1) - HYDRAULIC, LAYOUT BSN Y8S003250 (07) - HYDRAULICS

1

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

11шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

10шт.

3

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

4шт.

4

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

5

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

4шт.

6

1261010C1

FITTING

stl union 3/4" mb 3/4" mb straight

1шт.

7

22357

CHECK VALVE

1/2"fb 1/2"fb

1шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

10

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

11

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

12

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

13

23388

TEE

fitting, hydraulic - bulkhead

1шт.

14

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

15

87420235

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4" x 24" 3000 psi no pins

2шт.

Refer to 02.050.1

1шт.

17

87419786

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3" x 4" 3000 psi no pins

4шт.

Refer to 02.040.1

1шт.

18

87567768

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 50.8mm Stroke

2" x 2"

1шт.

Refer to 02.070.1

1шт.

19

87570931

HYDRAULIC HOSE,19.04 mm ID x 4622.80 mm, SAE 100R17

1шт.

20

87570932

HYDRAULIC HOSE,19.04 mm ID x 4216.40 mm, SAE 100R17

1шт.

21

87502290

HYDRAULIC HOSE,9.65 mm ID x 3683.00 mm, SAE 100R17

1шт.

22

87570930

HYDRAULIC HOSE,9.65 mm ID x 4267.20 mm, SAE 100R17

1шт.

23

87535026

HYDRAULIC HOSE,0.75" ID x 104.00", SAE 100R17

3/4" x 104" fl

1шт.

24

87535033

HYDRAULIC HOSE

3/8" x 10" fl

2шт.

25

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

1шт.

26

87574449

HYDRAULIC HOSE,9.52 mm ID x 508.00 mm, SAE 100R17

1шт.

27

87504274

HYDRAULIC HOSE

3/8" x 104" fl

1шт.

28

1284303C1

HYDRAULIC HOSE

3/8" x 145" fl

1шт.

29

87535027

HYDRAULIC HOSE

3/8" x 35" fl

1шт.

30

87535077

HYDRAULIC HOSE

3/8" x 184" fl

2шт.

31

87570933

HYDRAULIC HOSE

3/8" x 175" fl

1шт.

32

87504289

HYDRAULIC HOSE

3/8" x 93" fl

1шт.

33

87504347

HYDRAULIC HOSE

3/8" x 122" fl

1шт.

34

87535029

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

35

87535028

HYDRAULIC HOSE

3/8" x 58" fl

1шт.

36

87535035

HYDRAULIC HOSE

3/8" x 64" fl

1шт.

37

87535075

HYDRAULIC HOSE

1/2" x 319" fl

2шт.

70' Only

1шт.

37

87535080

HYDRAULIC HOSE,12.7mm ID x 7366mm L, SAE 100R17

1/2" x 290" fl

2шт.

60' Only

1шт.

38

87535087

HYDRAULIC HOSE

3/8" x 96" fl

2шт.

70' Only

1шт.

38

87535086

HYDRAULIC HOSE

3/8" x 72" fl

2шт.

60' Only

1шт.

39

87504344

HYDRAULIC HOSE,9.53mm ID x 3048mm L, SAE 100R17

3/8" x 120" fl

4шт.

70' Only

1шт.

40

87535087

HYDRAULIC HOSE

3/8" x 96" fl

4шт.

60' Only

1шт.

41

87535074

HYDRAULIC HOSE

1/2" x 313" fl

2шт.

70' Only

1шт.

41

87535081

HYDRAULIC HOSE

1/2" x 296" fl

2шт.

60' Only

1шт.

42

87504468

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" mon 3000 psi without pins

1шт.

Refer to 02.030.1

1шт.

43

87420235

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4" x 24" 3000 psi no pins

2шт.

70' Only

1шт.

Refer to 02.050.1

1шт.

43

87505357

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 1/2" x 24" 3000 psi no pins

2шт.

60' Only

1шт.

Refer to 02.060.1

1шт.

44

87446221

HYDRAULIC HOSE

3/4" x 111" fl

1шт.

45

1032442

HYDRAULIC HOSE

3/8" x 168" fl

1шт.

46

87535031

HYDRAULIC HOSE

3/8" x 184" fl

1шт.

47

87502277

HYDRAULIC VALVE

selector single circuit, Shoemaker 8171

1шт.

48

87420159

VALVE

assy limit poppet shoemaker 8126

2шт.

48

87420157

SEAL KIT

shoemaker 5468

1шт.

Not Shown

1шт.

48

87420158

POPPET

without orifice shoemaker 5479

1шт.

Not Shown

1шт.

48

87504753

PLUG

adapter shoemaker 8103

1шт.

Not Shown

1шт.
