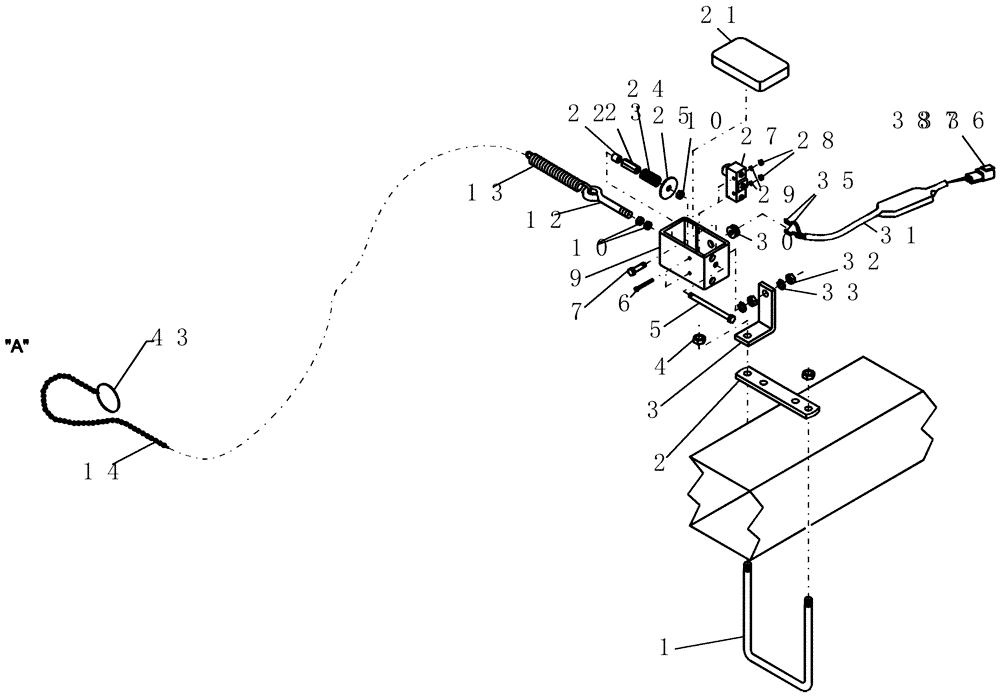

Запчасти Case IH ATX700 (08.100.1) - REMOTE SWITCH Related Equipment

0

86987949

SERVICE KIT

assembly, remote

1шт.

1

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

1шт.

2

GH-879

BRACKET

u-bolt mount

1шт.

3

GH-878

BRACKET

remote switch

1шт.

4

281010

LOCK NUT,7/8"-14, GC

2шт.

5

280317

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1шт.

6

8435

SCREW,#6 - 32 x 1.25"

mch #6-32" x 1 1/4" rh slt

2шт.

7

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

9

GH-877

HOUSING

remote switch, Years: -31-OCT-02

1шт.

9

86987949

SERVICE KIT

assembly, remote

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

12

432633A1

EYEBOLT

1/4" x 2 1/2" G2 bent

1шт.

13

8596

TENSION SPRING

.08" Wire x .75" OD x 9" long

1шт.

14

GH-890

CHAIN (AG)

#8 zinc plated 24" long

1шт.

21

CA-158

CAP

poly remote work switch, Years: -31-OCT-02

1шт.

21

86987825

CAP

poly remote switch 4-3/8" x 2-3/8", Start Year: 01-NOV-02

1шт.

22

8602

SPACER

.332" od x 1/4" id x 3/8" long

1шт.

23

8600

PIPE UNION NUT

coupling 1/4"-20 x 7/8", G2

1шт.

24

8603

COMPRESSION SPRING

.062" Wire x .72" OD x 1.312" long

1шт.

25

8601

WASHER

9/32" id x 1 1/4" x 1/16"

1шт.

27

8433

SWITCH

micro, remote

1шт.

28

231-14406

LOCK NUT,#6-32, GB

2шт.

29

80280471

LOCK WASHER

Ext, #6

2шт.

30

8635

GROMMET

5/8" od x 1/4" id x 3/16" pt

1шт.

31

87508158

HARNESS

Work Switch, Tow Behind 3.05 m

1шт.

31

51200014

HARNESS

work switch tow between 12.8 m

1шт.

32

9635082

NUT,5/16" - 18, Gr 5

2шт.

33

80681

LOCK WASHER,5/16"

2шт.

35

51200028

TERMINAL CONNECTOR,22 - 16 SAE

ring 22-16awg #10 red

2шт.

36

222136A1

ELEC CONNECTOR,Male, 2 Pin

plastic 2c receptacle

1шт.

37

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

2шт.

38

222848A1

ELEC CONNECTOR

lock 2c receptacle

1шт.

43

8434

SPECIAL RING

29/32"

1шт.
