(08.070.1) - STEALTH, EQUIPMENT

Запчасти Case IH ATX700 (08.070.1) - STEALTH, EQUIPMENT Related Equipment

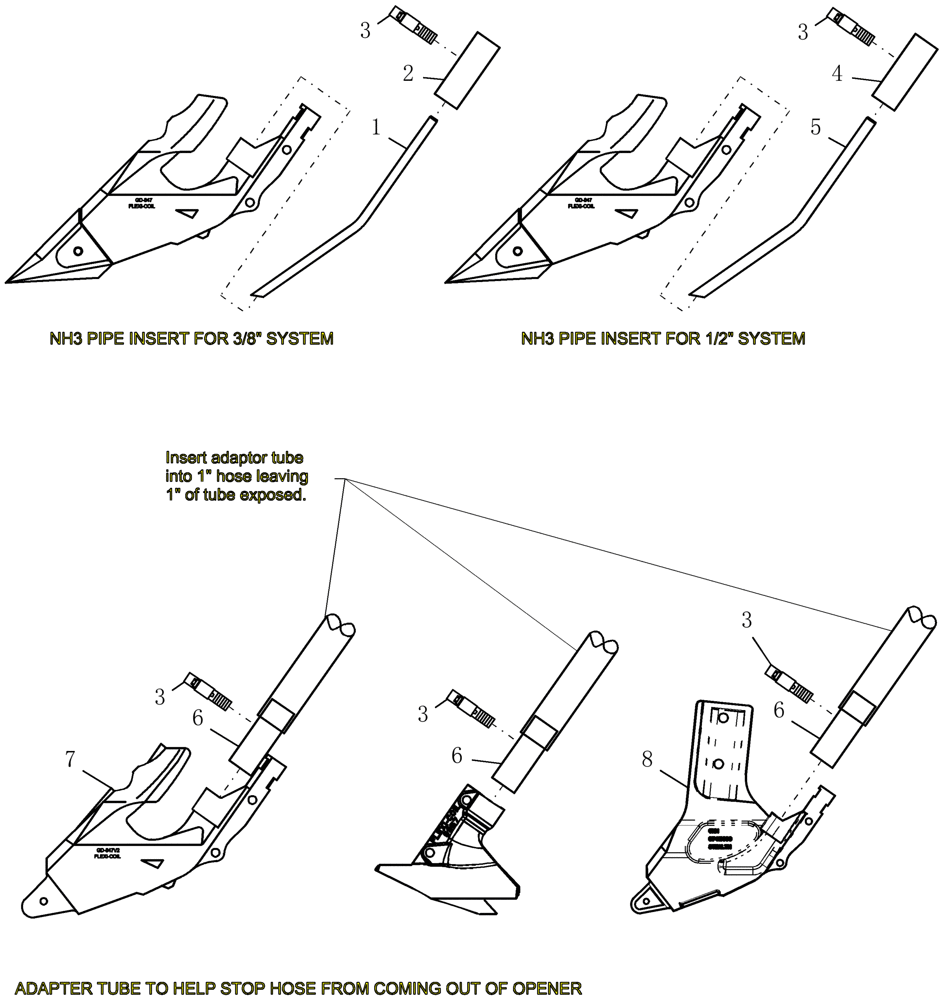

Схема запчастей Case IH ATX700 - (08.070.1) - STEALTH, EQUIPMENT Related Equipment
4
6
2
3
1
5
6
7
3
3
3
3
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

GD-820

PIPE

stealth 3/8" nh3

1шт.

2

CA-149

ADAPTER

anhydrous - 13/32" id x 1 1/4" od x 3 1/2"

1шт.

3

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.

4

CA-153

ADAPTER

anhydrous - 1/2" id x 1 1/4" od x 3 1/2"

1шт.

5

GD-823

PIPE

stealth 1/2" nh3

1шт.

6

GD-809

TUBE,0.902" ID x 1" OD

adapter

2шт.

7

GD-847V3

BODY

cast Stealth

1шт.

8

87418698

BOOT

cast 84 degree Stealth edge on

1шт.
