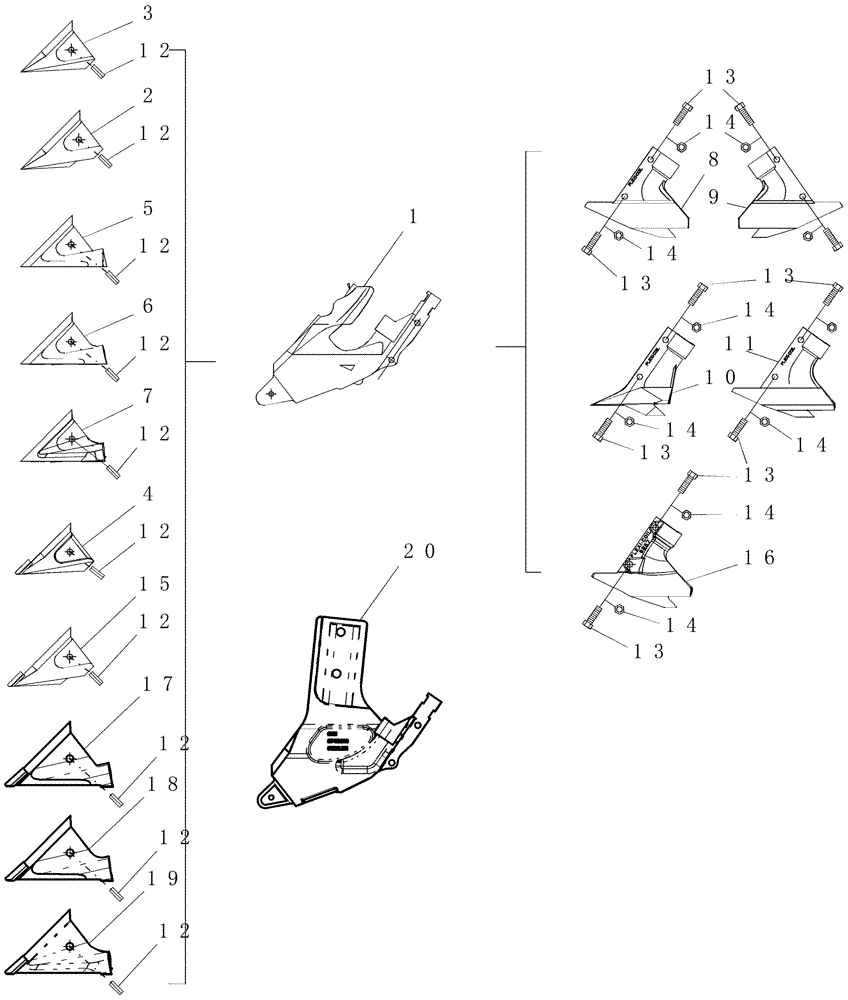

Запчасти Case IH ATX700 (08.060.1) - OPENER, SINGLE/DOUBLE/PAIRED ROW DOUBLE SHOOT Related Equipment

1

GD-847V3

BODY

cast Stealth

1шт.

2

87506287

TIP

cast gumbo Stealth

1шт.

3

87506283

TIP

cast standard Stealth

1шт.

4

87506293

TIP

cast standard Stealth carbide

1шт.

5

87506284

TIP

cast 3" spread Stealth

1шт.

6

87506285

TIP

cast 4" spread Stealth

1шт.

7

87506290

TIP

cast 5" spread Stealth

1шт.

8

87506407

ATTACHMENT

cast sideband LH Stealth

1шт.

8

22846

ATTACHMENT

cast sideband LH Stealth carbide

1шт.

9

87506409

ATTACHMENT

cast sideband RH Stealth

1шт.

9

22847

ATTACHMENT

cast sideband RH Stealth carbide

1шт.

10

87506291

ATTACHMENT

cast 3" paired row Stealth

1шт.

10

87506295

ATTACHMENT

cast 3" paired row Stealth carbide

1шт.

11

87506292

BOOT

stealth 3" paired row light soil

1шт.

12

8082V2

ROLL PIN,7.94mm OD x 25.4mm L

spiral 5/16" x 1" heavy duty

1шт.

13

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

14

21477

LOCK NUT

3/8"-16 2 way

1шт.

15

87505195

TIP

cast gumbo Stealth carbide

1шт.

16

87506261

ATTACHMENT

cast 4" paired row Stealth

1шт.

16

22848

ATTACHMENT

cast 4" paired row Stealth carbide

1шт.

16

87506294

ATTACHMENT

cast 5" paired row Stealth

1шт.

16

22849

ATTACHMENT

cast 5" paired row Stealth carbide

1шт.

17

87563693

TIP

cast 3" spread Stealth carbide

1шт.

18

87563694

TIP

cast 4" spread Stealth carbide

1шт.

19

87563695

TIP

cast 5" spread Stealth carbide

1шт.

20

87418698

BOOT

cast 84 degree Stealth edge on

1шт.

Used with side mount shank

1шт.
