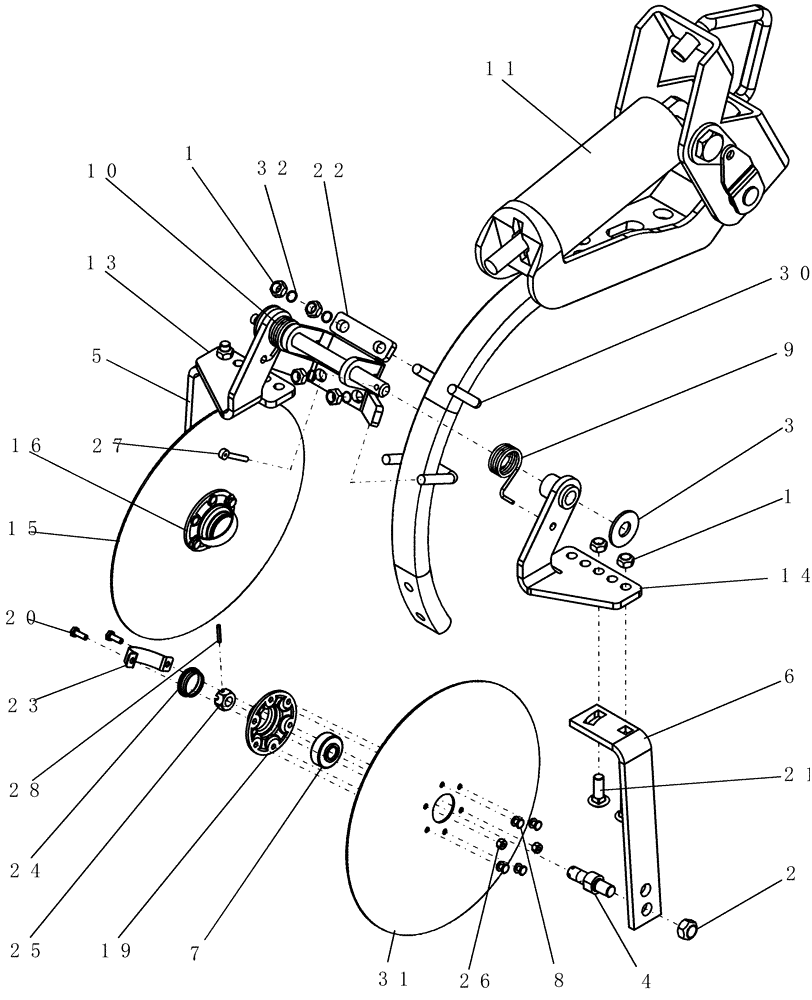

Запчасти Case IH ATX700 (08.052.1) - ASSEMBLY, DISC LEVELER ASN Y9S003001 Related Equipment

1

86992215

LOCK NUT,1/2"-13, GC

8шт.

2

2132

LOCK NUT,5/8"-11, GB

5/8"-11, GB

2шт.

3

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

4

87418838

SPINDLE

furrow closer

2шт.

5

84133067

ARM

disc leveler LH

1шт.

6

84133066

ARM

disc leveler RH

1шт.

7

87668158

BALL BEARING,16.05mm ID x 45.23mm OD x 18.67mm W

1.78 x .73 x .62 id

2шт.

8

NS

NOT SERVICED

RIVET knurled 1/4" x 9/16"

12шт.

9

84129181

TORSION SPRING

Disc Leveler RH

1шт.

10

87758737

TORSION SPRING

Disc Leveler LH

1шт.

11

87686090

TRIP

assembly, 550 lb

1шт.

12

84133035

BRACKET

mount

1шт.

Includes 87420246

1шт.

13

84129672

BRACKET

mount, LH

1шт.

14

84129673

BRACKET

mount, RH

1шт.

15

1030418

BEARING ASSY

& bearing assembly

2шт.

Includes 1030415, 1029653, and six 87668186

1шт.

16

1030415

FLANGED BEARING

Bearing

2шт.

Includes 90409C1 and 87668158

1шт.

19

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

2шт.

20

2020

BOLT,Hex, 1/4" - 20 x 0.75", Gr 5, Full Thd

Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

21

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

22

84133035

BRACKET

mount

4шт.

23

1029687

RETAINER

cap

1шт.

24

1030414

DUST CAP

1шт.

25

425-1210

SLOTTED NUT,Hex, 5/8"-11, G5

1шт.

26

2023

LOCK NUT,1/4"-20, GB

1/4"-20, GB

2шт.

27

87041

COTTER PIN,1/4" x 1 3/4"

2шт.

28

438-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

29

84133035

BRACKET

mount

1шт.

30

1029579

U-BOLT

us 1/2"-13 2 1/16" w 3" d, G5, 1" Thread

2шт.

31

1029653

DISC

14" Hardened

2шт.

32

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.
