Запчасти Case IH ATX700 (08.020.1) - RELEASE, 350 LB TRIPS AND SHANKS Related Equipment

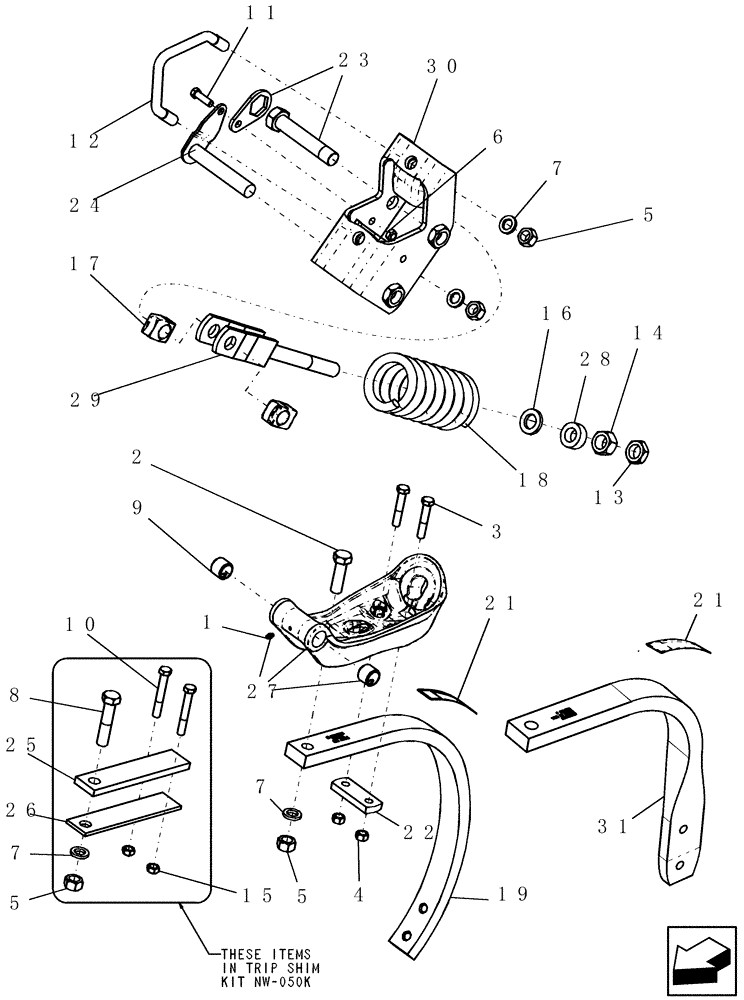

Схема запчастей Case IH ATX700 - (08.020.1) - RELEASE, 350 LB TRIPS AND SHANKS Related Equipment
25
27
31
2
24
22
28
30
16
17
5
23
6
8
3
9
15
26
21
7
18
13
29
11
12
7
4
10
1
5
5
21
14
19
7

Артикул

Название

Примечание

Количество

0

TP-351A

TRIP

assembly, 350 lb

1шт.

Does not include shank, shim kit or mounting hardware

1шт.

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

3

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

280954

NUT,3/4"-10, G5

4шт.

6

280980

NUT,7/16"-14, GC

1шт.

7

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

8

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

1шт.

9

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

10

86565315

BOLT,Hex, 1/2" - 20 x 3 1/2", Gr 8

2шт.

11

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

1шт.

12

5181

BOLT,V, 3/4" - 10 x 4", Gr 8

v 3/4"-10 x 4" GR8

1шт.

13

5956

JAM NUT

Jam 1"-14, G5

1шт.

14

7826

NUT

1"-14

1шт.

15

7959

LOCK NUT

1/2"-20, GC

2шт.

16

21897

WASHER

1 1/32" id 1 3/4" 1/4"

1шт.

17

87505493

SPACER

spring end

2шт.

18

87505486

COIL SPRING

trip 5/8" wire x 2 15/16" id 8 coils 10 7/8" fl

1шт.

19

87506241

SHANK

10-50º 1 x 2

1шт.

Includes NW-500.05

1шт.

19

87500716

SHANK

10-50º 1 x 2 left 3 1/8" offset

1шт.

Includes NW-500.05

1шт.

Not Shown

1шт.

19

87500715

SHANK

10-50º 1 x 2 right 3 1/8" offset

1шт.

Includes NW-500.05

1шт.

Not Shown

1шт.

21

NW-500.05

DECAL

compressed spring

2шт.

22

NW-582

PLATE

bolt 1/2" x 1 1/2" x 4"

1шт.

23

NW-551K

KIT

pin top replacement - 550 lb trip

1шт.

Includes NW-551, 7896

1шт.

24

NW-564K

KIT

pin, pivot 550 trip replacement parts

1шт.

Includes NW-564, 8422

1шт.

25

TC-352

SHIM

1/2"

1шт.

26

TC-353

SHIM

1/4"

1шт.

27

TP-351

HEAD

shank, assembly

1шт.

Includes 80714 and two 64601C1

1шт.

28

TP-352

SPACER

350 trip

1шт.

29

TP-356

FORK

tension, 350f trip

1шт.

30

TP-100

MOUNTING PLATE

channel f350 trip

1шт.

31

87418694

SHANK

side mount 550 trip

1шт.

100

NW-050K

SHIM KIT

550 lb trip

1шт.

Standard

1шт.

100

TP-950K

KIT

compressor, spring service tool

1шт.

Includes 5096

1шт.

Refer to 08.040.1

1шт.

Not Shown

1шт.

Выбрано товаров: 48
