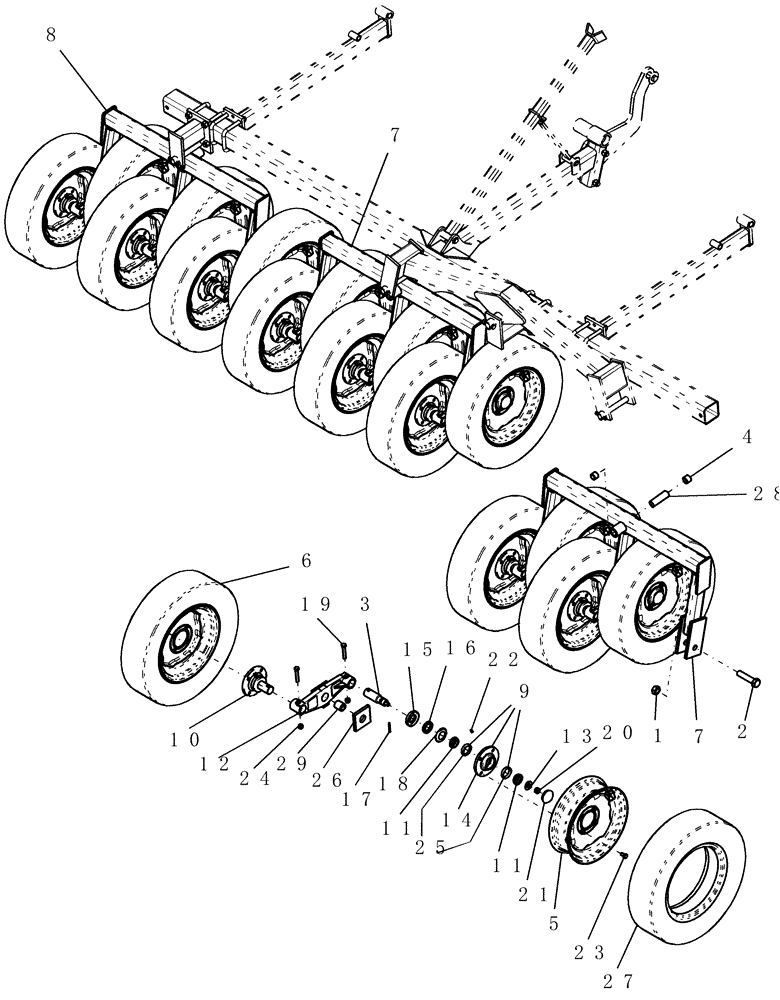

Запчасти Case IH ATX700 (06.120.1) - PACKER, INNER WING WALKING BEAM - 10" SPACING Packer Gang Assemblies and Frames

1

280286

NUT,1"-8, GB

9шт.

2

280443

BOLT,Hex, 1" - 8 x 4 1/2", Gr 5

9шт.

3

87417576

SPINDLE

1 5/8" x 6 1/16" 10" packer wheel

18шт.

4

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

10шт.

5

1030722

WHEEL ASSY

15x10 8h with 31x13.5 10p hf-1(high floatation tire)

18шт.

6

290720A1

WHEEL ASSY

mounted 6.50-15 4h with seal packer tire only, titan

18шт.

Includes 1030857

1шт.

7

87564202

FRAME

10-6w w beam double

2шт.

Includes 87420246, 87525921

1шт.

8

87503676

FRAME

packer walking beam 6 whl 10"

1шт.

Includes 87420246, 87525921

1шт.

9

87421563

HUB

assy packer

18шт.

10

87421645

HUB

spindle assembly packer 10"

18шт.

Includes 87417576, 87421563, 495-81044, 425-1310, 87421648, 87421649, 87421650, 432-1228, 224066C1, 36726, 80714

1шт.

Not available as an assembly

1шт.

11

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

36шт.

12

87421669

BEAM

walking packer

9шт.

Includes 87421668

1шт.

13

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

18шт.

14

87421563

HUB

assy packer

18шт.

15

87421650

SEAL RETAINER

packer

18шт.

16

87421648

SEAL

bearing

18шт.

17

87399

COTTER PIN,1/2 x 3 Bolt

18шт.

18

87421649

SEAL

counter face packer

18шт.

19

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

18шт.

20

87446

SLOTTED NUT,5/8"-18

18шт.

21

224066C1

HUB CAP

dust 2 21/64" od, Years: -01-MAR-10

18шт.

21

84239355

HUB CAP

Dust, Low Profile 2.331" Dia, Start Year: 01-MAR-10

18шт.

22

87414

LUBE NIPPLE,1/4" - 28

18шт.

23

1013597

WHEEL BOLT

wheel 1/2" -20 G5

1шт.

24

86992215

LOCK NUT,1/2"-13, GC

18шт.

25

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

36шт.

26

1026129

PAD

uhmw 3 31/32" x 3 31/32" 1 1/2" hole, white

18шт.

27

290719A1

TYRE/TIRE

6 1/2" x 15 4 pr i-1 1400lbs @40 psi, titan

18шт.

28

87525921

SPACER

packer bushing

3шт.

29

87421668

BUSHING,25.4mm ID x 38.1mm OD x 44.45mm L

tension 1 1/2" x 1" x 1 3/4"

1шт.

100

87421662

BEAM

assembly walking 10"

1шт.

Includes 87421669, 87421646, 87339, 9636698

1шт.

Not Shown

1шт.
