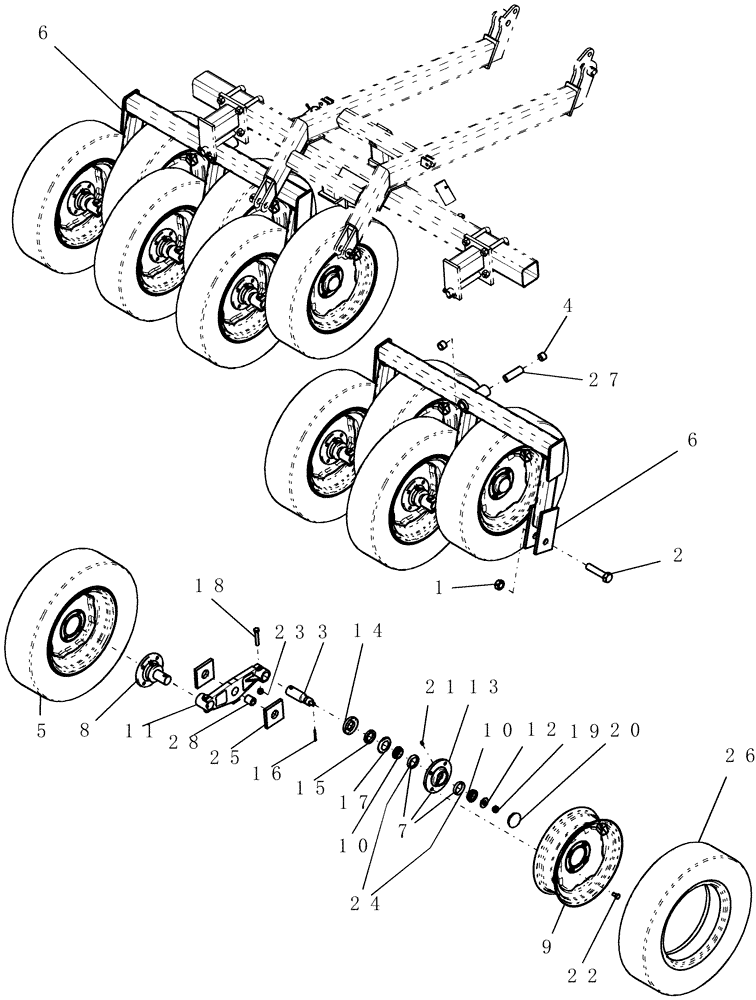

Запчасти Case IH ATX700 (06.100.1) - PACKER, CENTER WALKING BEAM - 10" SPACING Packer Gang Assemblies and Frames
№
Артикул
Название
Примечание
Количество
1
280286
NUT,1"-8, GB
6шт.
2
280443
BOLT,Hex, 1" - 8 x 4 1/2", Gr 5
6шт.
3
87417576
SPINDLE
1 5/8" x 6 1/16" 10" packer wheel
12шт.
4
87420246
BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L
Garmax MGL composite 1 1/4" x 1" x 1"
4шт.
5
290720A1
WHEEL ASSY
mounted 6.50-15 4h with seal packer tire only, titan
12шт.
Includes 1030857
1шт.
6
87503676
FRAME
packer walking beam 6 whl 10"
2шт.
Includes 87420246, 87525921
1шт.
7
87421563
HUB
assy packer
12шт.
8
87421645
HUB
spindle assembly packer 10"
12шт.
Includes 87417576, 87421563, 495-81044, 425-1310, 87421648, 87421649, 87421650, 432-1228, 224066C1, 36726, 80714
1шт.
Not available as an assembly
1шт.
9
1030857
WHEEL
15 x 4.5k 4-hole with vg
12шт.
10
36726
BEARING CONE,31.75mm ID x 16.76mm W
#LM67048
24шт.
11
87421669
BEAM
walking packer
6шт.
Includes 87421668
1шт.
12
495-81044
WASHER,0.78" ID x 1.75" OD x 0.12" Thk
12шт.
13
87421563
HUB
assy packer
12шт.
14
87421650
SEAL RETAINER
packer
12шт.
15
87421648
SEAL
bearing
12шт.
16
87399
COTTER PIN,1/2 x 3 Bolt
12шт.
17
87421649
SEAL
counter face packer
12шт.
18
87339
BOLT,Hex, 1/2" - 13 x 3", Gr 5
12шт.
19
87446
SLOTTED NUT,5/8"-18
12шт.
20
224066C1
HUB CAP
dust 2 21/64" od, Years: -01-MAR-10
12шт.
20
84239355
HUB CAP
Dust, Low Profile 2.331" Dia, Start Year: 01-MAR-10
12шт.
21
87414
LUBE NIPPLE,1/4" - 28
12шт.
23
86992215
LOCK NUT,1/2"-13, GC
12шт.
24
36723
BEARING CUP,59.16mm OD x 11.81mm W
#LM67010
24шт.
25
1026129
PAD
uhmw 3 31/32" x 3 31/32" 1 1/2" hole, white
12шт.
26
290719A1
TYRE/TIRE
6 1/2" x 15 4 pr i-1 1400lbs @40 psi, titan
12шт.
27
87525921
SPACER
packer bushing
3шт.
28
87421668
BUSHING,25.4mm ID x 38.1mm OD x 44.45mm L
tension 1 1/2" x 1" x 1 3/4"
1шт.
100
87421662
BEAM
assembly walking 10"
1шт.
Includes 87421669, 87421646, 87339, 9636698
1шт.
Not Shown
1шт.
Выбрано товаров: 37
