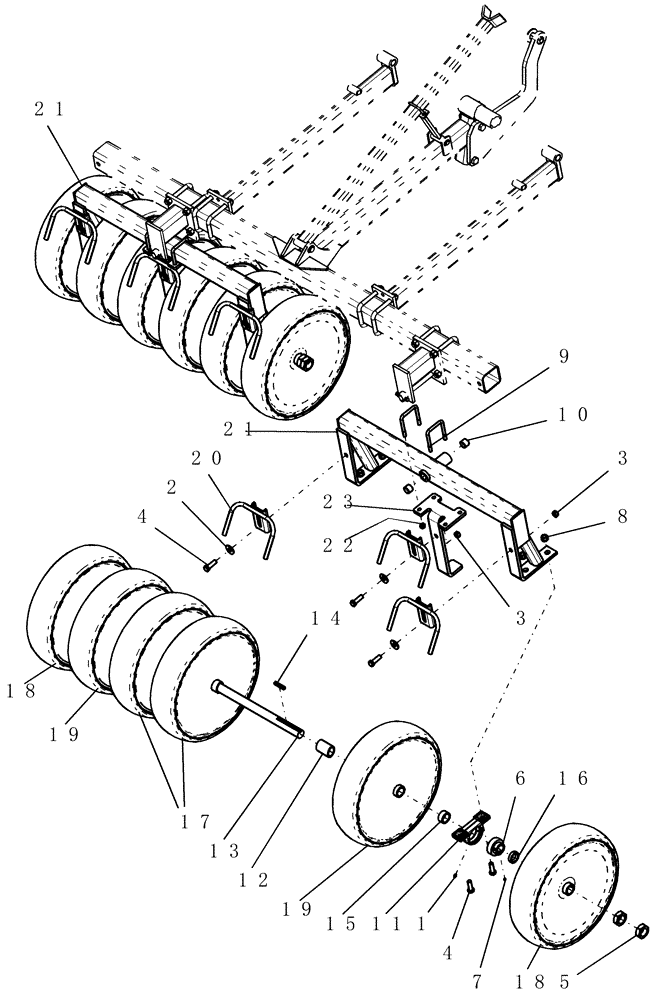

Запчасти Case IH ATX700 (06.080.1) - PACKER, OUTER WING - 10" SPACING Packer Gang Assemblies and Frames

1

87414

LUBE NIPPLE,1/4" - 28

9шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

6шт.

3

85700693

NUT,5/8" - 11, Gr C

6шт.

4

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

14шт.

5

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

8шт.

6

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

4шт.

7

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

4шт.

8

6839

FLANGE NUT

5/8"-11 serrated flange

8шт.

9

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

4шт.

10

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

8шт.

11

87502149

BEARING HOUSING

pillow block

4шт.

12

DC-440

SPACER

2 51/64" slant cut (//)

6шт.

13

DC-444

SHAFT

gang 56 1/2" long

2шт.

13

DR-578

SHAFT

gang 54 1/2" long

3шт.

Not Shown

1шт.

14

DR-575

KEY

3/8" sq x 2 1/4" long

4шт.

15

DR-921

SPACER

press wheel 29/32" ( !! )

4шт.

15

DS-309

SPACER

press wheel 1 1/2" ( !! )

4шт.

Not Shown

1шт.

16

DS-304

SPACER

press wheel 1/2" ( !! )

4шт.

16

DS-301

SPACER

press wheel 1 5/16" ( !! )

4шт.

Not Shown

1шт.

17

DS-352A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber standard ( \\ ) spool

4шт.

17

DR-926

WHEEL

press 3 1/2" wide standard ( // ) spool

4шт.

Not Shown

1шт.

17

DS-400

WHEEL,552.45mm OD x 114.3mm W

press 4 1/2" steel standard ( // ) spool

4шт.

Not Shown

1шт.

17

DR-952A

WHEEL

press 3" rubber standard ( \\ ) spool

4шт.

Not Shown

1шт.

17

DR-956A

WHEEL,508mm OD x 101.6mm W

press 4" rubber standard ( \\ ) spool

4шт.

Not Shown

1шт.

18

DS-353A

WHEEL,139.7mm OD

press 5 1/2" rubber end ( !! ) spool

4шт.

18

DR-912

WHEEL,538.16mm OD x 88.9mm W

press 3 1/2" wide end ( !! ) spool

4шт.

Not Shown

1шт.

18

DS-401

WHEEL

press 4 1/2" steel end ( !! ) spool

4шт.

Not Shown

1шт.

18

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

4шт.

Not Shown

1шт.

18

DR-957A

WHEEL,508mm OD x 101.6mm W

press 4" rubber end ( !! ) spool

4шт.

Not Shown

1шт.

19

DS-354A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber bearing ( \! ) spool

4шт.

20

87504036

MUD CLEANER

10" double

6шт.

21

87567179

FRAME

packer gang front 6 wheel 10"

2шт.

22

86992215

LOCK NUT,1/2"-13, GC

8шт.

23

87504035

BRACKET

rock stripper

2шт.

100

87418932

WHEEL ASSY

gang press 10" space 6" x 3 1/2"

3шт.

Not Shown

1шт.

100

87418933

WHEEL ASSY

press gang 10" space 6" x 4 1/2"

3шт.

Not Shown

1шт.

100

87418934

WHEEL ASSY

press gang 10" space 6" x 3"

3шт.

Not Shown

1шт.

100

87418935

WHEEL ASSY

press gang 10" space 6" x 4"

3шт.

Not Shown

1шт.
