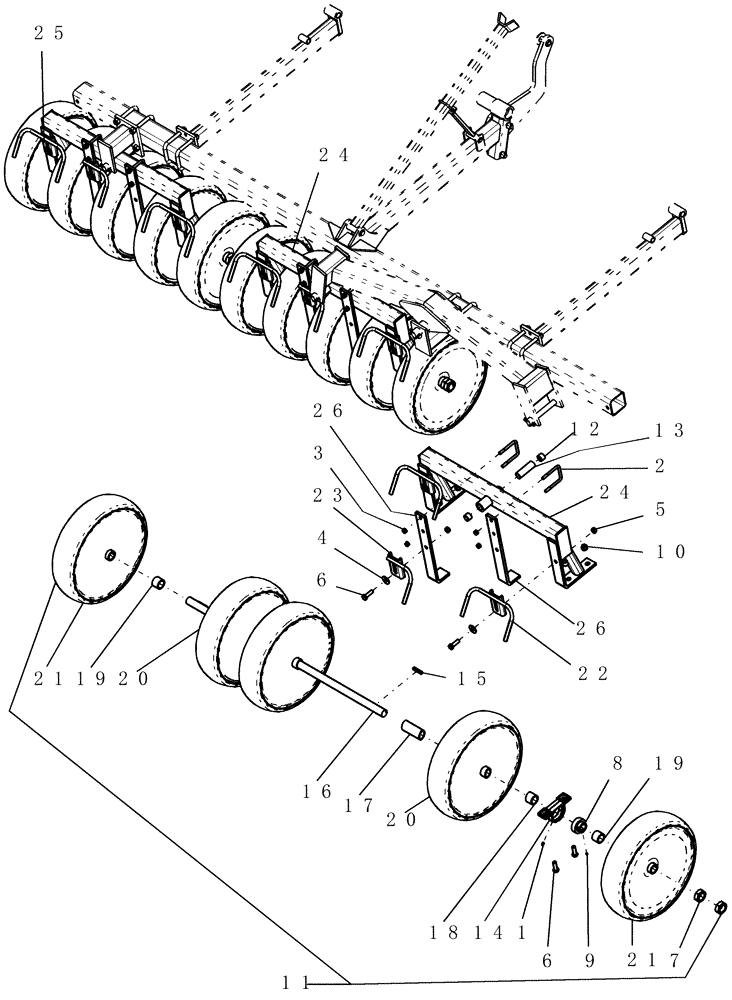

Запчасти Case IH ATX700 (06.060.1) - PACKER, INNER WING - 12" SPACING Packer Gang Assemblies and Frames

1

87414

LUBE NIPPLE,1/4" - 28

13шт.

2

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

6шт.

3

86992215

LOCK NUT,1/2"-13, GC

12шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

9шт.

5

85700693

NUT,5/8" - 11, Gr C

9шт.

6

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

21шт.

7

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

12шт.

8

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

6шт.

9

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

6шт.

10

6839

FLANGE NUT

5/8"-11 serrated flange

12шт.

11

87418940

WHEEL ASSY

press gang 12" space 5" x 5 1/2"

3шт.

Includes 6368, 6329, DR-578, DR-575, DR-913, DS-305, DS-305, DS-352A, DS-353A

1шт.

12

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

10шт.

13

87525921

SPACER

packer bushing

3шт.

14

87502149

BEARING HOUSING

pillow block

6шт.

15

DR-575

KEY

3/8" sq x 2 1/4" long

6шт.

16

DR-578

SHAFT

gang 54 1/2" long

3шт.

16

DR-525

SHAFT

gang 51 7/8" long

3шт.

Not Shown

1шт.

17

DR-913

SPACER

press wheel 4 51/64" ( \\ )

6шт.

18

DS-305

SPACER

press wheel 1 21/32" ( \! )

6шт.

19

DS-309

SPACER

press wheel 1 1/2" ( !! )

6шт.

19

DS-306

SPACER

press wheel 2 5/16" ( !! )

6шт.

Not Shown

1шт.

20

DS-352A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber standard ( \\ ) spool

9шт.

20

DR-926

WHEEL

press 3 1/2" wide standard ( // ) spool

9шт.

Not Shown

1шт.

20

DS-400

WHEEL,552.45mm OD x 114.3mm W

press 4 1/2" steel standard ( // ) spool

9шт.

Not Shown

1шт.

20

DR-952A

WHEEL

press 3" rubber standard ( \\ ) spool

9шт.

Not Shown

1шт.

20

DR-956A

WHEEL,508mm OD x 101.6mm W

press 4" rubber standard ( \\ ) spool

9шт.

Not Shown

1шт.

21

DS-353A

WHEEL,139.7mm OD

press 5 1/2" rubber end ( !! ) spool

6шт.

21

DR-912

WHEEL,538.16mm OD x 88.9mm W

press 3 1/2" wide end ( !! ) spool

6шт.

Not Shown

1шт.

21

DS-401

WHEEL

press 4 1/2" steel end ( !! ) spool

6шт.

Not Shown

1шт.

21

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

6шт.

Not Shown

1шт.

21

DR-957A

WHEEL,508mm OD x 101.6mm W

press 4" rubber end ( !! ) spool

6шт.

Not Shown

1шт.

22

87504037

MUD CLEANER

12" double

6шт.

23

87504057

MUD CLEANER

12" single

3шт.

24

87567184

FRAME

packer gang 5-12" back

2шт.

Includes 87420246, 87525921

1шт.

25

87567183

FRAME

packer gang 5-12" front

1шт.

Includes 87420246, 87525921

1шт.

26

87504034

BRACKET

rock stripper

6шт.

100

87418937

WHEEL ASSY

press gang 12" space 5" x 3 1/2"

1шт.

Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913

1шт.

Not Shown

1шт.

100

87418938

WHEEL ASSY

press gang 12" space 5" x 3"

1шт.

Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913

1шт.

Not Shown

1шт.

100

87418939

WHEEL ASSY

press gang 12" space 5" x 4"

1шт.

Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913

1шт.

Not Shown

1шт.

100

87418941

WHEEL ASSY

press gang 12" space 5" x 4 1/2"

1шт.

Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913

1шт.

Not Shown

1шт.
