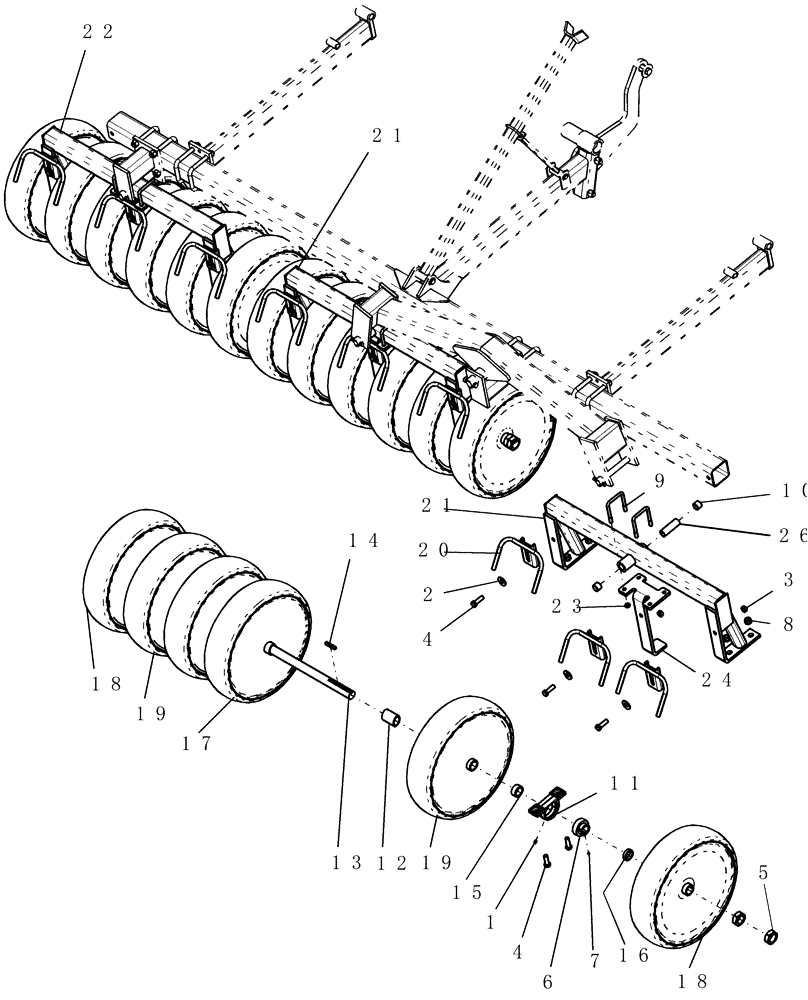

Запчасти Case IH ATX700 (06.050.1) - PACKER, INNER WING - 10" SPACING Packer Gang Assemblies and Frames
№
Артикул
Название
Примечание
Количество
1
87414
LUBE NIPPLE,1/4" - 28
13шт.
2
80299
WASHER,0.69" ID x 1.75" OD x 0.13" Thk
9шт.
3
85700693
NUT,5/8" - 11, Gr C
9шт.
4
86505999
BOLT,Hex, 5/8" - 11 x 2", Gr 5
21шт.
5
6368
JAM NUT,1-1/2"-12, Cl 5
jam 1 1/2"-12
12шт.
6
6613
BALL BEARING,38.1mm ID x 80mm OD x 24mm W
1 1/2" bore
6шт.
7
6667
SET SCREW
1/4"-28 x 1/4" hl hex skt blk cp
6шт.
8
6839
FLANGE NUT
5/8"-11 serrated flange
12шт.
9
1404
U-BOLT
us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2
6шт.
10
87420246
BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L
Garmax MGL composite 1 1/4" x 1" x 1"
10шт.
11
87502149
BEARING HOUSING
pillow block
6шт.
12
DC-440
SPACER
2 51/64" slant cut (//)
9шт.
13
DC-444
SHAFT
gang 56 1/2" long
3шт.
13
DR-578
SHAFT
gang 54 1/2" long
3шт.
Not Shown
1шт.
14
DR-575
KEY
3/8" sq x 2 1/4" long
6шт.
15
DR-921
SPACER
press wheel 29/32" ( !! )
6шт.
15
DS-309
SPACER
press wheel 1 1/2" ( !! )
6шт.
Not Shown
1шт.
16
DS-304
SPACER
press wheel 1/2" ( !! )
6шт.
16
DS-301
SPACER
press wheel 1 5/16" ( !! )
6шт.
Not Shown
1шт.
17
DS-352A
WHEEL,508mm OD x 139.7mm W
press 5 1/2" rubber standard ( \\ ) spool
6шт.
17
DR-926
WHEEL
press 3 1/2" wide standard ( // ) spool
6шт.
Not Shown
1шт.
17
DS-400
WHEEL,552.45mm OD x 114.3mm W
press 4 1/2" steel standard ( // ) spool
6шт.
Not Shown
1шт.
17
DR-952A
WHEEL
press 3" rubber standard ( \\ ) spool
6шт.
Not Shown
1шт.
17
DR-956A
WHEEL,508mm OD x 101.6mm W
press 4" rubber standard ( \\ ) spool
6шт.
Not Shown
1шт.
18
DS-353A
WHEEL,139.7mm OD
press 5 1/2" rubber end ( !! ) spool
6шт.
18
DR-912
WHEEL,538.16mm OD x 88.9mm W
press 3 1/2" wide end ( !! ) spool
6шт.
Not Shown
1шт.
18
DS-401
WHEEL
press 4 1/2" steel end ( !! ) spool
6шт.
Not Shown
1шт.
18
DR-954A
WHEEL
press 3" rubber end ( !! ) spool
6шт.
Not Shown
1шт.
18
DR-957A
WHEEL,508mm OD x 101.6mm W
press 4" rubber end ( !! ) spool
6шт.
Not Shown
1шт.
19
DS-354A
WHEEL,508mm OD x 139.7mm W
press 5 1/2" rubber bearing ( \! ) spool
6шт.
19
DR-918
WHEEL
press 3 1/2" wide bearing ( /! ) spool
6шт.
Not Shown
1шт.
19
DS-403
WHEEL
press 4 1/2" steel bearing ( /! ) spool
6шт.
Not Shown
1шт.
19
DR-953A
WHEEL,508mm OD x 76.2mm W
press 3" rubber bearing ( \! ) spool
6шт.
Not Shown
1шт.
19
DR-958A
WHEEL
press 4" rubber bearing ( \! ) spool
6шт.
Not Shown
1шт.
20
87504036
MUD CLEANER
10" double
9шт.
21
87567180
FRAME
packer gang 10" back
2шт.
Includes 87420246, 87525921
1шт.
22
87567179
FRAME
packer gang front 6 wheel 10"
1шт.
Includes 87420246, 87525921
1шт.
23
86992215
LOCK NUT,1/2"-13, GC
12шт.
24
87504035
BRACKET
rock stripper
3шт.
26
87525921
SPACER
packer bushing
3шт.
100
87418932
WHEEL ASSY
gang press 10" space 6" x 3 1/2"
3шт.
Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913
1шт.
Not Shown
1шт.
100
87418933
WHEEL ASSY
press gang 10" space 6" x 4 1/2"
3шт.
Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913
1шт.
Not Shown
1шт.
100
87418934
WHEEL ASSY
press gang 10" space 6" x 3"
3шт.
Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913
1шт.
Not Shown
1шт.
100
87418935
WHEEL ASSY
press gang 10" space 6" x 4"
3шт.
Includes DR-578, DR-575, 6397, 6329, DS-305, DR-913
1шт.
Not Shown
1шт.
Выбрано товаров: 69
