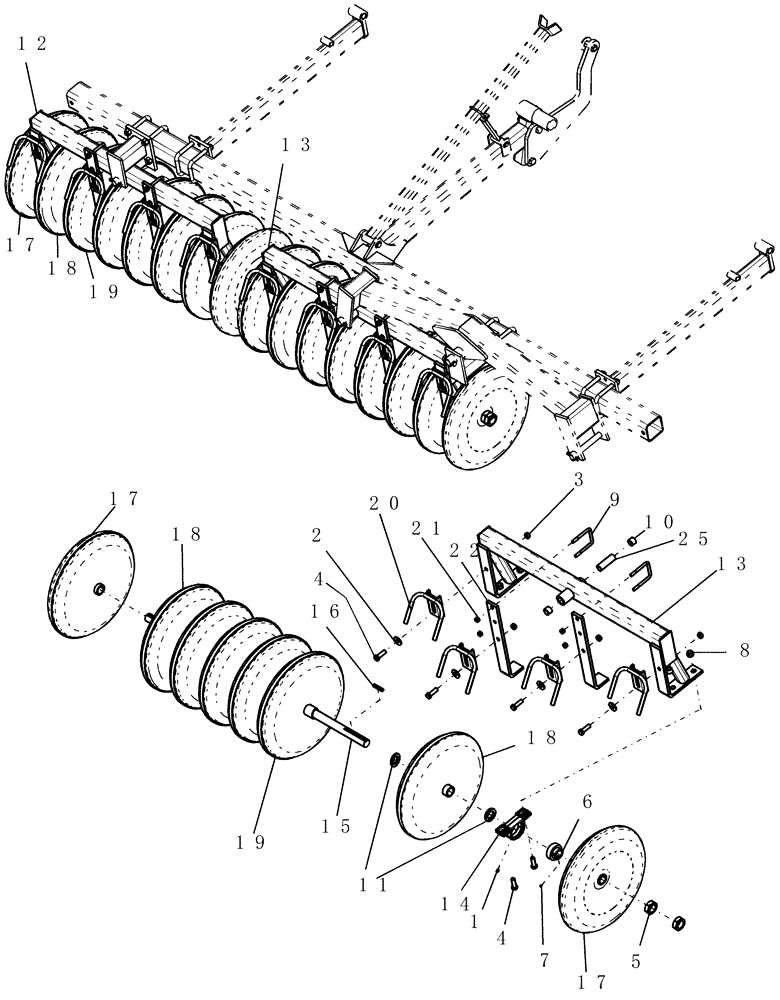

Запчасти Case IH ATX700 (06.040.1) - PACKER, INNER WING - 7.5" SPACING Packer Gang Assemblies and Frames

1

87414

LUBE NIPPLE,1/4" - 28

13шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

12шт.

3

85700693

NUT,5/8" - 11, Gr C

12шт.

4

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

24шт.

5

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

12шт.

6

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

6шт.

7

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

6шт.

8

6839

FLANGE NUT

5/8"-11 serrated flange

12шт.

9

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

6шт.

10

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

10шт.

11

87504380

WASHER

40 id 63 1/2" od 8 mm znd

21шт.

12

87567175

FRAME

packer gang 190 front 8 whl 7 1/2"

1шт.

Includes 87420246, 87525921

1шт.

13

87567176

FRAME

packer gang 190 back

2шт.

Includes 87420246, 87525921

1шт.

14

87502149

BEARING HOUSING

pillow block

6шт.

15

DC-444

SHAFT

gang 56 1/2" long

3шт.

16

DR-575

KEY

3/8" sq x 2 1/4" long

6шт.

17

DR-912

WHEEL,538.16mm OD x 88.9mm W

press 3 1/2" wide end ( !! ) spool

6шт.

17

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

4шт.

Not Shown

1шт.

18

DR-918

WHEEL

press 3 1/2" wide bearing ( /! ) spool

6шт.

18

DR-953A

WHEEL,508mm OD x 76.2mm W

press 3" rubber bearing ( \! ) spool

4шт.

Not Shown

1шт.

19

DR-926

WHEEL

press 3 1/2" wide standard ( // ) spool

12шт.

20

87504038

MUD CLEANER

7 1/2" double

12шт.

21

86992215

LOCK NUT,1/2"-13, GC

12шт.

22

87504034

BRACKET

rock stripper

6шт.

25

87525921

SPACER

packer bushing

3шт.
