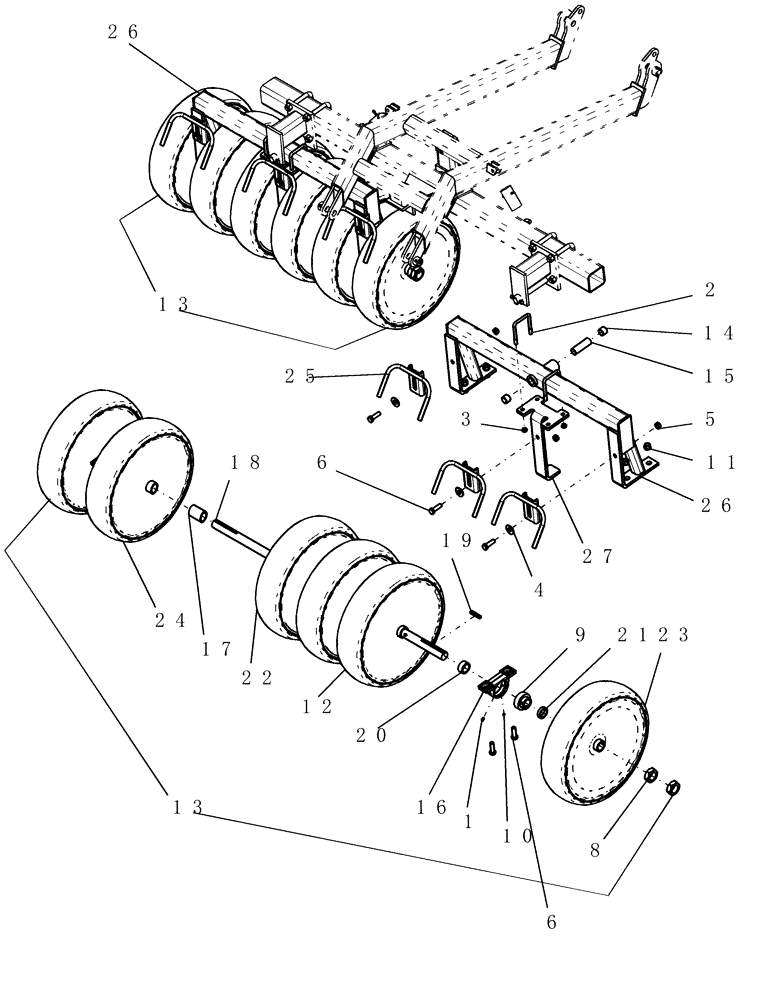

Запчасти Case IH ATX700 (06.020.1) - PACKER, CENTER - 10" SPACING Packer Gang Assemblies and Frames
№
Артикул
Название
Примечание
Количество
1
87414
LUBE NIPPLE,1/4" - 28
8шт.
2
1404
U-BOLT
us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2
4шт.
3
86992215
LOCK NUT,1/2"-13, GC
10шт.
4
80299
WASHER,0.69" ID x 1.75" OD x 0.13" Thk
6шт.
5
85700693
NUT,5/8" - 11, Gr C
6шт.
6
86505999
BOLT,Hex, 5/8" - 11 x 2", Gr 5
14шт.
8
6368
JAM NUT,1-1/2"-12, Cl 5
jam 1 1/2"-12
8шт.
9
6613
BALL BEARING,38.1mm ID x 80mm OD x 24mm W
1 1/2" bore
4шт.
10
6667
SET SCREW
1/4"-28 x 1/4" hl hex skt blk cp
4шт.
11
6839
FLANGE NUT
5/8"-11 serrated flange
8шт.
12
9407
TYRE/TIRE
press wheel - 5 1/2" x 22"
12шт.
13
87418936
WHEEL ASSY
press gang 10" space 6" x 5 1/2"
2шт.
Includes DC-444, DR-575, 6397, 6329, DC-440, DR-921, DS-304, 9407
1шт.
14
87420246
BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L
Garmax MGL composite 1 1/4" x 1" x 1"
4шт.
15
87525921
SPACER
packer bushing
2шт.
16
87502149
BEARING HOUSING
pillow block
4шт.
17
DC-440
SPACER
2 51/64" slant cut (//)
6шт.
18
DC-444
SHAFT
gang 56 1/2" long
2шт.
18
DR-578
SHAFT
gang 54 1/2" long
2шт.
Not Shown
1шт.
18
DR-577
SHAFT
gang 47 1/8" long
2шт.
Not Shown
1шт.
19
DR-575
KEY
3/8" sq x 2 1/4" long
4шт.
20
DR-921
SPACER
press wheel 29/32" ( !! )
4шт.
20
DS-301
SPACER
press wheel 1 5/16" ( !! )
4шт.
Not Shown
1шт.
21
DS-304
SPACER
press wheel 1/2" ( !! )
4шт.
21
DS-309
SPACER
press wheel 1 1/2" ( !! )
4шт.
Not Shown
1шт.
22
DS-352A
WHEEL,508mm OD x 139.7mm W
press 5 1/2" rubber standard ( \\ ) spool
4шт.
22
DR-956A
WHEEL,508mm OD x 101.6mm W
press 4" rubber standard ( \\ ) spool
4шт.
Not Shown
1шт.
22
DR-952A
WHEEL
press 3" rubber standard ( \\ ) spool
4шт.
Not Shown
1шт.
22
DS-400
WHEEL,552.45mm OD x 114.3mm W
press 4 1/2" steel standard ( // ) spool
4шт.
Not Shown
1шт.
22
DR-926
WHEEL
press 3 1/2" wide standard ( // ) spool
4шт.
Not Shown
1шт.
23
DS-353A
WHEEL,139.7mm OD
press 5 1/2" rubber end ( !! ) spool
4шт.
23
DR-957A
WHEEL,508mm OD x 101.6mm W
press 4" rubber end ( !! ) spool
4шт.
Not Shown
1шт.
23
DR-954A
WHEEL
press 3" rubber end ( !! ) spool
4шт.
Not Shown
1шт.
23
DS-401
WHEEL
press 4 1/2" steel end ( !! ) spool
4шт.
Not Shown
1шт.
24
DS-354A
WHEEL,508mm OD x 139.7mm W
press 5 1/2" rubber bearing ( \! ) spool
4шт.
24
DR-958A
WHEEL
press 4" rubber bearing ( \! ) spool
4шт.
Not Shown
1шт.
24
DR-953A
WHEEL,508mm OD x 76.2mm W
press 3" rubber bearing ( \! ) spool
4шт.
Not Shown
1шт.
24
DS-403
WHEEL
press 4 1/2" steel bearing ( /! ) spool
4шт.
Not Shown
1шт.
24
DR-918
WHEEL
press 3 1/2" wide bearing ( /! ) spool
4шт.
Not Shown
1шт.
25
87504036
MUD CLEANER
10" double
6шт.
26
87567179
FRAME
packer gang front 6 wheel 10"
2шт.
Includes 87420246, 87525921
1шт.
27
87504035
BRACKET
rock stripper
2шт.
Выбрано товаров: 58
