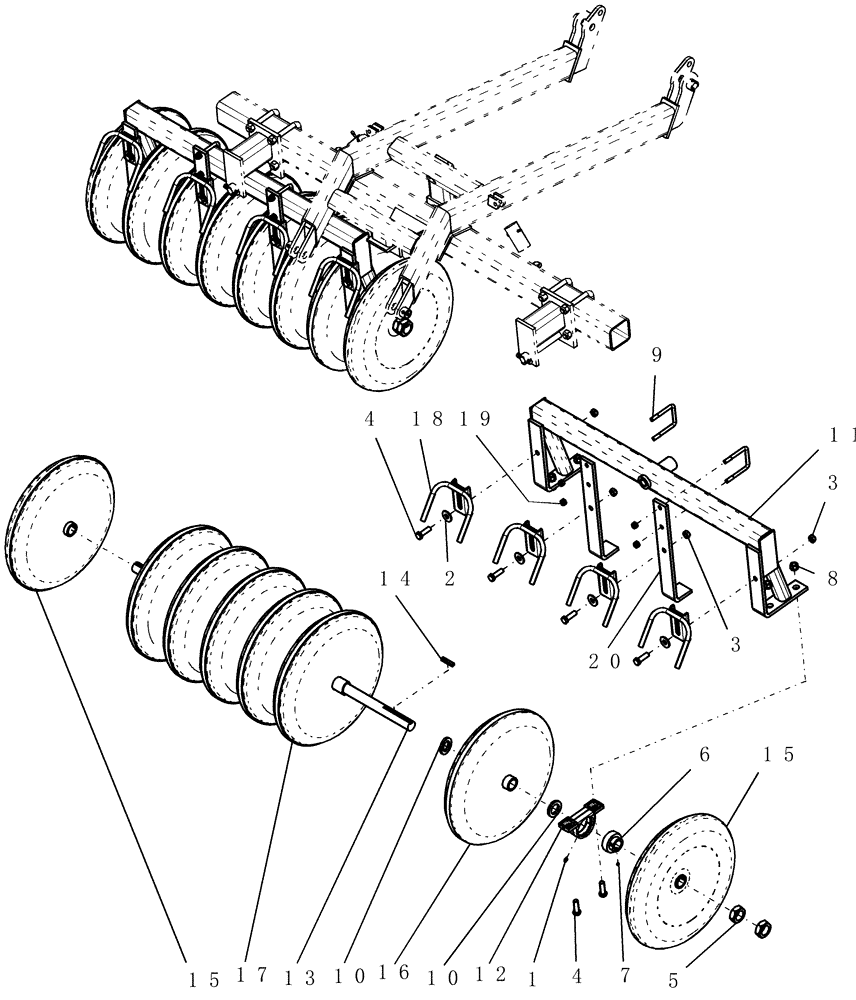

Запчасти Case IH ATX700 (06.010.1) - PACKER, CENTER - 7.5" SPACING Packer Gang Assemblies and Frames

1

87414

LUBE NIPPLE,1/4" - 28

8шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

3

85700693

NUT,5/8" - 11, Gr C

8шт.

4

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

5

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

8шт.

6

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

4шт.

7

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

4шт.

8

6839

FLANGE NUT

5/8"-11 serrated flange

8шт.

9

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

4шт.

10

87504380

WASHER

40 id 63 1/2" od 8 mm znd

14шт.

11

87567175

FRAME

packer gang 190 front 8 whl 7 1/2"

2шт.

Includes 87420246, 87525921

1шт.

12

87502149

BEARING HOUSING

pillow block

4шт.

13

DC-444

SHAFT

gang 56 1/2" long

2шт.

14

DR-575

KEY

3/8" sq x 2 1/4" long

4шт.

15

DR-912

WHEEL,538.16mm OD x 88.9mm W

press 3 1/2" wide end ( !! ) spool

4шт.

15

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

4шт.

Not Shown

1шт.

16

DR-918

WHEEL

press 3 1/2" wide bearing ( /! ) spool

4шт.

16

DR-953A

WHEEL,508mm OD x 76.2mm W

press 3" rubber bearing ( \! ) spool

4шт.

Not Shown

1шт.

17

DR-926

WHEEL

press 3 1/2" wide standard ( // ) spool

8шт.

17

DR-952A

WHEEL

press 3" rubber standard ( \\ ) spool

8шт.

Not Shown

1шт.

18

87504038

MUD CLEANER

7 1/2" double

8шт.

19

86992215

LOCK NUT,1/2"-13, GC

8шт.

20

87504034

BRACKET

rock stripper

4шт.
