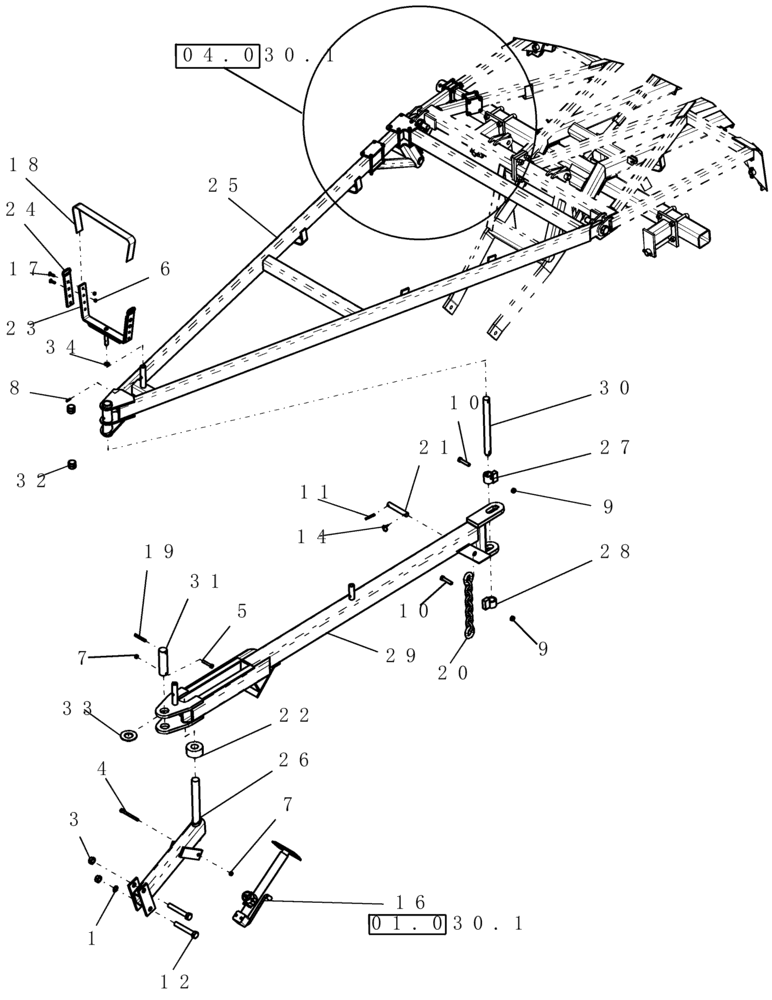

Запчасти Case IH ATX700 (04.022.1) - HITCH, REAR AIR CART ASN Y8S003251 Options

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

1шт.

3

280286

NUT,1"-8, GB

4шт.

4

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

4шт.

5

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

6

88902

NUT,3/8"-16

12шт.

7

86992215

LOCK NUT,1/2"-13, GC

10шт.

8

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

9

85700693

NUT,5/8" - 11, Gr C

2шт.

10

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

11

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

1шт.

12

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

4шт.

14

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

1шт.

16

7972

JACK

3000 lb x 15" long

1шт.

Refer to 01.030.1

1шт.

17

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

18

9283

STRAP

2" x 78"

1шт.

19

432606A1

ROLL PIN

1/2" x 3 1/2"

1шт.

20

87619912

CHAIN

safety, 40,400 lb

1шт.

21

87420138

PIN

25.4 x 136 ul, 2 holes

1шт.

22

87502246

BUSHING

air cart steering

1шт.

23

GH-951

STRAP

hose support

1шт.

24

GH-952

STRAP

hose support extension

2шт.

25

87504090

HITCH

70' tow behind

1шт.

70' Only

1шт.

25

87504091

HITCH

60' tow behind

1шт.

60' Only

1шт.

26

87504092

ARM

air cart steering

1шт.

27

87505049

LOCK PIN

Top

1шт.

28

87505047

LOCK PIN

bottom

1шт.

29

87504093

HITCH

tow behind air cart

1шт.

30

87420139

PIN,38.1mm OD x 439mm L

38.1 x 378 ul

1шт.

31

87505300

PIN

50.8 x 152 ul 2 holes

1шт.

32

7825

GROOVED BUSHING

tension 1 3/4" x 1 1/2" x 1 1/2" long

2шт.

33

DR-494

BUSHING

support beam

1шт.

34

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

1шт.
