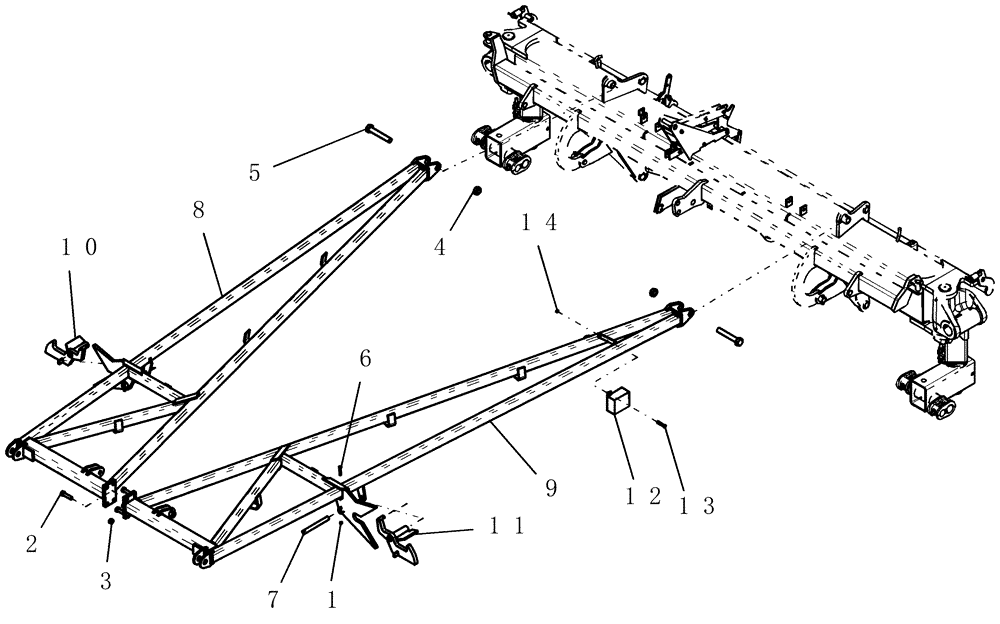

Запчасти Case IH ATX700 (04.010.1) - HITCH, COMMON Options

1

88902

NUT,3/8"-16

6шт.

2

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

3

280375

NUT,3/4"-10, GC

6шт.

4

86609684

NUT,1 1/4"-7, GB

2шт.

5

87552232

BOLT,Hex, 1 1/4" - 7 x 7 1/2", Gr 5

2шт.

6

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

2шт.

7

87420294

PIN

25.4 x 222 ul

2шт.

8

87504049

HITCH

air cart left

1шт.

9

87504046

HITCH

air cart right

1шт.

10

87504059

LATCH HOOK

boom transport LH

1шт.

11

87504058

LATCH HOOK

boom transport RH

1шт.

12

87659843

MODULE

position sensing, Start Year: 01-JUL-08

1шт.

This ECU does not contain any application software and **MUST** be programmed before use.

1шт.

If drop shipping, make arrangements for programming.

1шт.

12

87399242

MODULE

position sensing, Years: -01-JUL-08

1шт.

If this ECU will be used in an ISOBUS system, programming is required before use, make arrangements for programming if drop shipping.

1шт.

This ECU does not contain ISOBUS software and **MAY** have to be programmed before use.

1шт.

If this ECU will be used in an AgriCheck system, no programming is required.

1шт.

13

470-11016

SCREW,Pan HD, #10 - 24 x 1"

2шт.

14

86632551

NUT,#10-24, GB

2шт.
