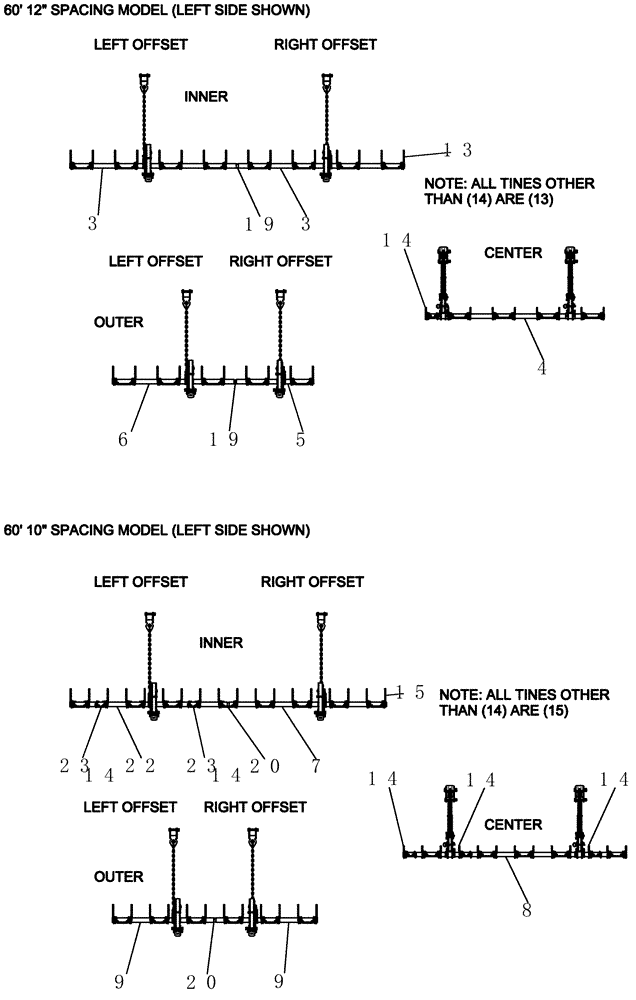

Запчасти Case IH ATX700 (01.290.1) - HARROW, LAYOUT - 18.3M [60] 10" AND 12" SPACING (12) - FRAME

1

87520215

TUBE

harrow 2408.4 mm long

1шт.

3

87520214

TUBE

harrow 2281 mm long

2шт.

4

87523788

TUBE,53.9 mm ID x 60.3 mm OD x 2460 mm L

harrow 12 center

1шт.

5

87520212

TUBE

harrow 1061.8 mm long

1шт.

6

87520213

TUBE

harrow 1671.4 mm long

1шт.

7

87520211

TUBE

harrow 2160 mm long

2шт.

8

87521836

TUBE,53.9 mm ID x 3069 mm L

harrow 10 center

1шт.

9

87520210

TUBE

harrow 1392.5 mm long

2шт.

13

87500630

TINE

14 mm x 660 mm x 305 mm w dbl

30шт.

14

87519568

TINE

14 x 660 x 191 mm w single LH

4шт.

15

87500800

TINE

14 x 660 x 254 mm w dbl

35шт.

19

87505024

SUPPORT TUBE,712 mm L

support 12"

2шт.

20

87505031

SUPPORT TUBE,581 mm L

support 10"

2шт.

22

84273590

TUBE,2160 mm L

Harrow, 3D, 2S, 1SPL, 10"

2шт.

23

84260732

TINE

14 x 660 x 191 mm w single RH

2шт.
