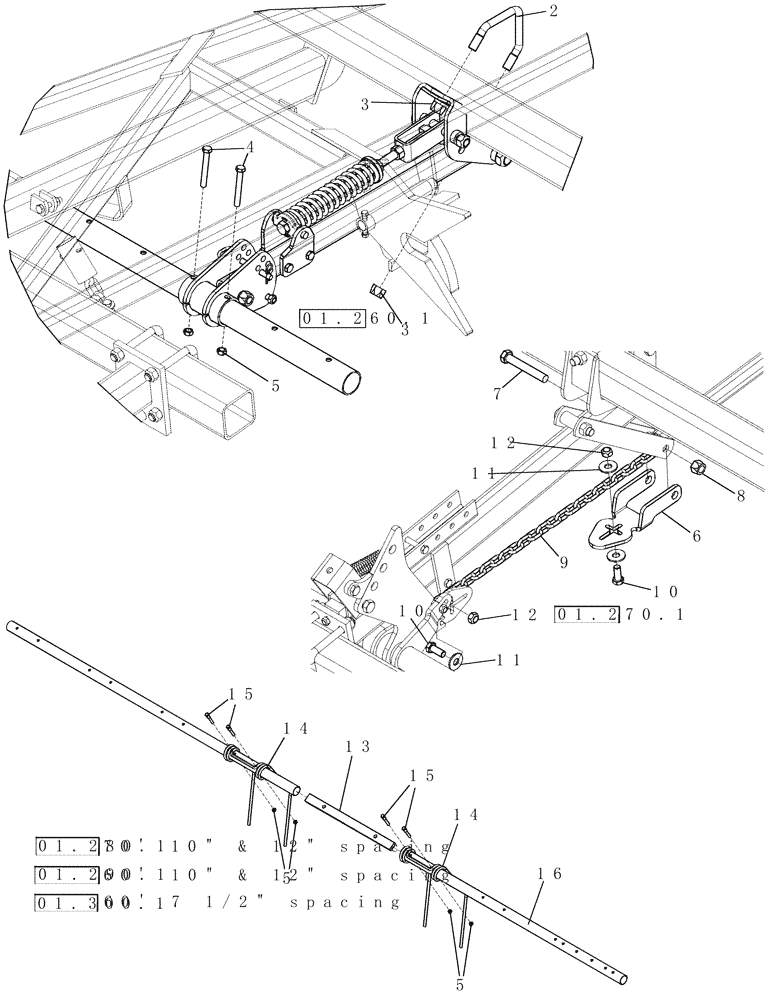

Запчасти Case IH ATX700 (01.271.1) - SINGLE BAR HEAVY HARROW CLOSER (12) - FRAME

2

5181

BOLT,V, 3/4" - 10 x 4", Gr 8

v 3/4"-10 x 4" GR8

1шт.

3

280375

NUT,3/4"-10, GC

2шт.

4

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

6шт.

6

87523794

PLATE

support

1шт.

7

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

8

280375

NUT,3/4"-10, GC

1шт.

9

87519987

CHAIN

7.95 x 878 GR.30 pltd

1шт.

10

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

2шт.

11

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

3шт.

12

85700693

NUT,5/8" - 11, Gr C

2шт.

13

87505024

SUPPORT TUBE,712 mm L

support 12"

1шт.

14

87500800

TINE

14 x 660 x 254 mm w dbl

2шт.

15

87505181

BOLT

sh 1/2"-13 x 3 3/4" G5

4шт.

16

87520214

TUBE

harrow 2281 mm long

2шт.
