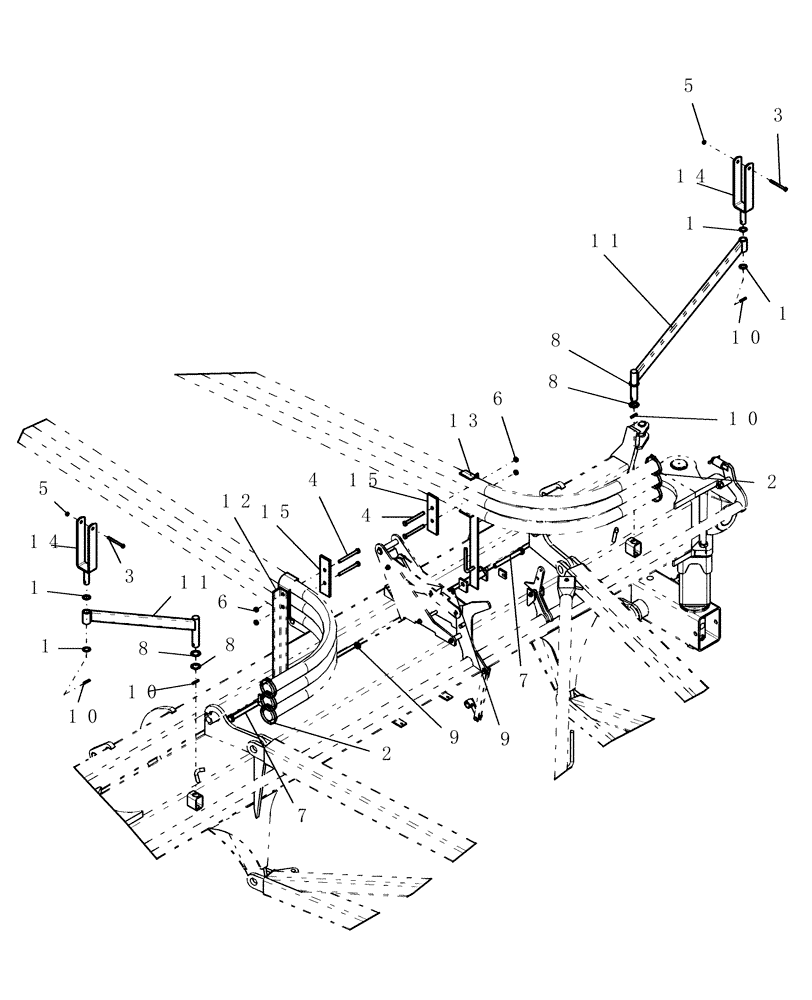

Запчасти Case IH ATX700 (01.240.1) - FRAME, AIRPACK CENTER SECTION (12) - FRAME

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

4шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

6шт.

Single Shoot

1шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

12шт.

Double Shoot

1шт.

3

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

2шт.

Single Shoot

1шт.

3

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

Double Shoot

1шт.

4

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

Single Shoot

1шт.

Tow Behind Only

1шт.

4

87575303

STUD

airpac offset

4шт.

Double Shoot

1шт.

Tow Behind Only

1шт.

5

88902

NUT,3/8"-16

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

Single Shoot

1шт.

Tow Behind Only

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

8шт.

Double Shoot

1шт.

Tow Behind Only

1шт.

7

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

Tow Behind Only

1шт.

8

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

4шт.

9

230-42112

LOCK NUT,3/4"-10, GA

2шт.

Tow Behind Only

1шт.

10

438-12024

LOCK PIN,5/16" x 1 1/2", Slotted

4шт.

11

87504424

ARM

hose holder

2шт.

12

87504422

MOUNTING PLATE

hose organizer

1шт.

Tow Behind Only

1шт.

13

87504421

MOUNTING PLATE

hose organizer

1шт.

Tow Behind Only

1шт.

14

87504425

FORK

hose organizer

2шт.

Single Shoot

1шт.

14

87504462

FORK

hose organizer

2шт.

Double Shoot

1шт.

15

87504420

CLIP

hose holder

2шт.

Single Shoot

1шт.

Tow Behind Only

1шт.

15

87504420

CLIP

hose holder

4шт.

Double Shoot

1шт.

Tow Behind Only

1шт.
