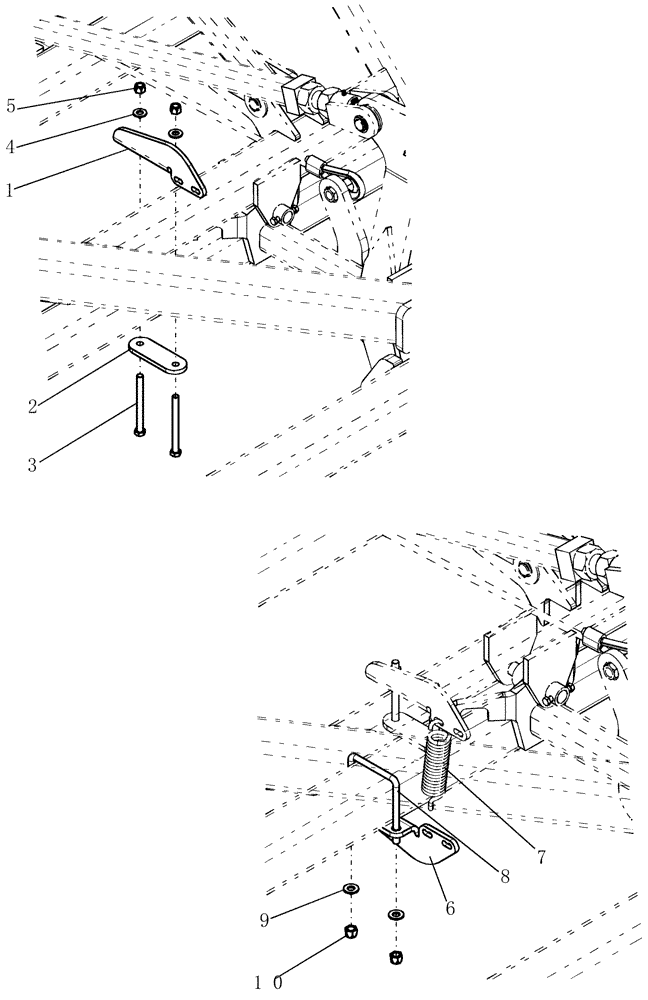

Запчасти Case IH ATX700 (01.202.1) - OUTER TOOLBAR FRAME SPRING 70-10" (12) - FRAME

1

84293460

BRACKET

Spring, 2 Hole Mount

2шт.

2

84293462

PLATE

2 hole

2шт.

3

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

4шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

84293460

BRACKET

Spring, 2 Hole Mount

2шт.

7

87506498

TENSION SPRING

.295 wire x 1.74 od x 7.8 inside hooks, 20 coils

2шт.

8

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

2шт.

9

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

10

86992215

LOCK NUT,1/2"-13, GC

4шт.
