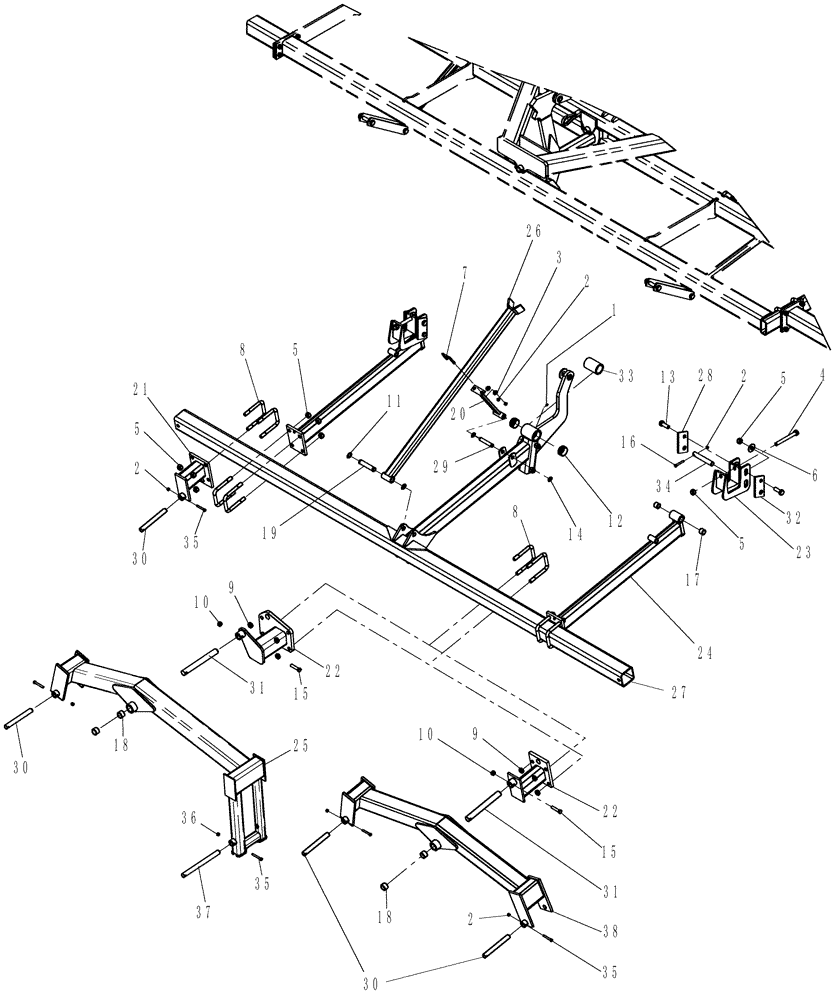

Запчасти Case IH ATX700 (01.190.1) - FRAME, INNER WING - PACKER T-BAR (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

88902

NUT,3/8"-16

11шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

4

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

2шт.

5

280375

NUT,3/4"-10, GC

29шт.

6

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

7

425254A1

U-BOLT

us 3/8"-16 x 2 1/16" w x 2 13/16" d, G5, 1 1/2" thread

1шт.

8

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

8шт.

9

230-42112

LOCK NUT,3/4"-10, GA

4шт.

10

280328

NUT,9/16"-12, GB

1шт.

11

87019495

SNAP RING,#98, Ext

24шт.

12

6643

COMPRESSION SPRING,Compression, 59.029mm OD x 60.325mm L

tension 2 1/4" x 2" x 1"

2шт.

13

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

14

9449

SNAP RING

ext 11/16" id 5/64" thick heavy duty, for 3/4'' shaft

2шт.

15

9511

BOLT

9/16"-12 x 2 1/2" gr8

1шт.

16

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

9шт.

17

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

22шт.

18

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

19

87420397

PIN,25.4mm OD x 122mm L

1" x 4 3/16" ul

1шт.

20

87503942

STRAP

support link

1шт.

21

87564201

BRACKET

bolster mount

1шт.

22

87564203

BRACKET

double bolster packer

1шт.

22

87564214

BRACKET

double bolster packer RT, Start Year: 01-MAY-09

1шт.

For 15' wing frames with 12

1шт.

Shown

1шт.

22

87564213

BRACKET

double bolster packer LT, Start Year: 01-MAY-09

1шт.

Not Shown

1шт.

For 15' wing frames with 12

1шт.

23

87503610

OUTRIGGER

journal

2шт.

24

87503991

FRAME

outrigger

2шт.

Includes 87420246

1шт.

25

87564204

FRAME

packer bolster double

1шт.

Includes 87420247

1шт.

25

84160516

BOLSTER

Offset, Double Packer RH, Start Year: 01-MAY-09

1шт.

Includes 87420247

1шт.

For 15' wing frames with 12

1шт.

Shown

1шт.

25

84160514

BOLSTER

Offset, Double Packer LH, Start Year: 01-MAY-09

1шт.

Not Shown

1шт.

Includes 87420247

1шт.

For 15' wing frames with 12

1шт.

26

87503947

FRAME

packer drive link

1шт.

27

87503621

FRAME

packer t-bar

1шт.

Includes 6643

1шт.

28

87503600

CLIP

pin lock

2шт.

29

87419007

PIN

19 x 95 ul

1шт.

30

87525927

PIN

25 x 195 ul chrome

3шт.

31

87525926

PIVOT PIN

double packer

1шт.

32

87503926

PLATE

guide

4шт.

33

87503922

SPACER

spacer packer lever

1шт.

34

87419702

PIN

25.4 x 138 ul chr

1шт.

35

280188

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

2шт.

36

9637692

NUT,3/8"-16, GB

2шт.

37

87529021

PIN

25 x 280 ul chrome

1шт.

38

87564204

FRAME

packer bolster double

1шт.

Includes 87420247

1шт.
