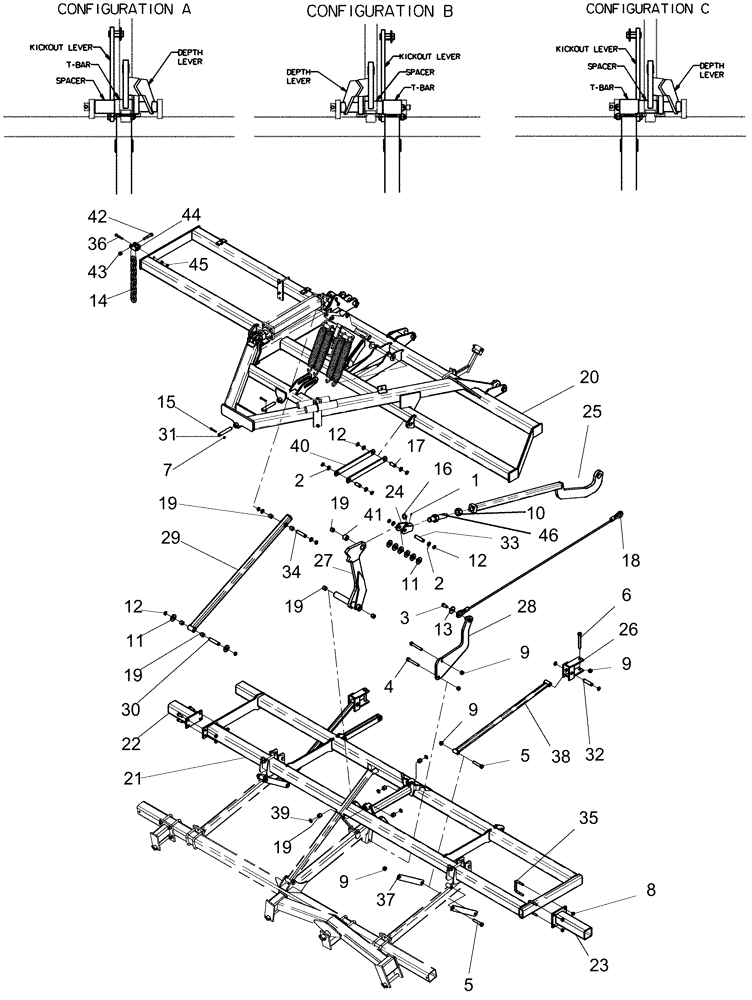

Запчасти Case IH ATX700 (01.182.1) - FRAME, INNER WING ASN Y8S003251 (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

16шт.

3

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

4

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

5

280210

BOLT,Hex, 3/4"-10 x 4", G5

4шт.

6

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

7

88902

NUT,3/8"-16

11шт.

8

85700693

NUT,5/8" - 11, Gr C

9шт.

9

280375

NUT,3/4"-10, GC

29шт.

10

425-1024

NUT,1 1/2"-6, G5

1шт.

11

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

10шт.

12

87019495

SNAP RING,#98, Ext

24шт.

13

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

1шт.

14

8295

CHAIN (AG)

lk 1/2" x 15 19/64" gr40 9 link

1шт.

15

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

9шт.

16

103-11150

SNAP RING,#150, Ext

1шт.

17

87419639

PIN

25 x 46 ul

4шт.

18

87419806

CABLE

1/2" x 86, thimble ends

1шт.

19

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

22шт.

20

87696937

FRAME

15' wing front left

1шт.

Includes 3523

1шт.

20

87503989

FRAME

15' wing front right

1шт.

Includes 3523

1шт.

Not Shown

1шт.

21

87503950

FRAME

15' wing rear left

1шт.

Includes 87420246, 100-28125

1шт.

21

87503988

FRAME

15' wing rear right

1шт.

Includes 87420246, 100-28125

1шт.

Not Shown

1шт.

22

87503652

FRAME

bolt-on stub 11.4"

1шт.

22

87503651

FRAME

bolt-on stub 16.1"

1шт.

22

87503649

FRAME

bolt-on stub 10"

1шт.

23

87503656

FRAME

bolt-on stub 15.1"

1шт.

24

87503608

CLEVIS

depth adjustment

1шт.

25

87503661

LINK

depth control

1шт.

26

87503927

JOURNAL

forward packer rest

2шт.

27

87503938

LEVER

packer depth right

1шт.

Includes 87420246

1шт.

For Packer Equipped Drills

1шт.

Not Shown

1шт.

27

87503939

LEVER

packer depth left

1шт.

Includes 87420246

1шт.

For Packer Equipped Drills

1шт.

27

87503943

LEVER

packer depth right

1шт.

Includes 87420246

1шт.

For Walking Beam Equipped Drills

1шт.

Not Shown

1шт.

27

87503944

LEVER

packer depth left

1шт.

Includes 87420246

1шт.

For Walking Beam Equipped Drills

1шт.

Not Shown

1шт.

28

87506490

LEVER

packer kickout RH

2шт.

Refer to Configuration A, B, or C

1шт.

Shown

1шт.

28

87503658

LEVER

packer kickout LH

2шт.

Not Shown

1шт.

Refer to Configuration A, B, or C

1шт.

29

87503616

LINK

weight transfer

1шт.

30

87420112

PIN

25.4 x 108 ul chrome

1шт.

31

87419702

PIN

25.4 x 138 ul chr

4шт.

32

87418581

PIN,25.4mm OD x 104mm L

25.4 x 90 ul chrome

2шт.

33

87419642

PIN

25.4 x 93 ul chrome

1шт.

34

87420117

PIN

25.4 x 98 ul chrome

2шт.

35

87502955

U-BOLT

us 5/8" 4"w 3 1/2"d

2шт.

36

281071

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

1шт.

37

87503925

STRAP

packer kickout

4шт.

Press Wheels Only

1шт.

37

87505142

STRAP

packer rest

4шт.

Walking Beam Tires Only

1шт.

38

87503614

LINK

packer kickout

2шт.

38

87505145

OFFSET LINK

packer rest

2шт.

Not Shown

1шт.

38

87505148

LINK

packer rest straight

2шт.

Not Shown

1шт.

39

100-28125

SNAP RING,1.25, Int, #125

4шт.

40

87503921

LINK

tool frame draft

4шт.

41

87503924

TUBE,31.75 mm ID x 44.45 mm OD x 32 mm L

weeble

2шт.

42

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

43

86992215

LOCK NUT,1/2"-13, GC

1шт.

44

87696935

CLEVIS

chain breakaway

1шт.

45

280717

NUT,7/16"-14, G5

2шт.

46

87418818

CLEVIS PIN

Swivel Znd

1шт.
