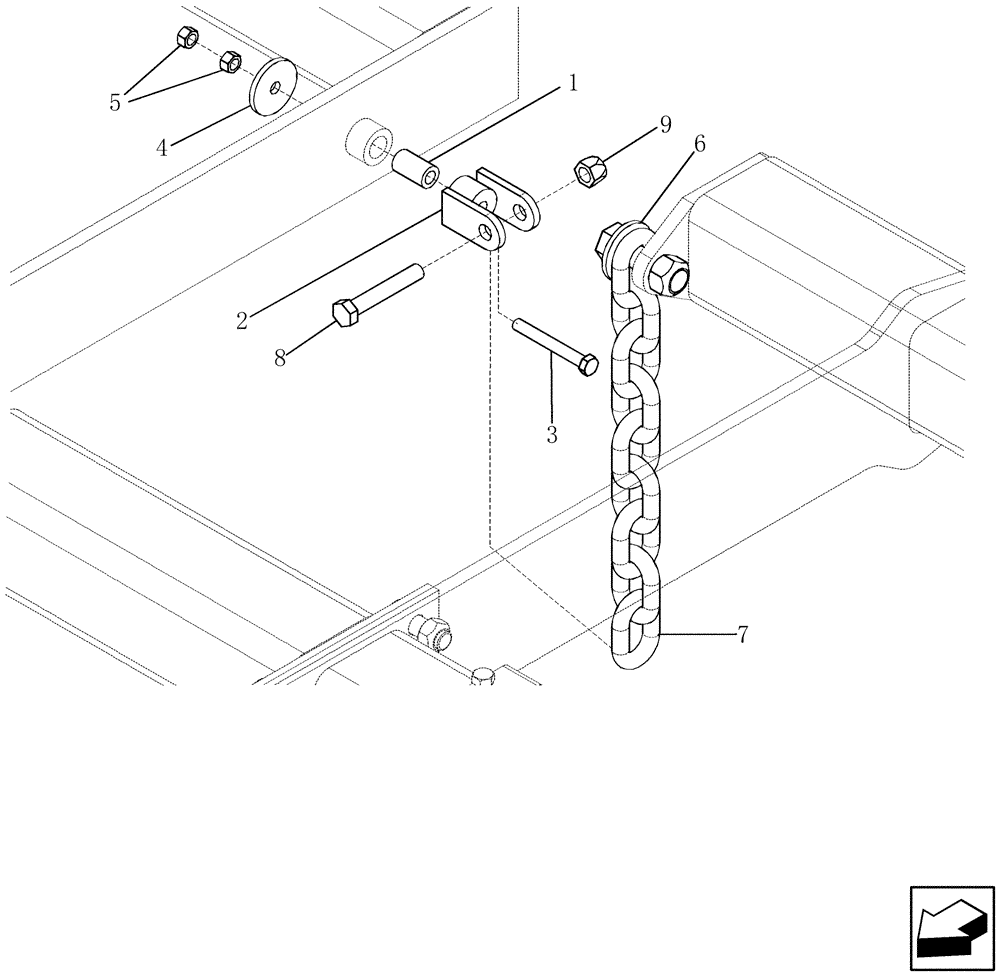

Запчасти Case IH ATX700 (01.181.1) - WING FRAME CHAIN BREAKAWAY KIT (12) - FRAME

1

87699203

SPACER

breakaway retrofit

1шт.

2

87696935

CLEVIS

chain breakaway

1шт.

3

281071

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

, Serial Range: -Y8S003250

1шт.

4

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

13/32"id x 1 7/8"od x 3/16"

1шт.

5

280717

NUT,7/16"-14, G5

2шт.

6

87688048

WASHER

50.8 mm od x 19.4 mm id x 6.4 mm thick

1шт.

7

8295

CHAIN (AG)

lk 1/2" x 15 19/64" gr40 9 link

1шт.

8

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

9

86992215

LOCK NUT,1/2"-13, GC

1шт.

10

84398525

CHAIN

Kit, Breakaway

1шт.
