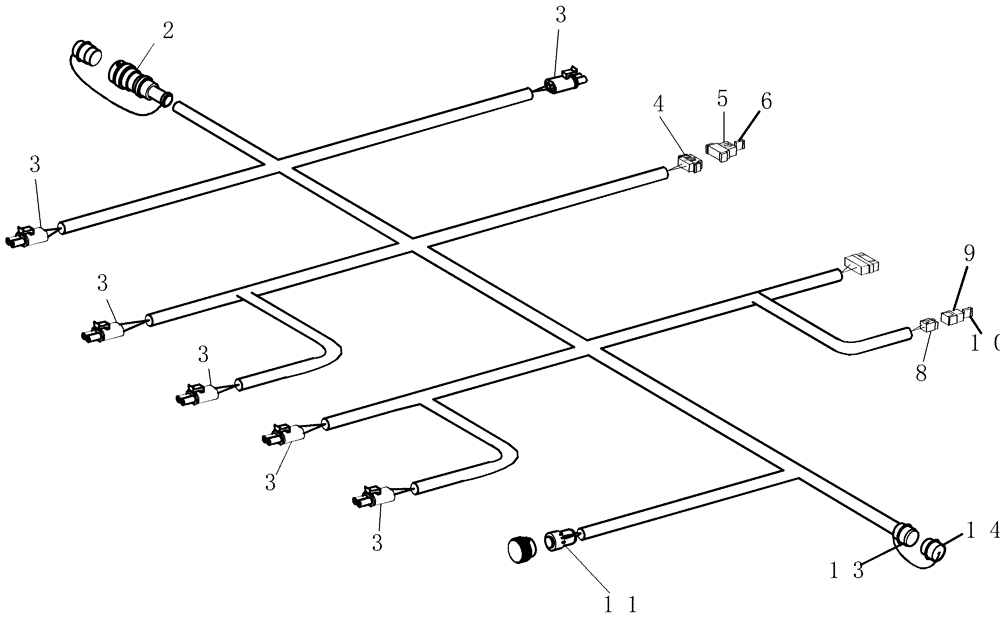

Запчасти Case IH ATX700 (03.040.1) - HARNESS, POSITION MONITOR TOW BEHIND Electrical/Electronics

0

87399184

HARNESS

frame, tow behind

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

15117

ELEC CONNECTOR,2 Pin

plastic 2c plug

6шт.

4

51200011

ELEC CONNECTOR,12 Pin

plastic 12c plug

1шт.

5

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

6

225055C1

PLUG

connector 20awg

12шт.

8

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

9

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

10

225055C1

PLUG

connector 20awg

3шт.

11

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

13

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

14

245041C1

CAP

dust 23 cond plug Deutsch

1шт.
