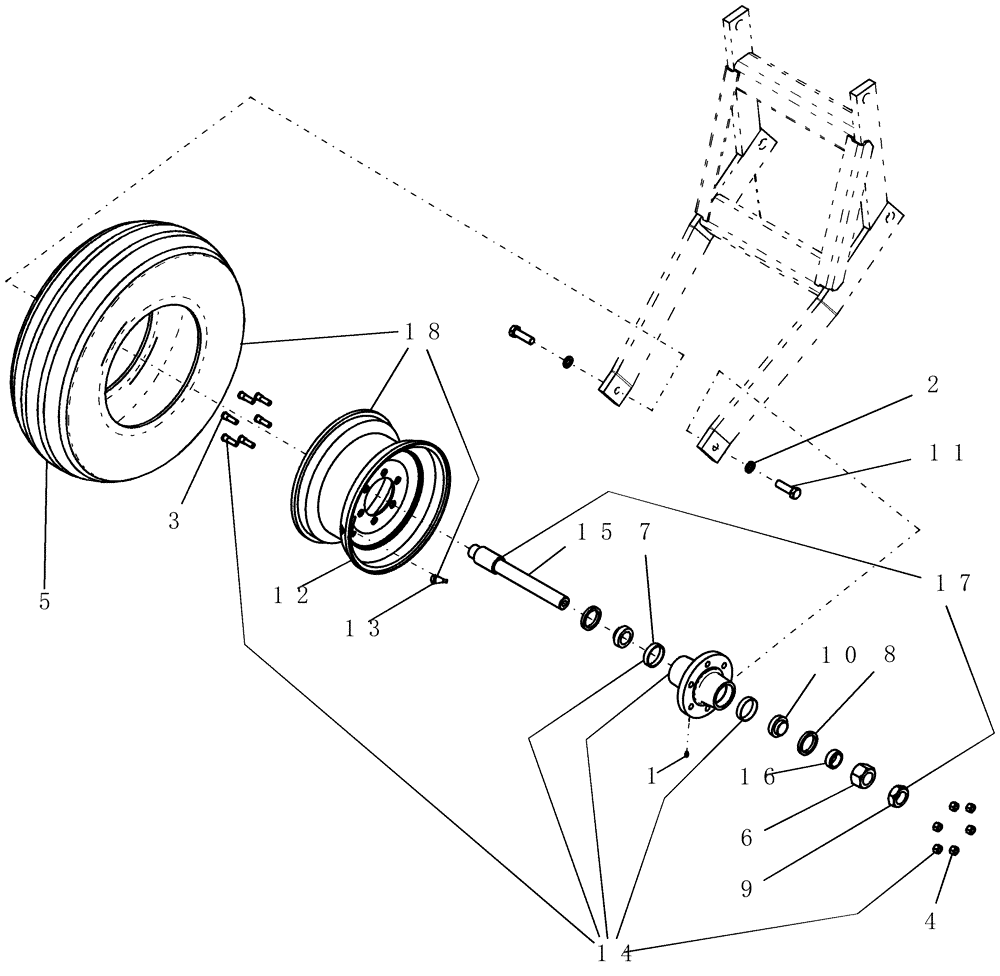

Запчасти Case IH ATX700 (01.150.1) - TRANSPORT, ROCKER SPINDLE AND WHEEL (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

3

1662

BOLT

stud 1/2"-20 G5 wb16

6шт.

4

F23214

WHEEL NUT

hub wheel - h517 & h617

6шт.

5

3474

TYRE/TIRE

11l x 15 fi - d load range

1шт.

6

425-1024

NUT,1 1/2"-6, G5

1шт.

7

72062

BEARING CUP,69.04mm OD x 15.08mm W

#13621

2шт.

8

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

SE24

2шт.

9

87010729

JAM NUT,Jam, 1 1/2"-6, G5

1шт.

10

72012

BEARING CONE

#LM13686

2шт.

11

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

12

87505456

RIM

15" x 8" - 6 hole

1шт.

13

196033

VALVE STEM

tr/415

1шт.

14

87505491

HUB

H617-1 assembly with cups and studs and nuts

1шт.

Includes 1662, F23214, 453012R1

1шт.

15

GD-161

SPINDLE

caster wheel

1шт.

16

GD-162

SPACER

tube wheel spindle

1шт.

17

GD-161A

HUB

and spindle assembly H617-14.44" long, thru hub

1шт.

Not available as an assembly

1шт.

Includes GD-161, 87505491, GD-162, 6617, 432617A1, 4782, 425-1024, 131-1419, 80714, F23214, 1662, 453012R1

1шт.

18

87505470

WHEEL ASSY

15" x 8" 6h with 11l-15fi d

1шт.

Includes 87505456, 3474, 196033

1шт.

100

6617

WHEEL BEARING KIT

completion - h617

1шт.

Not Shown

1шт.

Includes 4782, 432617A1

1шт.
