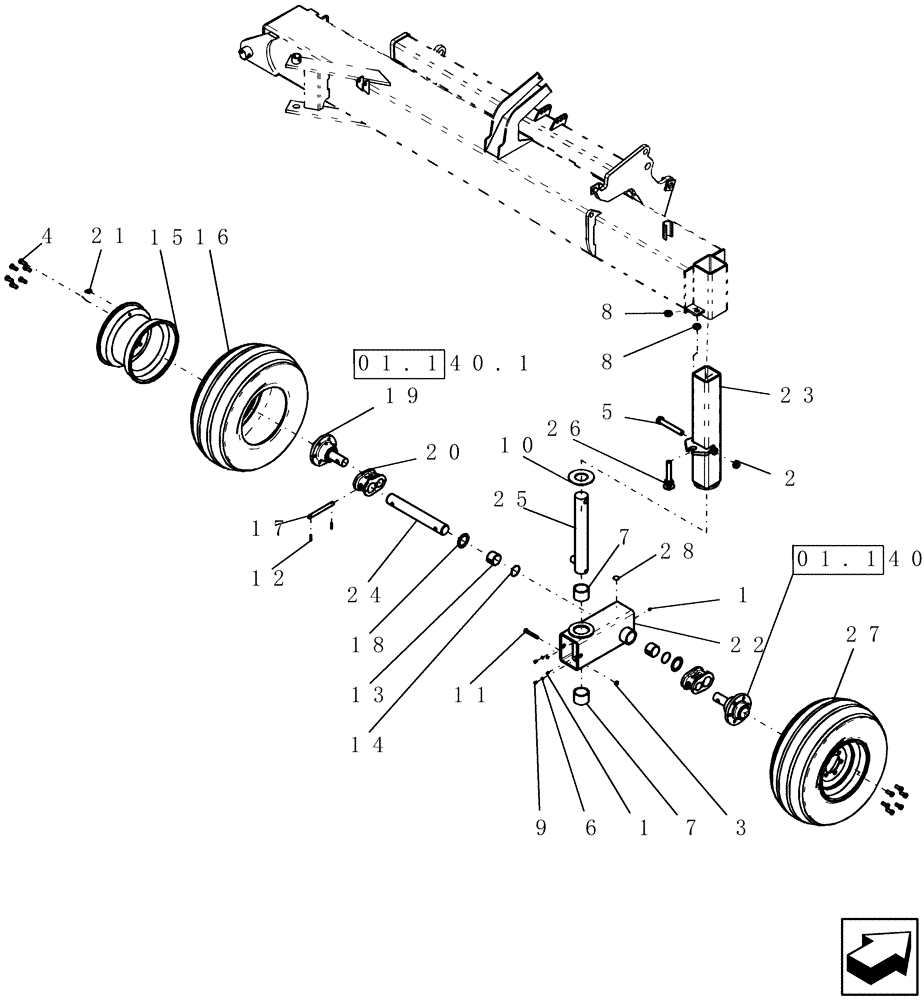

Запчасти Case IH ATX700 (01.130.1) - BEAM, OUTER WING CASTER AND TIRES (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

5шт.

2

280286

NUT,1"-8, GB

1шт.

3

86992215

LOCK NUT,1/2"-13, GC

1шт.

4

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

5

9602223

BOLT,Hex, 1" - 8 x 7", Gr 5

1шт.

6

80682

LOCK WASHER,1/4"

2шт.

7

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

8

87553819

JAM NUT

1"-8 Hex, Jam

3шт.

9

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

10

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

11

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

12

9632

ROLL PIN

1/4" x 1 1/2"

4шт.

13

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

tension 2 3/4" x 2 1/2" x 2"

2шт.

14

22413

O-RING,2.5" ID x 2.75" OD x 0.125"

2 1/2" id x 2 3/4" od x 1/8"

2шт.

15

87505456

RIM

15" x 8" - 6 hole

2шт.

Standard

1шт.

15

87505450

RIM

15X10LB 6 hole +1 1/8" offset

2шт.

High Float

1шт.

16

3474

TYRE/TIRE

11l x 15 fi - d load range

2шт.

Standard

1шт.

16

1864

TYRE/TIRE

12 1/2 L x 15 fi - 8 ply

2шт.

High Float

1шт.

17

87503793

PIN

walking beam

2шт.

18

87504106

WASHER

2 1/2" id 3 1/2" 1/8"

2шт.

19

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

Not available as an assembly

1шт.

Refer to 01.140.1

1шт.

20

87506497

BEAM

walking, caster

2шт.

21

196033

VALVE STEM

tr/415

2шт.

Standard

1шт.

21

1018564

VALVE

tire stem

2шт.

High Float

1шт.

22

87503852

HOUSING

walking beam

1шт.

23

87503868

SLIDE

wheel std castering

1шт.

24

87419011

SHAFT

cross walk beam

1шт.

25

87418689

SPINDLE

wheel standard

1шт.

26

87418964

STUD

wheel std adjust

1шт.

27

87505470

WHEEL ASSY

15" x 8" 6h with 11l-15fi d

2шт.

Standard

1шт.

Includes 87505456, 3474, 196033

1шт.

27

87708057

TYRE/TIRE

15" x 10" 6h with 12.5l-15fi d

2шт.

Includes 87505450, 1864, 1012383

1шт.

High Float

1шт.

28

6565

DECAL

grease 10 hours

1шт.
