Запчасти Case IH ATX700 (01.122.1) - BEAM, LEFT INNER WING CASTER AND TIRES ASN Y8S003251 (12) - FRAME

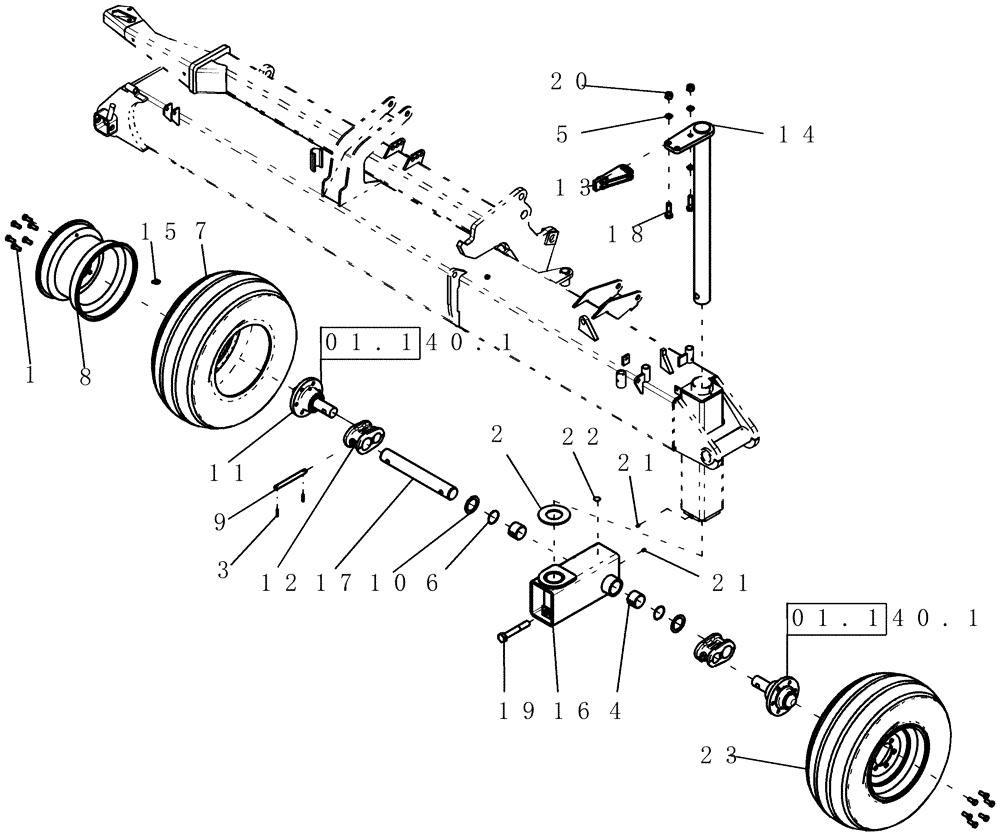

Схема запчастей Case IH ATX700 - (01.122.1) - BEAM, LEFT INNER WING CASTER AND TIRES ASN Y8S003251 (12) - FRAME
9
19
5
6
3
12
01.140.1
01.140.1
11
4
17
14
1
20
21
2
21
10
13
23
15
18
16
8
7
22

Артикул

Название

Примечание

Количество

1

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

2

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

3

9632

ROLL PIN

1/4" x 1 1/2"

4шт.

4

21981

BUSHING,63.5mm ID x 69.85mm OD x 50.8mm L

tension 2 3/4" x 2 1/2" x 2"

2шт.

5

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

3шт.

6

22413

O-RING,2.5" ID x 2.75" OD x 0.125"

2 1/2" id x 2 3/4" od x 1/8"

2шт.

7

3474

TYRE/TIRE

11l x 15 fi - d load range

2шт.

Standard

1шт.

7

1864

TYRE/TIRE

12 1/2 L x 15 fi - 8 ply

2шт.

High Float

1шт.

8

87505456

RIM

15" x 8" - 6 hole

2шт.

Standard

1шт.

8

87505450

RIM

15X10LB 6 hole +1 1/8" offset

2шт.

High Float

1шт.

9

87503793

PIN

walking beam

2шт.

10

87504106

WASHER

2 1/2" id 3 1/2" 1/8"

2шт.

11

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

Not available as an assembly

1шт.

Refer to 01.140.1

1шт.

12

87506497

BEAM

walking, caster

2шт.

13

87503799

CLEVIS

caster latch

1шт.

14

87503798

TUBE,950 mm L

torsion caster lock

1шт.

15

196033

VALVE STEM

tr/415

2шт.

Standard

1шт.

15

1018564

VALVE

tire stem

2шт.

High Float

1шт.

16

87503795

HOUSING

walk beam locking

1шт.

Includes 21981, 6565

1шт.

17

87419011

SHAFT

cross walk beam

1шт.

18

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

2шт.

19

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

1шт.

20

280375

NUT,3/4"-10, GC

2шт.

21

87414

LUBE NIPPLE,1/4" - 28

2шт.

22

6565

DECAL

grease 10 hours

2шт.

23

87505470

WHEEL ASSY

15" x 8" 6h with 11l-15fi d

2шт.

Standard

1шт.

Includes 87505456, 3474, 196033

1шт.

23

87708057

TYRE/TIRE

15" x 10" 6h with 12.5l-15fi d

2шт.

Includes 87505450, 1864, 1012383

1шт.

High Float

1шт.

Выбрано товаров: 40
