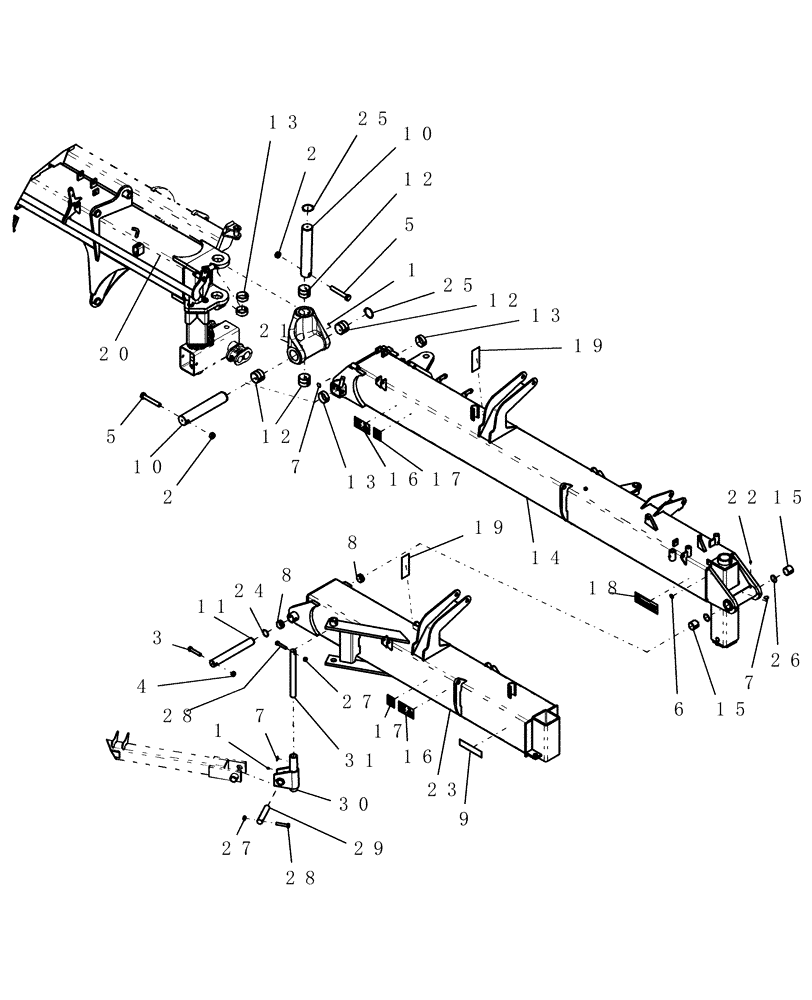

Запчасти Case IH ATX700 (01.090.1) - BOOM, WING (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

10шт.

2

280286

NUT,1"-8, GB

4шт.

3

280210

BOLT,Hex, 3/4"-10 x 4", G5

3шт.

4

280375

NUT,3/4"-10, GC

3шт.

5

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

4шт.

6

6565

DECAL

grease 10 hours

8шт.

7

6566

DECAL

grease 50 hours

4шт.

8

6643

COMPRESSION SPRING,Compression, 59.029mm OD x 60.325mm L

tension 2 1/4" x 2" x 1"

2шт.

9

22903

DECAL

retroreflective amber 2" x 9"

2шт.

10

87419865

PIN

center section boom, Years: -01-DEC-06

4шт.

10

87597581

PIN

center section boom, Start Year: 01-JAN-07

4шт.

11

87419906

PIN

outer boom ind hardened, Years: -01-APR-07

2шт.

12

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

tension 3 1/4" x 3" x 2 1/2" lg

8шт.

13

87419948

BUSHING,76.2mm ID x 82.55mm OD x 31.75mm L

tension 3 1/4" x 3" x 1 1/4" lg

8шт.

11

87627114

PIN

outer boom ind hardened, Start Year: 01-MAY-07

2шт.

14

87503731

BOOM

wing 15' inner LH

1шт.

Includes 87419948, 87503734, 217408, 5738, 87501820, 6244, 2022, 80714, 6566, 6565, 87503980, 87503995, 87503998

1шт.

14

87503743

BOOM

wing 15' inner RH

1шт.

Includes 87419948, 87503734, 217408, 5738, 87501820, 6244, 2022, 80714, 6566, 6565, 87503980, 87503995, 87503998

1шт.

Not Shown

1шт.

15

87503734

GROOVED BUSHING

tension 2 1/4" x 2" x 2" lg

4шт.

16

87503980

DECAL

danger wing lock

3шт.

17

87503995

DECAL

important lockshaft

3шт.

18

87503996

WARNING DECAL

Caster Trap

2шт.

19

87503998

DECAL

wing weight transfer

3шт.

20

87503711

BOOM

center section

1шт.

Includes 87419948, 6567, 6566, 87504060

1шт.

21

87418855

KNUCKLE

ASSY. cast LH machined with bushings

1шт.

Includes 87419947

1шт.

21

87418856

KNUCKLE

ASSY. cast RH machined with bushings

1шт.

Not Shown

1шт.

Includes 87419947

1шт.

22

87414

LUBE NIPPLE,1/4" - 28

18шт.

23

87504011

BOOM

wing 10' outer LH

1шт.

Includes 6643, 22903, 87503980, 87503995, 87503998

1шт.

23

87504042

BOOM

wing 10' outer RH

1шт.

Includes 6643, 22903, 87503980, 87503995, 87503998

1шт.

Not Shown

1шт.

23

87503961

BOOM

wing 15' outer LH

1шт.

Includes 6643, 22903, 87503980, 87503995, 87503998

1шт.

Not Shown

1шт.

23

87504032

BOOM

wing 15' outer RH

1шт.

Includes 6643, 22903, 87503980, 87503995, 87503998

1шт.

Not Shown

1шт.

24

103-11200

SNAP RING,#200, Ext

1шт.

25

87016930

SNAP RING,#300, Ext

4шт.

26

217408

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

27

85700693

NUT,5/8" - 11, Gr C

2шт.

28

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

2шт.

29

87418605

PIN

38.1 x 171 mm ul

1шт.

30

87503828

KNUCKLE

ASSY. hitch draw

1шт.

Includes 6566

1шт.

31

87420031

PIN

38.1 x 389 ul

1шт.
