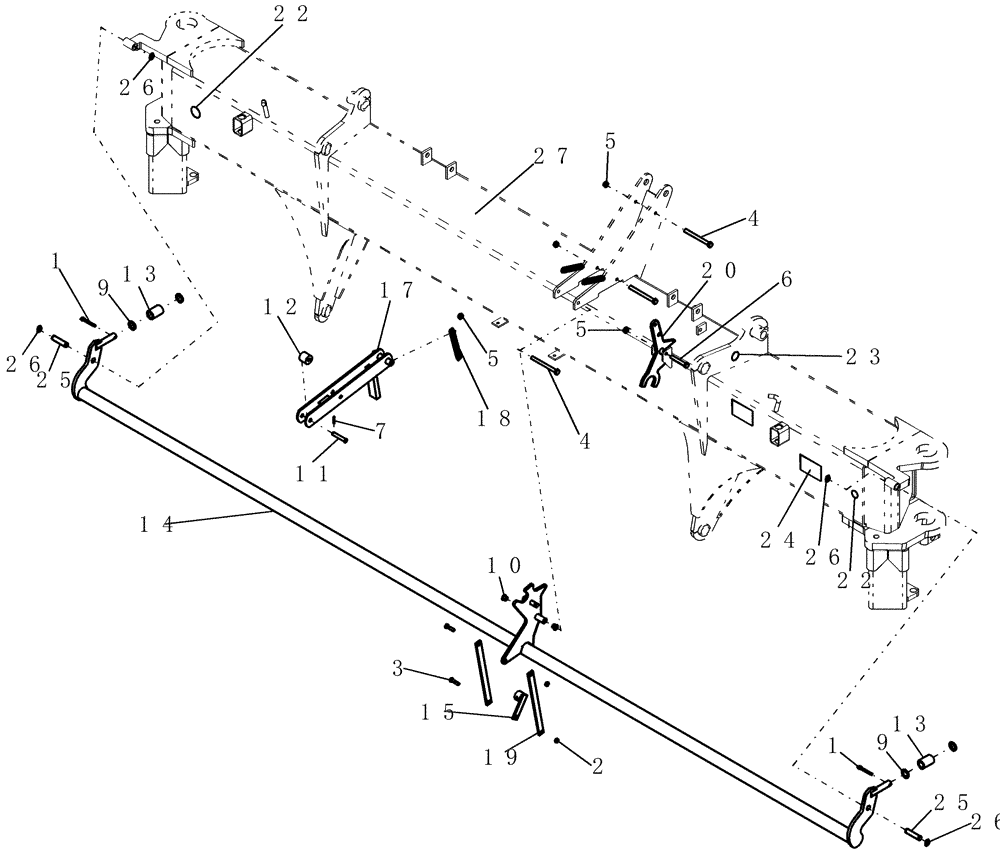

Запчасти Case IH ATX700 (01.062.1) - LOCKSHAFT, CENTER SECTION COUPLER ASN Y8S003251 (12) - FRAME

1

3566

COTTER PIN

5/16" x 2"

2шт.

2

88902

NUT,3/8"-16

2шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

3шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

7

80755

COTTER PIN,1/8" OD x 1" L

1шт.

9

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

4шт.

10

GH-313

BUSHING,12.7mm ID x 15.9mm OD x 12.7mm L

flanged

2шт.

11

6855

CLEVIS PIN

1/2" x 2 3/4" fl

1шт.

12

87419976

ROLLER

lockshaft

1шт.

13

87502682

ROLLER

center lockshaft

2шт.

14

87696418

SHAFT LOCK

center section

1шт.

15

87504211

ARM

hydraulic valve

1шт.

17

87697335

ARM

lockshaft release

1шт.

18

87506299

TENSION SPRING

7/64" wire 7/8" od x 6" long

2шт.

19

87504199

LINK

hydraulic valve

2шт.

20

87697331

BELLCRANK

center lockshaft

1шт.

22

6566

DECAL

grease 50 hours

2шт.

23

6567

DECAL

grease 200 hours

1шт.

24

87504060

DECAL

caster must be

1шт.

25

87419711

PIN

19 x 75 ul

2шт.

26

9449

SNAP RING

ext 11/16" id 5/64" thick heavy duty, for 3/4'' shaft

4шт.
