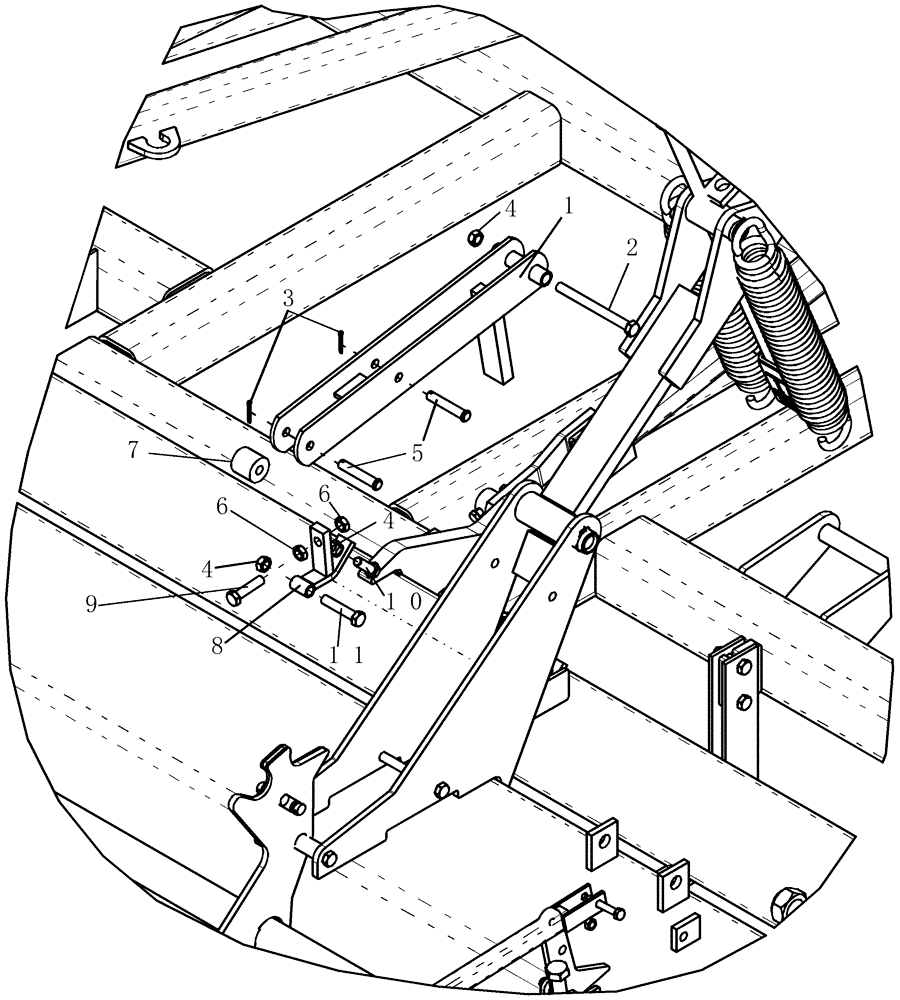

Запчасти Case IH ATX700 (01.061.1) - LOCKSHAFT, CENTER SECTION UPDATE KIT (12) - FRAME

1

87697335

ARM

lockshaft release

1шт.

2

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

3

80755

COTTER PIN,1/8" OD x 1" L

2шт.

4

86992215

LOCK NUT,1/2"-13, GC

3шт.

5

6855

CLEVIS PIN

1/2" x 2 3/4" fl

2шт.

6

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

7

87419976

ROLLER

lockshaft

1шт.

8

87697467

BRACKET

lockshaft adaptor

1шт.

9

419986A1

BOLT,Hex, 1/2" - 13 x 2", Gr 2, Full Thd

1шт.

10

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

11

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.
