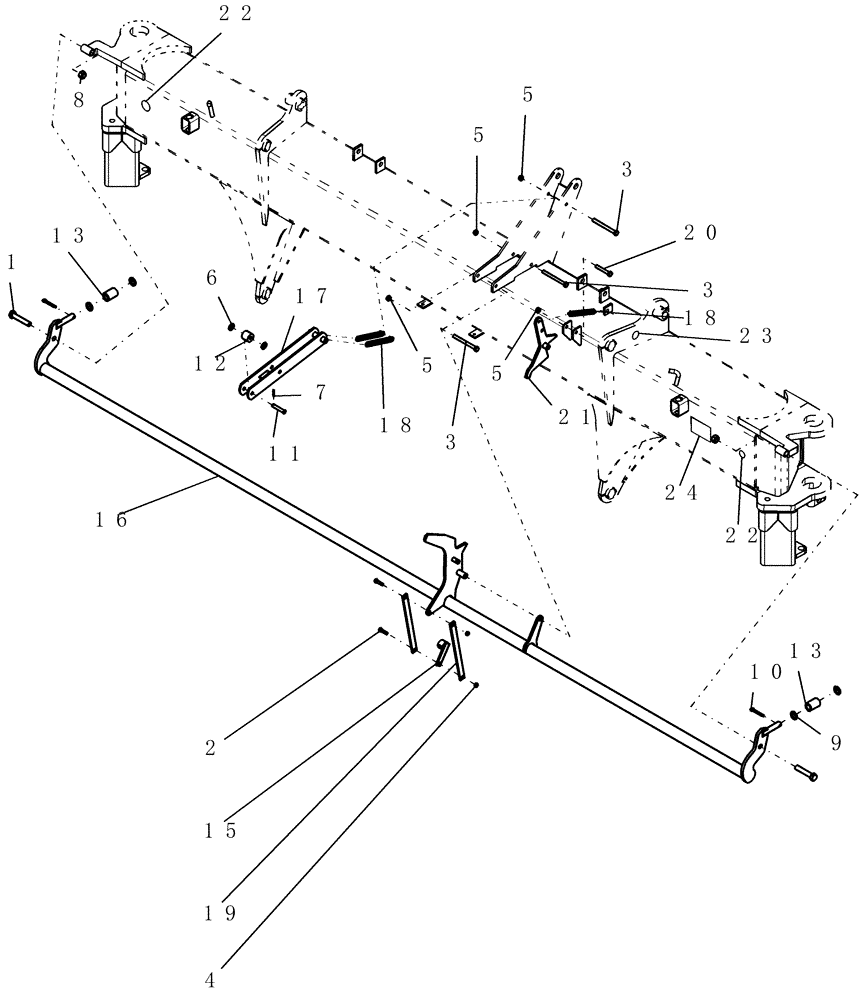

Запчасти Case IH ATX700 (01.060.1) - LOCKSHAFT, CENTER SECTION COUPLER BSN Y8S003250 (12) - FRAME

1

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

2

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

3шт.

4

88902

NUT,3/8"-16

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

7

80755

COTTER PIN,1/8" OD x 1" L

1шт.

8

280375

NUT,3/4"-10, GC

2шт.

9

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

4шт.

10

3566

COTTER PIN

5/16" x 2"

2шт.

11

6855

CLEVIS PIN

1/2" x 2 3/4" fl

1шт.

12

87419976

ROLLER

lockshaft

1шт.

13

87502682

ROLLER

center lockshaft

2шт.

15

87504211

ARM

hydraulic valve

1шт.

16

87504018

SHAFT LOCK

center section

1шт.

Includes 87578983

1шт.

17

87505426

ARM

lockshaft release

1шт.

18

87506299

TENSION SPRING

7/64" wire 7/8" od x 6" long

3шт.

19

87504199

LINK

hydraulic valve

2шт.

20

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

21

87504213

ARM

lockshaft release

1шт.

22

6566

DECAL

grease 50 hours

2шт.

23

6567

DECAL

grease 200 hours

1шт.

24

87504060

DECAL

caster must be

1шт.
