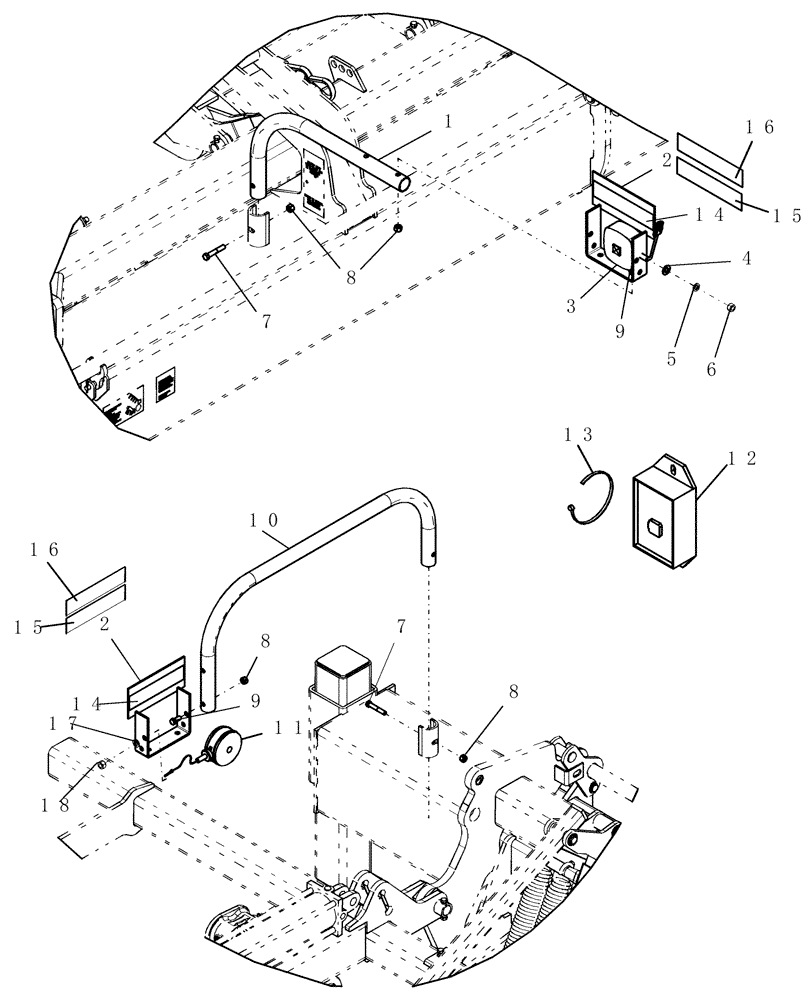

Запчасти Case IH ATX700 (03.020.1) - LIGHTING, INNER AND OUTER SECTION Electrical/Electronics

1

87505359

ARM

transport lighting inner

1шт.

2

NW-589

BRACKET

amber light / decal mount

1шт.

3

192052A1

REPAIR KIT

warning light (2 wire), Years: -01-SEP-05

1шт.

Shown

1шт.

3

87564157

WARNING LIGHT

assembly amber, Start Year: 01-OCT-05

1шт.

Not Shown

1шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

6

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

7

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

8

280980

NUT,7/16"-14, GC

2шт.

9

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

1шт.

10

87505361

ARM

transport lighting outer

1шт.

11

51200040

LIGHT

assy. stop tail/signal red

1шт.

Includes 6815 and 86537133

1шт.

11

6815

LENS

red

1шт.

11

86537133

BULB,C6, #1157, 12.8V

1шт.

12

86561136

MODULE

implement lighting control

1шт.

13

425288A1

CLAMP

cable - 3/4" id

1шт.

14

22903

DECAL

retroreflective amber 2" x 9"

2шт.

15

22902

DECAL

retroreflective red 2" x 9"

2шт.

16

51200094

DECAL

fluorescent red orange

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

18

280431

NUT,1/2"-13, G5

1шт.

19

529068

BULB,#1156, 12V, 21W

1шт.

Not Shown

1шт.

19

84129422

BULB

Double Contact, 1156DC

1шт.

Not Shown

1шт.
