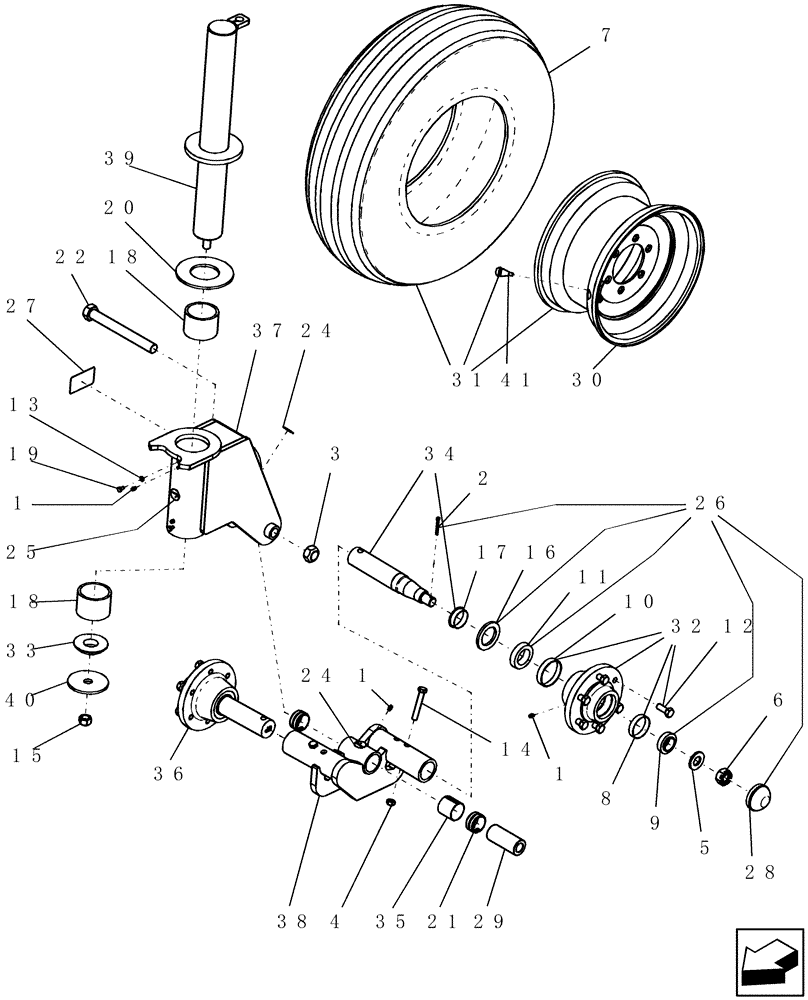

Запчасти Case IH ATX400 (1.170.1) - WING DUAL CASTER ASSEMBLY - BOTTOM (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

5шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

3

280286

NUT,1"-8, GB

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

2шт.

5

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

2шт.

6

86020752

SLOTTED NUT

1"-14, G5

2шт.

7

1980928C1

TYRE/TIRE

9.5l-15sl 8pr

2шт.

Purchase locally

1шт.

8

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

2шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

2шт.

10

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

2шт.

11

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

2шт.

12

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

13

80682

LOCK WASHER,1/4"

2шт.

14

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

15

280375

NUT,3/4"-10, GC

1шт.

16

3685

OIL SEAL

triple lip - h615 hub

2шт.

17

51200202

SLEEVE

wear, spindle S614/S811

2шт.

18

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

19

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

20

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

21

6366

BUSHING

tension 2" x 1 3/4" x 1"

2шт.

22

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

1шт.

24

6565

DECAL

grease 10 hours

2шт.

25

6566

DECAL

grease 50 hours

1шт.

26

6615

WHEEL BEARING KIT

completion - H615

2шт.

Includes 432-1224, 618023R91, 67527, 51200086 and 3685

1шт.

27

22421

DECAL

bolt torque

1шт.

28

51200086

HUB CAP

dc15 h614

2шт.

29

87420398

CARRIER

spool hard walk beam

1шт.

29

DR-871K

KIT

Carrier Spool Upgrade

1шт.

Includes 87420398, DR-872, two 6366, 6436, 1408 and DR-497.27

1шт.

30

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

2шт.

31

87504815

WHEEL ASSY

15X8 6 hole with 9.5L-15SL 8P +1 1/8" offset

2шт.

Includes 84203972, 87504814 and 84203972

1шт.

32

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

Includes 618024R1, 619387R1 and six 1020701

1шт.

Includes hub, cups and wheel bolts

1шт.

33

CA-117

SEAL

1 1/2" wide x 3 9/16" long x 5/8" thick

1шт.

34

DR-615

SPINDLE

2" x 11 1/2" - with wear sleeve

2шт.

Includes 51200202, 495-81078 and 25-1316

1шт.

35

DR-872

SPACER

walking beam 2" od x 1 7/8" long

1шт.

36

DR-615A

HUB

& spindle assembly h615 with 11 1/2" spindle

2шт.

Includes 51200202, 4040\C, 51200086, 67527, 80714, 3685, 618023R91, 6475, DR-615 and 432-1224

1шт.

37

87500117

HOUSING

pivot heavy left

1шт.

Shown

1шт.

Includes decal 22421

1шт.

37

87500118

HOUSING

pivot heavy right

1шт.

Includes decal 22421

1шт.

Not Shown

1шт.

38

DR-657

BEAM

walking left

1шт.

Shown

1шт.

38

DR-658

BEAM

walking right

1шт.

Not Shown

1шт.

39

87435837

SHAFT

caster

1шт.

40

ND-951

CAP

caster

1шт.

41

84203972

TIRE TUBE

15/9.5L-15SL/R15

1шт.
