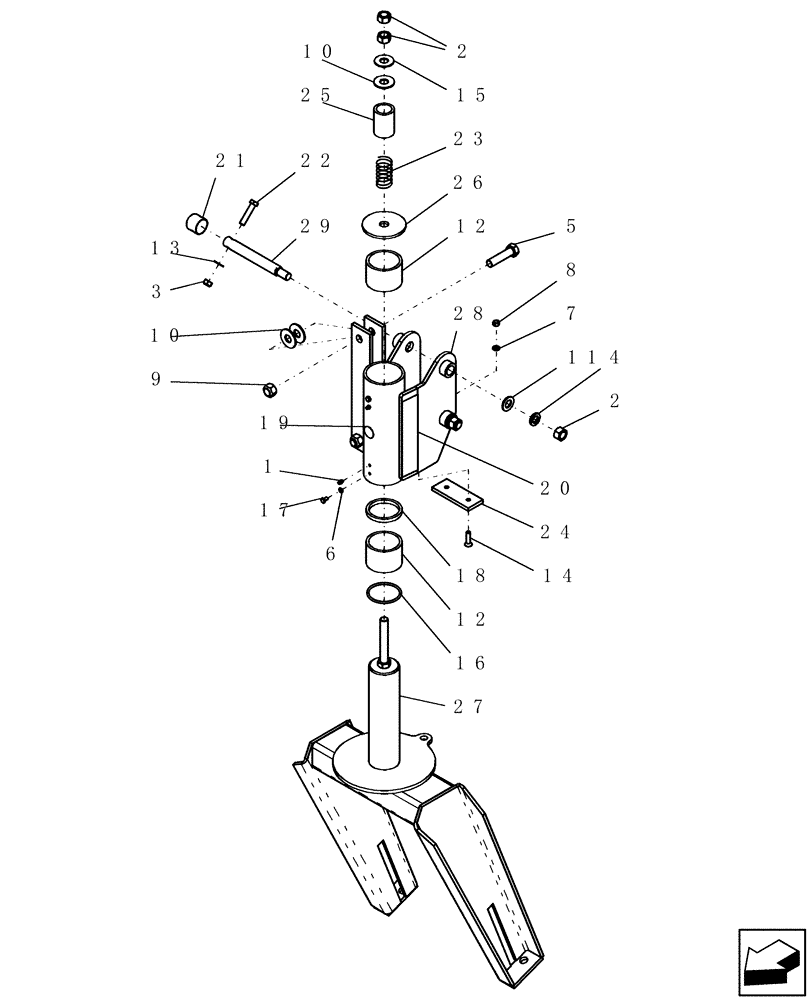

Запчасти Case IH ATX400 (1.130.1) - CENTER SECTION SINGLE CASTER ASSEMBLY - TOP (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

280954

NUT,3/4"-10, G5

4шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

5

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

6

80682

LOCK WASHER,1/4"

2шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

8

9628503

NUT,3/8"-16, G5

2шт.

9

280375

NUT,3/4"-10, GC

2шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

5шт.

11

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

12

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

13

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

14

5884

SCREW

cap 3/8"-16 x 1 1/2" blk fh

2шт.

15

87326968

WASHER,0.81" ID x 1.88" OD x 0.11" Thk

brass 13/16" id 1 5/64" 7/64"

1шт.

16

6139

O-RING,2.625" ID x 3" OD x 0.188"

2 5/8" id 3" od 3/16"

1шт.

17

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

18

6417

SEAL

3" id x 3 1/2" od x 3/8" thick

1шт.

19

6566

DECAL

grease 50 hours

1шт.

20

22903

DECAL

retroreflective amber 2" x 9"

1шт.

21

87418616

CAP

vinyl 38 x 35 lg black

2шт.

22

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

2шт.

23

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

23

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

24

ND-485

BRAKE PAD

caster pivot

1шт.

25

ND-949

SLEEVE,38.1mm ID x 69.85mm L

hose spring

1шт.

26

ND-951

CAP

caster

1шт.

27

ND-902

FRAME

caster with 9" adjustment

1шт.

28

87500150

HOUSING

pivot light left

1шт.

Shown

1шт.

Includes two 5738, two 492-11025, two 280640, two 80714, ND-485, two 5884, two 492-11038, two 425-106, 6566 and 22903

1шт.

28

87500149

HOUSING

pivot light right

1шт.

Includes two 5738, two 492-11025, two 280640, two 80714, ND-485, two 5884, two 492-11038, two 425-106, 6566 and 22903

1шт.

Not Shown

1шт.

29

87420518

PIN,25.4mm OD x 215mm L

caster pivot

2шт.
