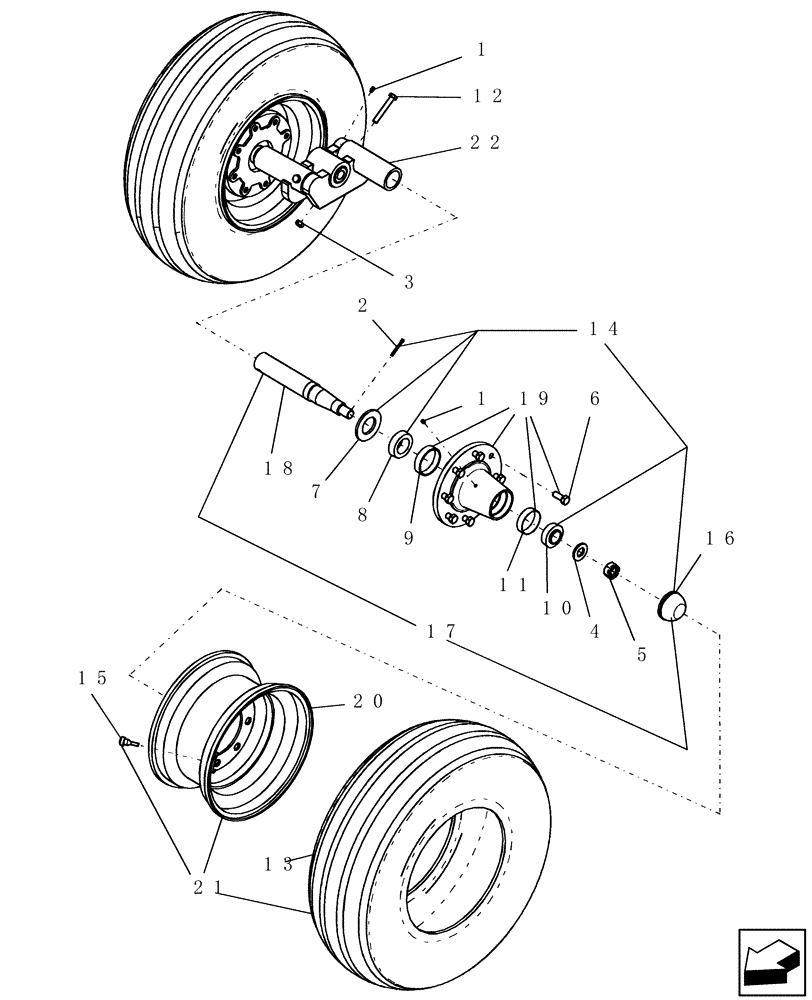

Запчасти Case IH ATX400 (1.120.1) - 8 BOLT HUB AND SPINDLE - 45, 51 AND 57 INTERROW MODELS (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

3шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

2шт.

5

86020752

SLOTTED NUT

1"-14, G5

2шт.

6

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

16шт.

7

491715R91

OIL SEAL

oil SE16

2шт.

8

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

2шт.

9

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

2шт.

10

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

12шт.

11

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

2шт.

12

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

13

400602A1

TYRE/TIRE

11l x 15 fi - f load range

2шт.

14

6811

WHEEL BEARING KIT

completion - h811

2шт.

15

22802

VALVE

stem tire tr/801 hp

2шт.

16

87505192

HUB CAP

dc17

2шт.

17

87443627

HUB

spindle assy h811-13.656lg

2шт.

18

87443689

SPINDLE

s811- 2 x 13.66 sp c/w nut & washer

2шт.

19

87505495

HUB

H811-3 assembly with cups and zerk hole

2шт.

20

87505453

RIM

15" x 8" 8 hole heavy - 1 1/2" offset

2шт.

21

CC-172A

WHEEL ASSY

15 x 8 8h with 11l-15fi f

2шт.

22

87444874

BEAM

walking left

1шт.

Shown

1шт.

22

87444873

BEAM

walking right

1шт.

Not Shown

1шт.
