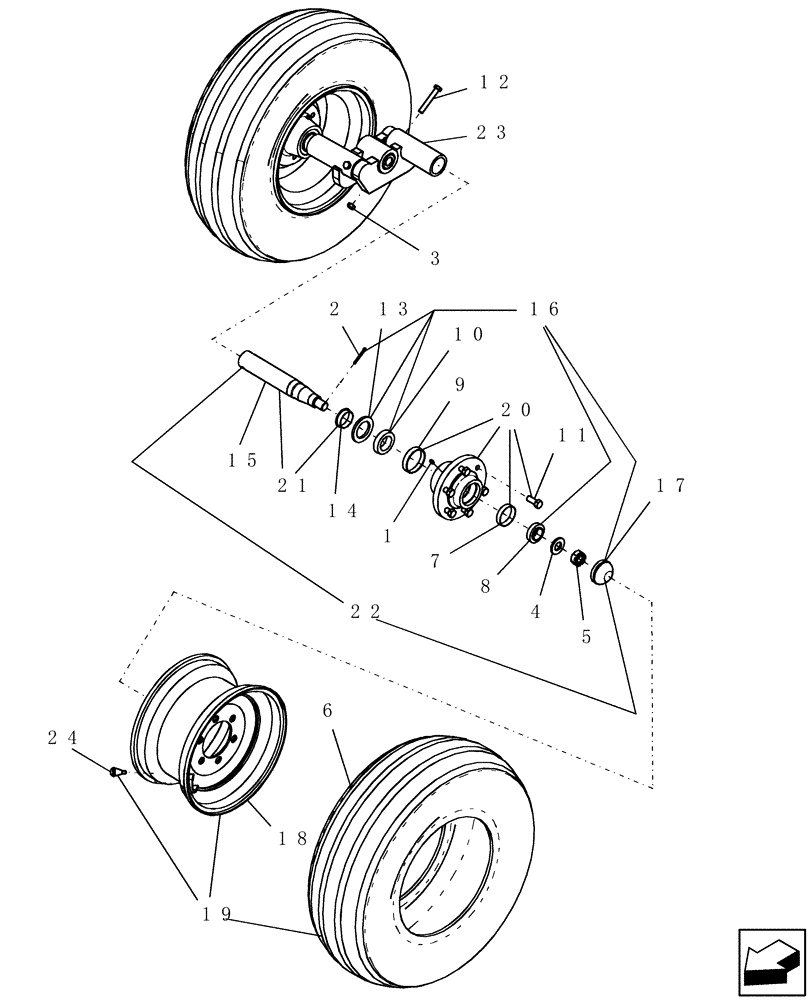

Запчасти Case IH ATX400 (1.110.1) - 6 BOLT HUB AND SPINDLE (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

3шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

86900677

WASHER,1.03" ID x 2" OD x 0.18" Thk

2шт.

5

86020752

SLOTTED NUT

1"-14, G5

2шт.

6

5937

TYRE/TIRE

9.5l x 15 fi - d load range

2шт.

27', 33', 39' and 45' models

1шт.

6

3474

TYRE/TIRE

11l x 15 fi - d load range

2шт.

51' and 57' models

1шт.

7

86516467

BEARING CUP,65.08mm OD x 13.97mm W

#LM48510

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

#LM48548

2шт.

9

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

2шт.

10

86512027

BEARING SET,1.781" ID x 3.063" OD x .781" W

#LM603049

2шт.

11

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

12шт.

12

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

13

3685

OIL SEAL

triple lip - h615 hub

2шт.

14

51200202

SLEEVE

wear, spindle S614/S811

2шт.

15

87441609

SPINDLE

s614- 2 x 13.0 sp c/w nut & washer

2шт.

Includes 495-81078 and 25-1316

1шт.

16

6615

WHEEL BEARING KIT

completion - H615

2шт.

Includes 432-1224, 618023R91, 67527, 51200086 and 3685

1шт.

17

51200086

HUB CAP

dc15 h614

2шт.

18

A57879

RIM

15X8 6 hole with VG +1 1/8" offset

2шт.

19

87505471

WHEEL ASSY

15 x 8 6h with 9.5l-15fi d

2шт.

27', 33', 39' and 45' models

1шт.

19

87505470

WHEEL ASSY

15" x 8" 6h with 11l-15fi d

2шт.

51' and 57' models

1шт.

20

87505492

HUB

H615-1 assembly with cups and bolts

2шт.

Includes 618024R1, 619387R1 and six 1020701

1шт.

Includes hub, cups and wheel bolts

1шт.

21

87442108

SPINDLE

c/w wearsleeve 2 x 13 sp

2шт.

All standard size models

1шт.

Includes 51200202

1шт.

22

87442107

HUB

spindle assy h615-13.0 lg

2шт.

All standard size models

1шт.

23

87444874

BEAM

walking left

1шт.

Shown

1шт.

23

87444873

BEAM

walking right

1шт.

Not Shown

1шт.

24

196033

VALVE STEM

tr/415

2шт.
