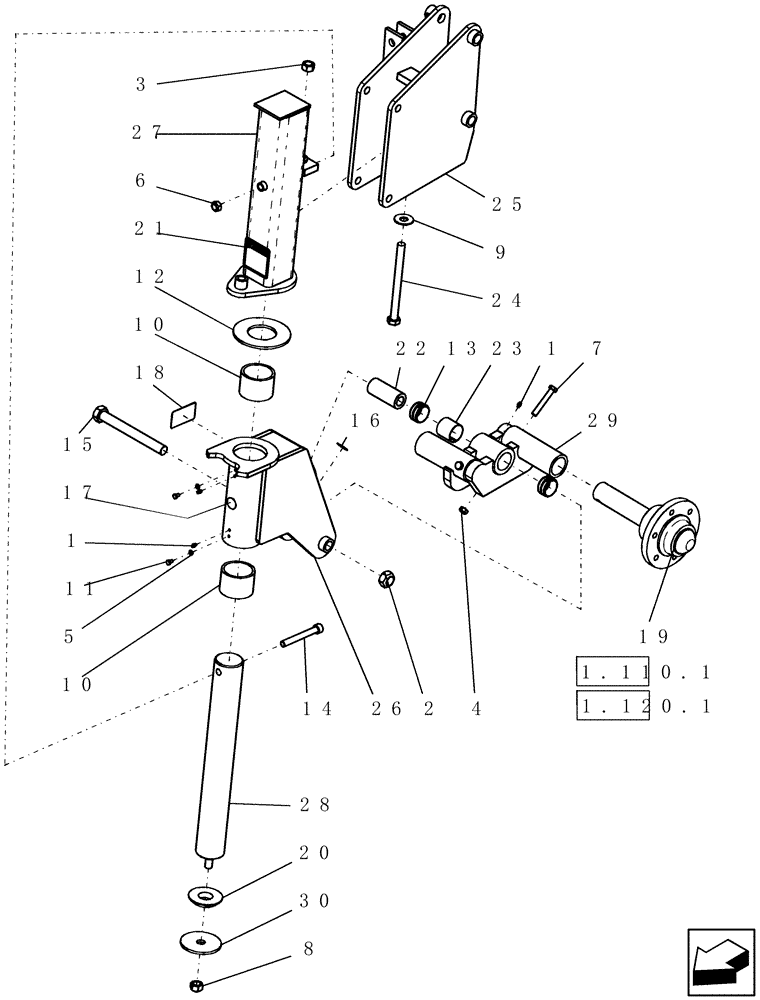

Запчасти Case IH ATX400 (1.100.1) - CENTER SECTION FRONT DUAL CASTER (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

3шт.

2

280286

NUT,1"-8, GB

1шт.

3

280954

NUT,3/4"-10, G5

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

2шт.

5

80682

LOCK WASHER,1/4"

2шт.

6

85700693

NUT,5/8" - 11, Gr C

1шт.

7

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

8

280375

NUT,3/4"-10, GC

1шт.

9

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

10

87501820

BUSHING,76.2mm ID x 88.9mm OD x 63.5mm L

Nylatron* 3 1/2" x 3" x 2 1/2" long

2шт.

11

80280640

BOLT

1/4"-20 x 1/2" G5

2шт.

12

432574A1

WEAR PAD

nylon - heavy caster disc

1шт.

13

6366

BUSHING

tension 2" x 1 3/4" x 1"

2шт.

14

6390

BOLT

5/8"-11 x 5" hex-socket

1шт.

15

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

1шт.

16

6565

DECAL

grease 10 hours

1шт.

17

6566

DECAL

grease 50 hours

1шт.

18

22421

DECAL

bolt torque

1шт.

19

87442107

HUB

spindle assy h615-13.0 lg

1шт.

Refer to 1.110.1 - 6 BOLT HUB AND SPINDLE

1шт.

19

87443627

HUB

spindle assy h811-13.656lg

1шт.

Refer to 1.120.1 - 8 BOLT HUB AND SPINDLE

1шт.

20

CA-117

SEAL

1 1/2" wide x 3 9/16" long x 5/8" thick

1шт.

21

DR-500.04

CAUTION DECAL

caster lock

1шт.

22

87420398

CARRIER

spool hard walk beam

1шт.

22

DR-871K

KIT

Carrier Spool Upgrade

1шт.

Includes 87420398, DR-872, two 6366, 6436, 1408 and DR-497.27

1шт.

23

DR-872

SPACER

walking beam 2" od x 1 7/8" long

1шт.

24

87310714

BOLT

3/4"-10 x 9" G5, Full thread

1шт.

25

87500146

HOUSING

adjustment - heavy left

1шт.

Shown

1шт.

Includes decal 22903

1шт.

25

87500147

HOUSING

adjustment - heavy right

1шт.

Includes decal 22903

1шт.

Not Shown

1шт.

26

87500117

HOUSING

pivot heavy left

1шт.

Shown

1шт.

Includes decal 22421

1шт.

26

87500118

HOUSING

pivot heavy right

1шт.

Includes decal 22421

1шт.

Not Shown

1шт.

27

DR-943

STAND

caster

1шт.

28

DR-356

SHAFT

caster

1шт.

29

87444874

BEAM

walking left

1шт.

Shown

1шт.

29

87444873

BEAM

walking right

1шт.

Not Shown

1шт.

30

ND-951

CAP

caster

1шт.
