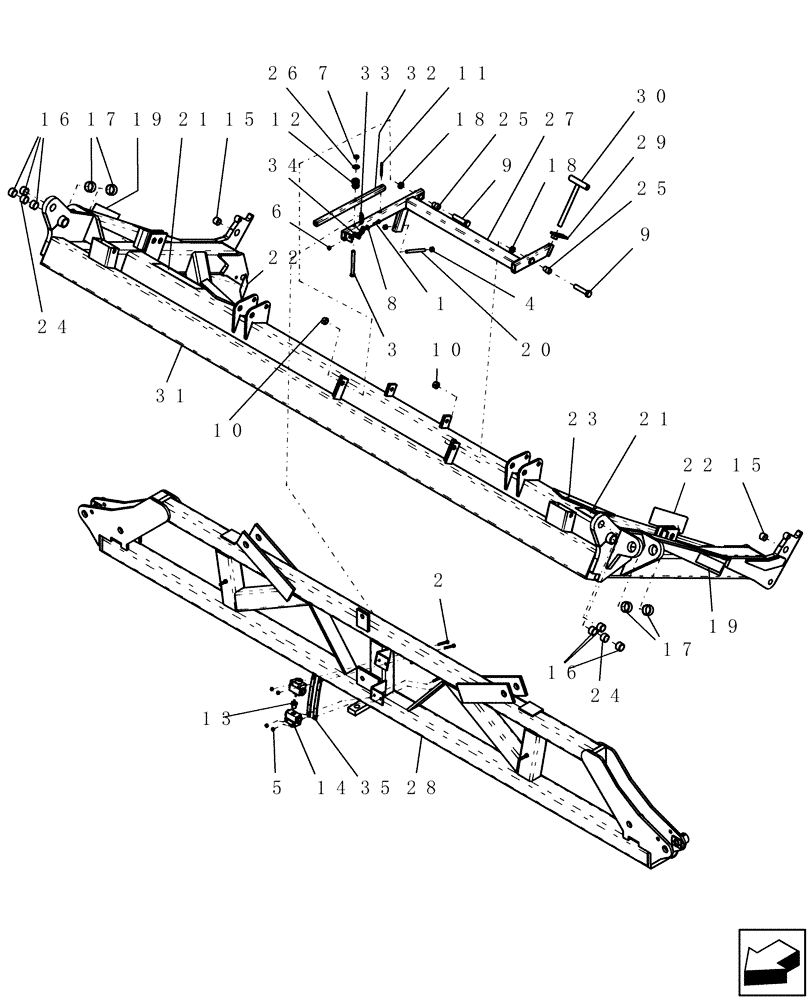

Запчасти Case IH ATX400 (1.050.1) - ROCKSHAFT AND DEPTH CONTROL, CENTER SECTION (12) - FRAME

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

2

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

3

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

280736

NUT,5/16"-18, GC

4шт.

6

88902

NUT,3/8"-16

1шт.

7

86992215

LOCK NUT,1/2"-13, GC

1шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

9

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

2шт.

10

280375

NUT,3/4"-10, GC

2шт.

11

38-11648

LOCK PIN,1/4" x 3", Slotted

1шт.

12

87506260

COMPRESSION SPRING

5/32" wr 1 5/16" od 1 1/2" long

1шт.

13

6284

CARTRIDGE

valve depth stop

2шт.

14

51200150

CONTROL VALVE

depth stop assembly complete

2шт.

Includes 6284

1шт.

15

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

16

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

6шт.

17

6637

BUSHING

composite 2" x 1 3/4" x 1"

4шт.

18

86632557

JAM NUT,Jam, 3/4"-10, G5

2шт.

19

22903

DECAL

retroreflective amber 2" x 9"

2шт.

20

DR-439

STUD

upper limit adjuster

1шт.

21

DR-500.01

DECAL

attention - safety struts

2шт.

22

DR-500.05

DECAL

adjustable cylinder mount

2шт.

23

DR-500.07

DECAL

press wheel greasing

1шт.

24

DR-711

SPACER

1 1/2" od x 3/32" thick x 7/8" long

2шт.

25

DR-841

BUSHING,19.05mm ID x 22.23mm OD x 39.69mm L

stepped - 3/4" id x 7/8" od x 1 13/32" long

2шт.

26

ND-934

WASHER

1/2" id for 7/16" bolt - indented

1шт.

27

DR-721V2

ARM

depth control

1шт.

27

DR-721AV2

ARM

depth control assembly

1шт.

Includes DR-721V2, 280431, DR-439, 88011, 80664, 88576, 9637692, 7729, 87506260, ND-934, 9636698, 87506298, DR-719, 38-11648

1шт.

28

87500173

BAR

4th, center section

1шт.

29

DR-418

ARM

depth jam

1шт.

30

DR-417V2

ADJUSTER

depth

1шт.

31

87501172

ROCKSHAFT

center section

1шт.

Includes six 6636, four 6637, two DR-711, two 22903, two DR-500.01, DR-500.07, two DR-500.05 and two 6635

1шт.

32

DR-719

ACTUATOR

depth plunger

1шт.

33

87506298

TENSION SPRING

7/64" wr 3/4" od 2lg ptd

1шт.

34

7729

CHAIN (AG)

lk 1/4" x 4 19/64" gr30 3 link

1шт.

35

DR-415

GUIDE

depth actuater

2шт.
