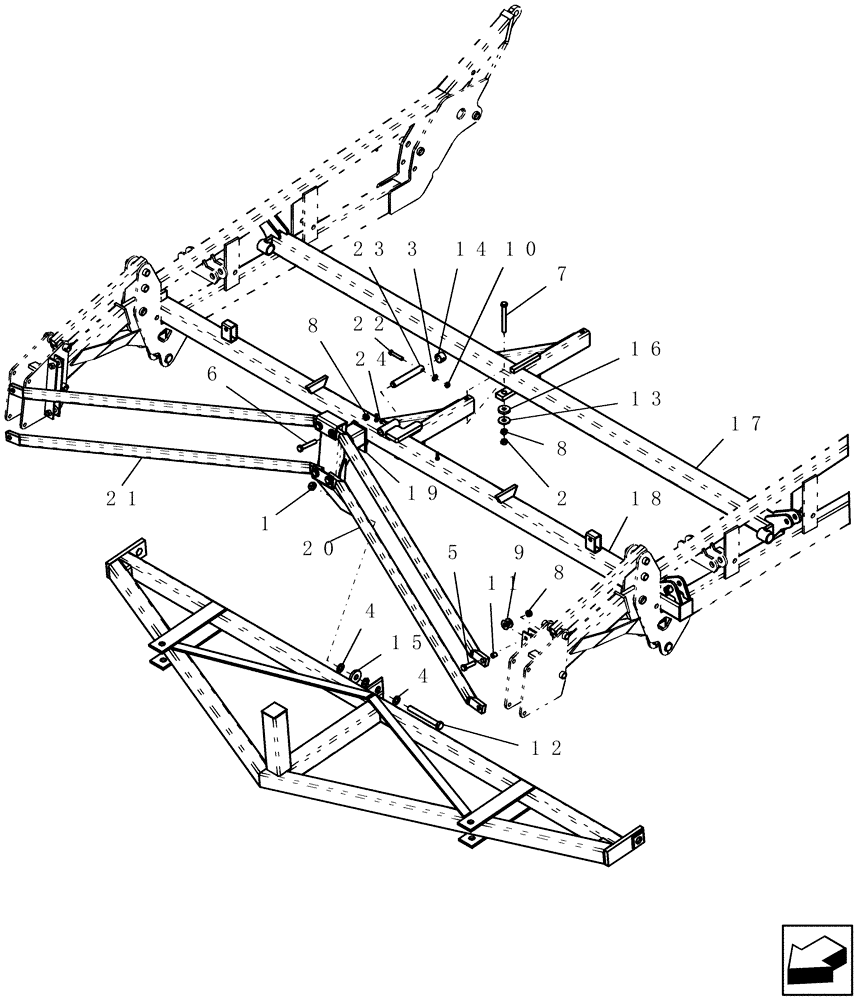

Запчасти Case IH ATX400 (1.020.1) - FRONT BAR, CENTER SECTION (12) - FRAME

1

280286

NUT,1"-8, GB

1шт.

2

280954

NUT,3/4"-10, G5

1шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

4

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

3шт.

5

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

6

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

4шт.

7

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

8

280375

NUT,3/4"-10, GC

9шт.

9

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

8шт.

10

280328

NUT,9/16"-12, GB

1шт.

11

6361

BUSHING

tension 7/8" x 3/4" x 1"

8шт.

12

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

1шт.

13

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

1шт.

14

87420506

CAP

vinyl 44 x 37 lg black

1шт.

15

CA-100

PAD

flex, 1 1/16" id x 3" od x 23/32" thick

1шт.

16

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

1шт.

17

87500169

BAR

2nd, center section

1шт.

18

87500166

BAR

center section front

1шт.

19

87500288

BLOCK

radius center

1шт.

20

87500609

ROD

radius, long

2шт.

21

87500619

ROD

radius, short

2шт.

22

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.

23

87420550

PIN

31 x 200 ul pln

1шт.

24

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.
