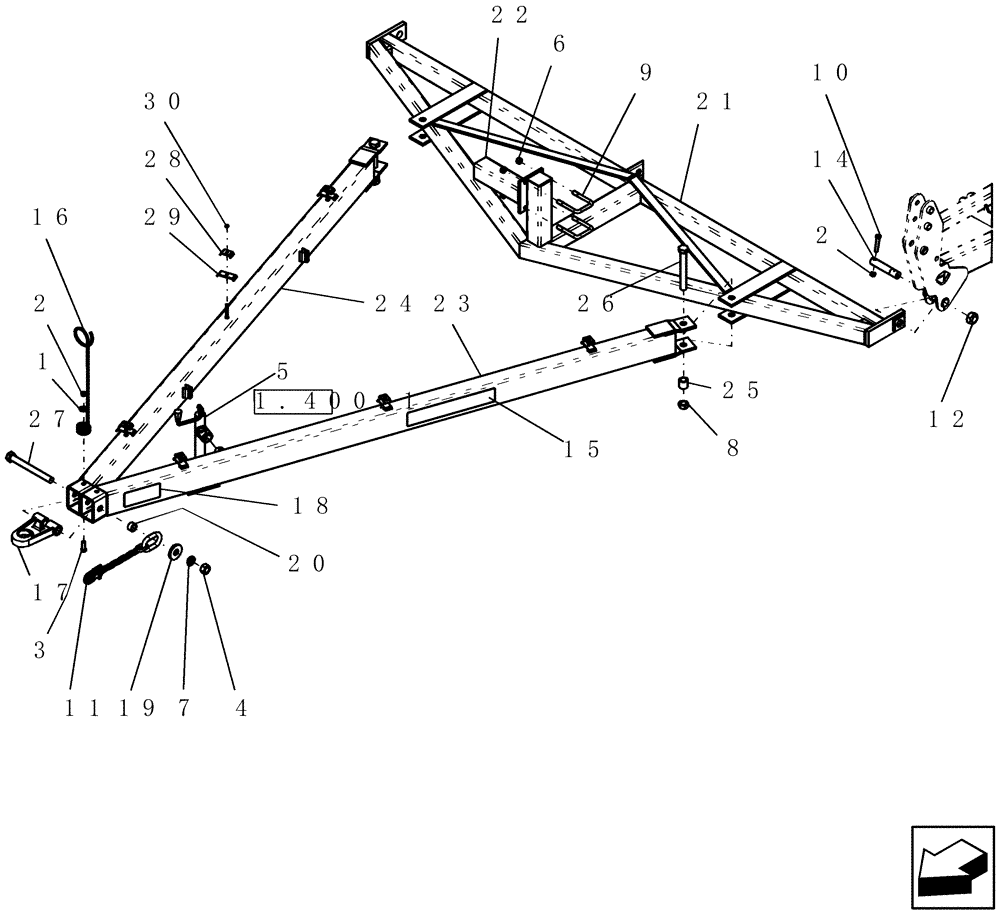

Запчасти Case IH ATX400 (1.010.1) - FRONT HITCH (12) - FRAME

1

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

2

85700693

NUT,5/8" - 11, Gr C

2шт.

3

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

4

9849649

NUT,1 1/4"-7, G5

1шт.

5

1016961

JACK

2000 lb x 15"

1шт.

Refer to 2000lb jack 1.400.1

1шт.

6

280375

NUT,3/4"-10, GC

4шт.

7

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

8

86609684

NUT,1 1/4"-7, GB

2шт.

9

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

2шт.

10

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

11

63506C3

CHAIN (AG)

20,200 lb safety

1шт.

27' models

1шт.

11

PCC8607191

CHAIN

30,400 lb safety

1шт.

33' and 39' models

1шт.

11

GR-457A

CHAIN (AG)

assembly, safety 60,600 lb

1шт.

45', 51' and 57' models

1шт.

12

87323803

LOCK NUT

1 1/2"-12, GC

1шт.

14

87420522

PIN

1 1/2" x 4" hardened

1шт.

15

87523271

DECAL

case ih atx400 lh

1шт.

15

87523272

DECAL

case ih atx400 rh

1шт.

Not Shown

1шт.

16

87506300

HOLDER

spring, hydraulic hose

1шт.

17

87506259

TONGUE

hitch

1шт.

18

GD-500.77

CAUTION DECAL

hydraulics

1шт.

19

ND-585

WASHER

safety chain

1шт.

20

ND-586

SPACER

safety chain

1шт.

21

87500156

HITCH

c-section / truss

1шт.

22

87500957

CLAMP

on stub 4" x 14" lg

1шт.

23

87523264

POLE

hitch short left

1шт.

Shown

1шт.

27', 33' and 39' models

1шт.

Includes decals

1шт.

23

87523266

POLE

hitch long left

1шт.

45', 51' and 57' models

1шт.

Not Shown

1шт.

Includes decals

1шт.

24

87523265

POLE

hitch short right

1шт.

Shown

1шт.

27', 33' and 39' models

1шт.

Includes decals

1шт.

24

87523267

POLE

hitch long right

1шт.

45', 51' and 57' models

1шт.

Not Shown

1шт.

Includes decals

1шт.

25

87449835

SPACER

hitch bolt

2шт.

26

87302794

BOLT

1 1/4"-7 x 10" G5

2шт.

27

87302984

BOLT

1 1/4"-7 x 12" G5

1шт.

28

CC-105

HOSE CLAMP

for 2 hoses

6шт.

29

CC-106

HOSE CLAMP

for 4 hoses

6шт.

30

88902

NUT,3/8"-16

6шт.
