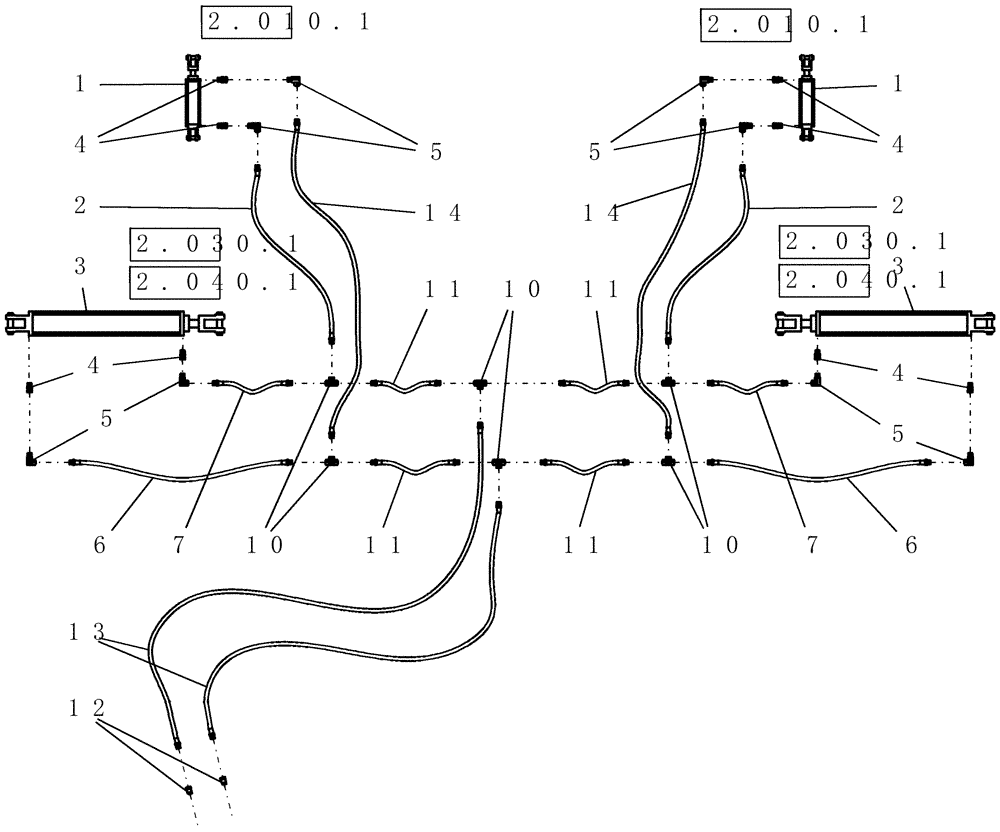

Запчасти Case IH ATX400 (2.060.1) - WING LIFT HYDRAULICS (3 SECTION) (07) - HYDRAULICS

1

86994102

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3" x 8" 3000 psi da

2шт.

Refer to 3" x 8" hydraulic cylinder - Monarch page for details

1шт.

2

22611

HYDRAULIC HOSE,0.38" ID x 62.00", SAE J517, SAE J516, SAE J846, SAE J1273

2шт.

3

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

2шт.

Refer to 4" x 32" hydraulic cylinder - Monarch page for details

1шт.

27' and 33', models

1шт.

87437292R

REMAN-HYD CYLINDER

ATX400 BSN Y9S003001 (7/06-7/08)

2шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

3

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

2шт.

Refer to 5" x 30" and 5" x 40" hydraulic cylinder - Monarch page for details

1шт.

39' models

1шт.

4

6550

RESTRICTOR

hydraulic - swivel

8шт.

5

87331082

FITTING

90º, 1/2" NPTF Male x 1/2" NPSM Fem Sw

8шт.

6

22612

HYDRAULIC HOSE,0.38" ID x 86.50", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 86 1/2" fl, 1/2" mpt x 1/2" mpt

2шт.

7

22623

HYDRAULIC HOSE,0.38" ID x 52.00", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 52" fl, 1/2" mpt x 1/2" mpt

2шт.

10

3819

TEE

1/2" fpt x 1/2" fpt x 1/2" fpt

6шт.

11

22621

HYDRAULIC HOSE,0.38" ID x 65.50", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 65 1/2" fl, 1/2" mpt x 1/2" mpt

4шт.

12

435414A1

QUICK MALE COUPLING,1/2"-14 NPTF

2шт.

13

22620

HYDRAULIC HOSE,0.50" ID x 330.00", SAE J517, SAE J516, SAE J846, SAE J1273

1/2" x 330" fl, 1/2" mpt x 1/2" mpt

2шт.

14

22619

HYDRAULIC HOSE,9.53mm ID x 1854mm L, SAE 100R2

3/8" x 73" fl, 1/2" mpt x 1/2" mpt

2шт.

100

ND-059

KIT

hose color coding

1шт.

Blue markers are for the depth control circuit. Yellow markers are for the wing control circuit

1шт.
