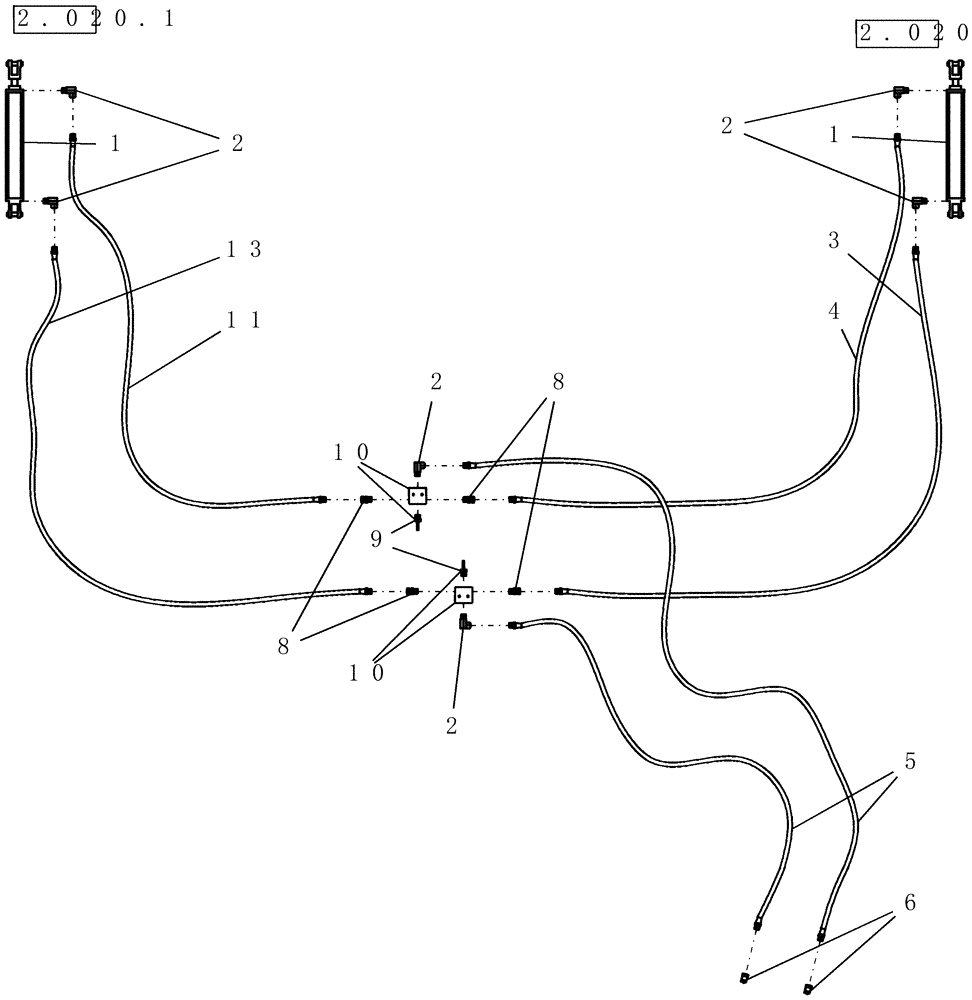

Запчасти Case IH ATX400 (2.050.1) - DEPTH CONTROL HYDRAULICS (3 AND 5 SECTION) (07) - HYDRAULICS

1

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline

2шт.

Refer to 4" x 24" hydraulic cylinder - Monarch page for details

1шт.

1

9652R

REMAN-HYD CYLINDER

ATX400 AIR DRILL BSN Y9S003001, 3 AND 5 SECTION, 4" x 24" Monarch 3000 psi no pins 1 3/4" rod 1/2" fb ports inline (7/06-7/08)

2шт.

1

9652C

CORE-HYD CYLINDER

Return Number

2шт.

2

3568

ELBOW

stl 90º 1/2"mb 1/2"fpx

6шт.

3

22625

HYDRAULIC HOSE,0.38" ID x 110.00", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 110" fl, 1/2" mpt x 1/2" mpt

1шт.

4

22618

HYDRAULIC HOSE,0.38" ID x 130.00", SAE J517, SAE J516, SAE J1273, SAE J517

3/8" x 130" fl, 1/2" mpt x 1/2" mpt

1шт.

5

22624

HYDRAULIC HOSE,12.7mm ID x 372mm L, SAE 100R2

1/2" x 372" fl, 1/2" mpt x 1/2" mpt

2шт.

5 section models

1шт.

5

22620

HYDRAULIC HOSE,0.50" ID x 330.00", SAE J517, SAE J516, SAE J846, SAE J1273

1/2" x 330" fl, 1/2" mpt x 1/2" mpt

2шт.

3 section models

1шт.

6

435414A1

QUICK MALE COUPLING,1/2"-14 NPTF

2шт.

8

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

4шт.

9

6284

CARTRIDGE

valve depth stop

2шт.

10

51200150

CONTROL VALVE

depth stop assembly complete

2шт.

Includes 6284

1шт.

11

87508188

HYDRAULIC HOSE,9.53mm ID x 3454.4mm L

3/8" x 136" fl, 1/2" mpt x 1/2" mpt

1шт.

13

22615

HYDRAULIC HOSE,0.38" ID x 114.00", SAE J517, SAE J516, SAE J1273, SAE J517

3/8" x 114" fl, 1/2" mpt x 1/2" mpt

1шт.

100

ND-059

KIT

hose color coding

1шт.

Blue markers are for the depth control circuit. Yellow markers are for the wing control circuit

1шт.
