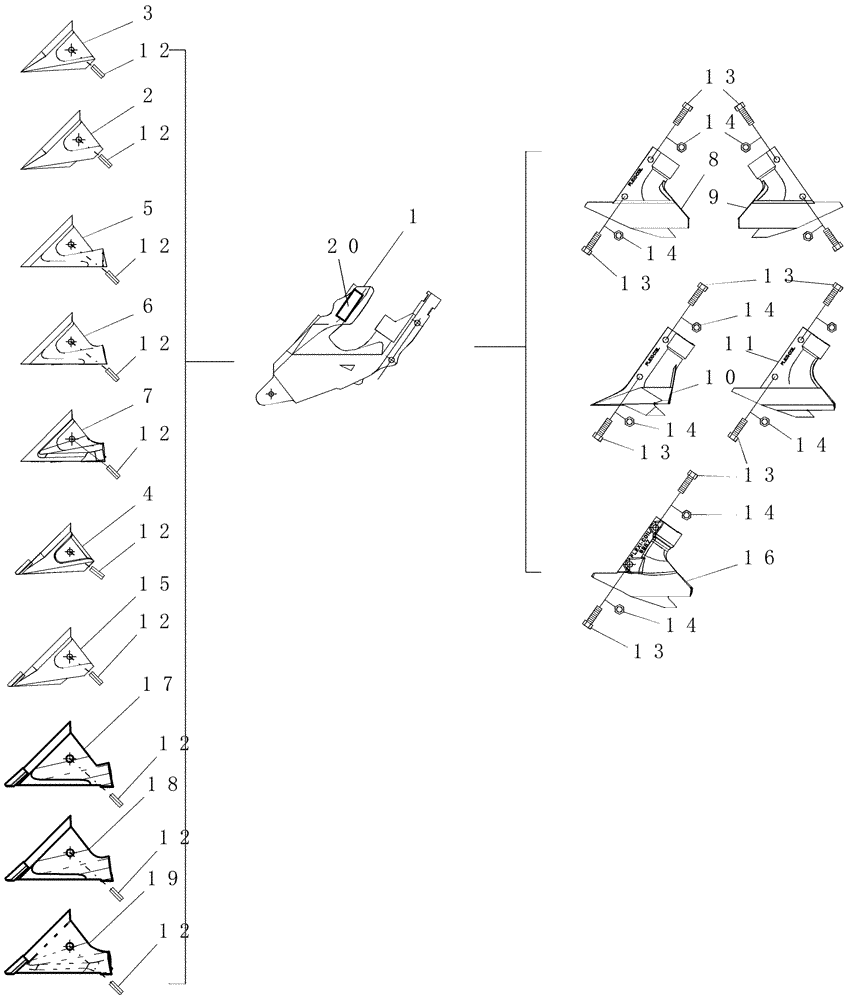

Запчасти Case IH ATX400 (8.160.1) - SINGLE/DOUBLE/PAIRED ROW DOUBLE SHOOT OPENERS Related Equipment

1

GD-847V3

BODY

cast Stealth

1шт.

2

87506287

TIP

cast gumbo Stealth

1шт.

3

87506283

TIP

cast standard Stealth

1шт.

4

87506293

TIP

cast standard Stealth carbide

1шт.

5

87506284

TIP

cast 3" spread Stealth

1шт.

6

87506285

TIP

cast 4" spread Stealth

1шт.

7

87506290

TIP

cast 5" spread Stealth

1шт.

8

87506407

ATTACHMENT

cast sideband LH Stealth

1шт.

8

22846

ATTACHMENT

cast sideband LH Stealth carbide

1шт.

9

87506409

ATTACHMENT

cast sideband RH Stealth

1шт.

9

22847

ATTACHMENT

cast sideband RH Stealth carbide

1шт.

10

87506291

ATTACHMENT

cast 3" paired row Stealth

1шт.

10

87506295

ATTACHMENT

cast 3" paired row Stealth carbide

1шт.

11

87506292

BOOT

stealth 3" paired row light soil

1шт.

12

8082V2

ROLL PIN,7.94mm OD x 25.4mm L

spiral 5/16" x 1" heavy duty

1шт.

13

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

13

1488

BOLT,Hex, 3/8"-16 x 1 1/2", G5

4" & 5" Paired Row

1шт.

14

21477

LOCK NUT

3/8"-16 2 way

1шт.

15

87505195

TIP

cast gumbo Stealth carbide

1шт.

16

87506261

ATTACHMENT

cast 4" paired row Stealth

1шт.

16

22848

ATTACHMENT

cast 4" paired row Stealth carbide

1шт.

16

87506294

ATTACHMENT

cast 5" paired row Stealth

1шт.

16

22849

ATTACHMENT

cast 5" paired row Stealth carbide

1шт.

17

87563693

TIP

cast 3" spread Stealth carbide

1шт.

18

87563694

TIP

cast 4" spread Stealth carbide

1шт.

19

87563695

TIP

cast 5" spread Stealth carbide

1шт.

20

22663

DECAL

Refer to Operators Manual

1шт.

20

87607207

DECAL

refer to operators manual, Russian

1шт.
