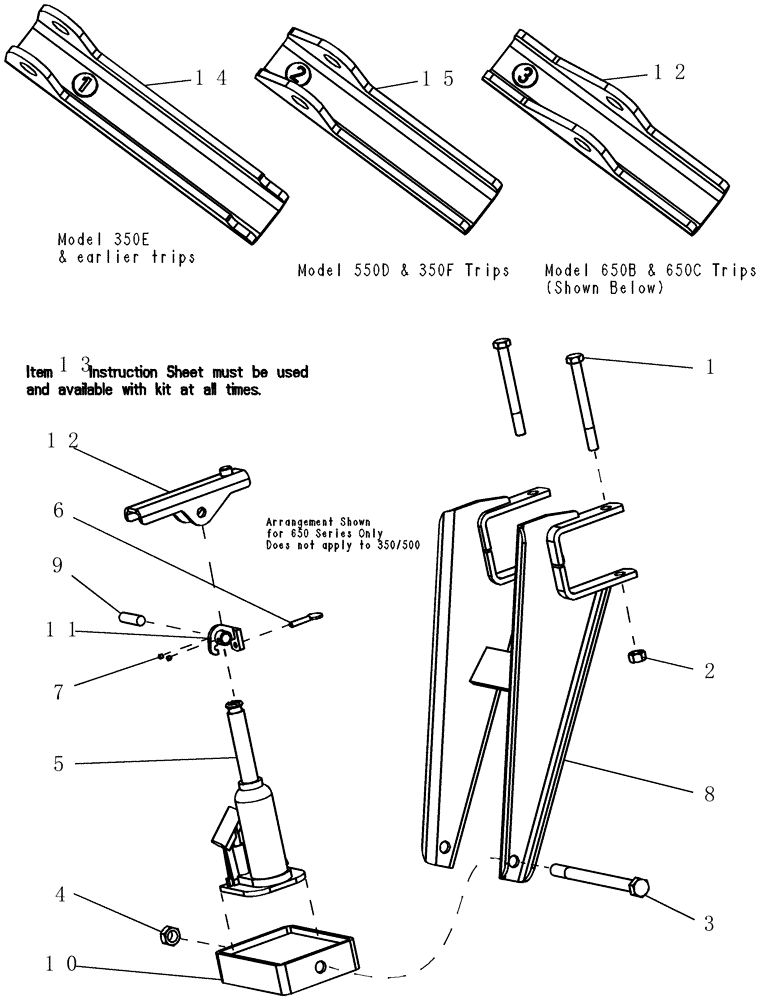

Запчасти Case IH ATX400 (8.140.1) - TRIP COMPRESSOR Related Equipment

0

TP-950K

KIT

compressor, spring service tool

1шт.

Includes parts on this page

1шт.

1

88264

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

2

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

3

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

1шт.

4

280375

NUT,3/4"-10, GC

1шт.

5

5096

JACK

hydraulic - 3 ton

1шт.

6

432570A1

THUMB SCREW

5/16" x 1 1/2"

1шт.

7

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

1шт.

8

NSS

NOT SOLD SEPARAT

TRIP COMPRESSOR

1шт.

9

NSS

NOT SOLD SEPARAT

CLIP PLATED

1шт.

10

NSS

NOT SOLD SEPARAT

JACK TRIP COMPRESSOR

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP TRIP COMPRESSOR

1шт.

12

NSS

NOT SOLD SEPARAT

COMPRESSOR MOUNT 650C

1шт.

13

NSS

NOT SOLD SEPARAT

Instruction Sheet

1шт.

14

NSS

NOT SOLD SEPARAT

COMPRESSOR MOUNT 355E

1шт.

15

NSS

NOT SOLD SEPARAT

COMPRESSOR MOUNT 550D

1шт.
