Запчасти Case IH ATX400 (8.130.1) - 550 POUND RELEASE TRIPS AND SHANKS Related Equipment

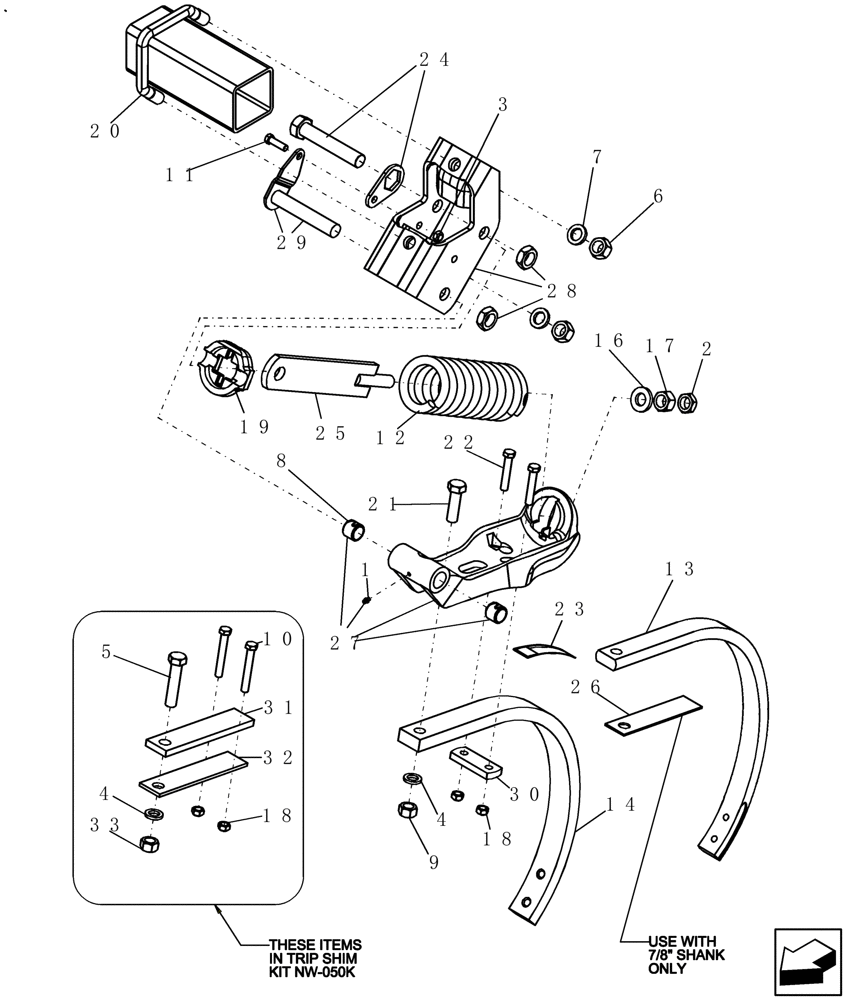

Схема запчастей Case IH ATX400 - (8.130.1) - 550 POUND RELEASE TRIPS AND SHANKS Related Equipment
10
4
23
25
5
8
22
7
24
18
19
9
12
28
6
32
29
33
21
2
17
30
1
18
14
26
27
4
13
3
20
31
11
16

Артикул

Название

Примечание

Количество

0

87686090

TRIP

assembly, 550 lb

1шт.

Does not include shank, shim kit or mounting hardware

1шт.

Order individual parts

1шт.

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

1460

JAM NUT

jam 7/8"

1шт.

3

280980

NUT,7/16"-14, GC

1шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

5

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

1шт.

6

9849647

NUT,7/8"-9, G5

2шт.

7

87341

LOCK WASHER,7/8"

2шт.

8

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

2шт.

9

9823966

NUT,3/4"-16, G8

2шт.

10

86565315

BOLT,Hex, 1/2" - 20 x 3 1/2", Gr 8

2шт.

11

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

1шт.

12

87505490

SPRING

trip 5/8" wire x 2 27/32" id

1шт.

13

7862\C

SHANK

10-47º 7/8" x 2", Years: -01-JAN-05

1шт.

Shown

1шт.

13

7866\C

SHANK

10-47º 7/8" x 2" right 2 1/4" offset, Years: -01-JAN-05

1шт.

13

7867\C

SHANK

10-47º 7/8" x 2" left 2 1/4" offset, Years: -01-JAN-05

1шт.

14

87506241

SHANK

10-50º 1 x 2

1шт.

Shown

1шт.

14

87506242

SHANK

10-50º 1 x 2 right 2 1/4" offset

1шт.

14

87506243

SHANK

10-50º 1 x 2 left 2 1/4" offset

1шт.

14

87500716

SHANK

10-50º 1 x 2 left 3 1/8" offset

1шт.

14

87500715

SHANK

10-50º 1 x 2 right 3 1/8" offset

1шт.

14

87506280

SHANK

10-47º 1 x 2

1шт.

14

87506281

SHANK

10-47º 1 x 2 left 2 1/4" offset

1шт.

14

87506282

SHANK

10-47º 1 x 2 right 2 1/4" offset

1шт.

16

7898

WASHER,23.01mm ID x 44.45mm OD x 6.35mm Thk

29/32" id 1 3/4" 1/4" pln

1шт.

17

9602205

NUT,7/8"-14, G5

1шт.

18

7959

LOCK NUT

1/2"-20, GC

4шт.

19

87688808

SUPPORT

trip spring - cast

1шт.

20

8398

BOLT

v 7/8"-9 x 4" G5

1шт.

21

86512048

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

22

280561

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

2шт.

23

NW-500.05

DECAL

compressed spring

1шт.

24

NW-551K

KIT

pin top replacement - 550 lb trip

1шт.

25

NW-552

LINK

tension, adjustable

1шт.

25

TP-133K

KIT

tension link 550 lb trip

1шт.

Available for areas where trips are subjected to vibration/impact loading

1шт.

26

NW-560

SPACER

1/8" thick 1 7/8" wide 8" long

1шт.

For 7/8" shank only

1шт.

27

NW-562

CASTING

shank head assembly with bushings

1шт.

Includes 80714 and two 64601C1

1шт.

28

NW-563K

KIT

channel mounting 550 lb trip

1шт.

29

NW-564K

KIT

pin, pivot 550 trip replacement parts

1шт.

30

NW-582

PLATE

bolt 1/2" x 1 1/2" x 4"

1шт.

31

TC-352

SHIM

1/2"

1шт.

32

TC-353

SHIM

1/4"

1шт.

33

280954

NUT,3/4"-10, G5

1шт.

100

NW-050K

SHIM KIT

550 lb trip

1шт.

Includes 87340, 86977759, 9823966, two 86565315, two 7959, TC-352 and TC-353

1шт.

100

TP-950K

KIT

compressor, spring service tool

1шт.

Not Shown

1шт.

Refer to trip compressor page for details

1шт.

Выбрано товаров: 55
