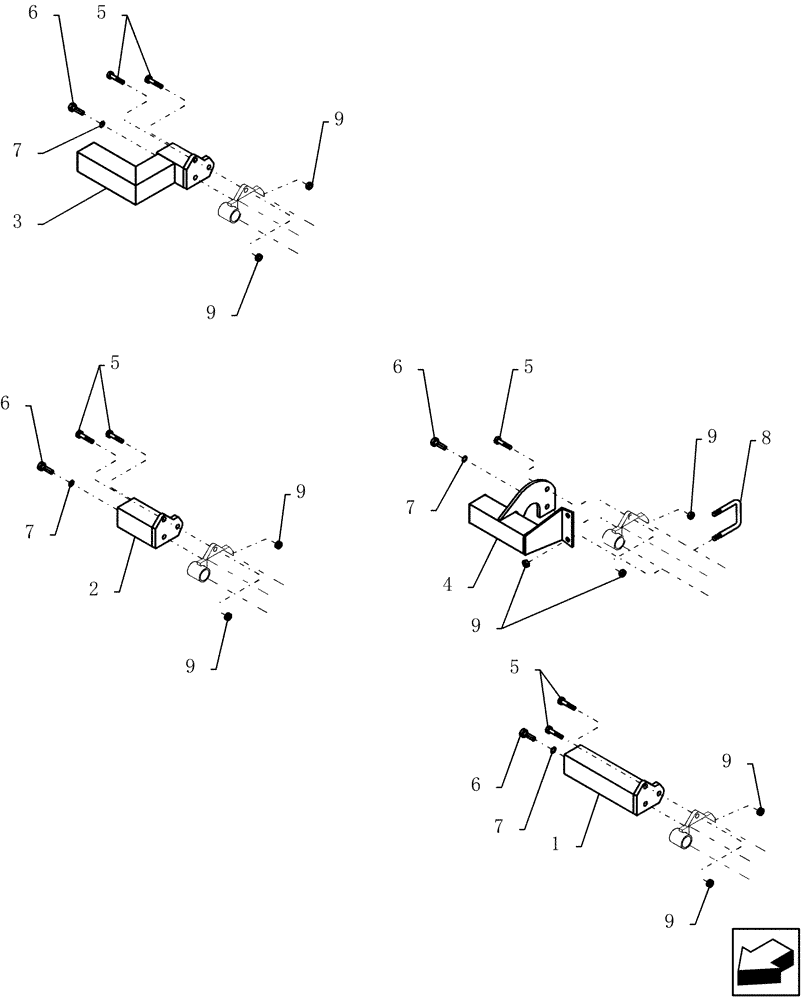

Запчасти Case IH ATX400 (8.090.1) - STUB ASSEMBLIES Related Equipment

1

87500267

EXTENSION

stub, long LH

1шт.

Shown

1шт.

1

87500266

EXTENSION

stub long RT

1шт.

Not Shown

1шт.

2

87500269

EXTENSION

stub short LT

1шт.

Shown

1шт.

2

87500268

EXTENSION

stub short RT

1шт.

Not Shown

1шт.

3

87500265

EXTENSION

offset, long LH, 3 bolt

1шт.

3

87500264

EXTENSION

offset, long RH, 3 bolt

1шт.

4

87500972

EXTENSION

offset stub, short

1шт.

5

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

7шт.

6

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

4шт.

7

87341

LOCK WASHER,7/8"

4шт.

8

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

1шт.

9

280375

NUT,3/4"-10, GC

8шт.
