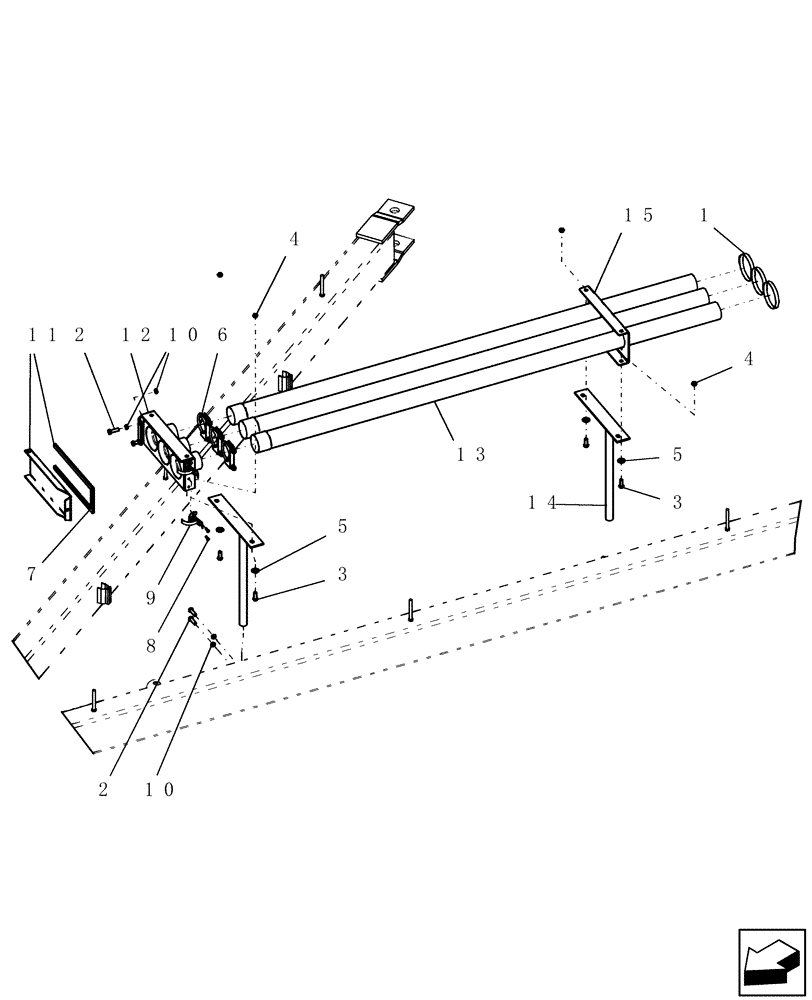

Запчасти Case IH ATX400 (8.070.1) - HOSE CONNECTORS - AIR DRILL AND TOW BETWEEN SEEDER Related Equipment

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

3шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

88902

NUT,3/8"-16

4шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

6

1824

CLAMP

muffler, 2 1/2"

3шт.

7

425289A1

FOAM

1/2" wide x 3/16" thick - bulk

1шт.

8

4630

RIVET,Pop, 3/16" x .690"

4шт.

9

5625

LATCH

clamp over center

2шт.

10

87016560

JAM NUT,Jam, 3/8"-16, G5

8шт.

11

GD-254

COVER

plate hose connect

1шт.

12

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

13

GE-360

TUBE,63.5 mm OD x 1829 mm L

primary distribution - quick connect

2шт.

14

GP-200

SUPPORT

post, hose

2шт.

15

GP-201

PANEL

standard tube hose mount

1шт.
