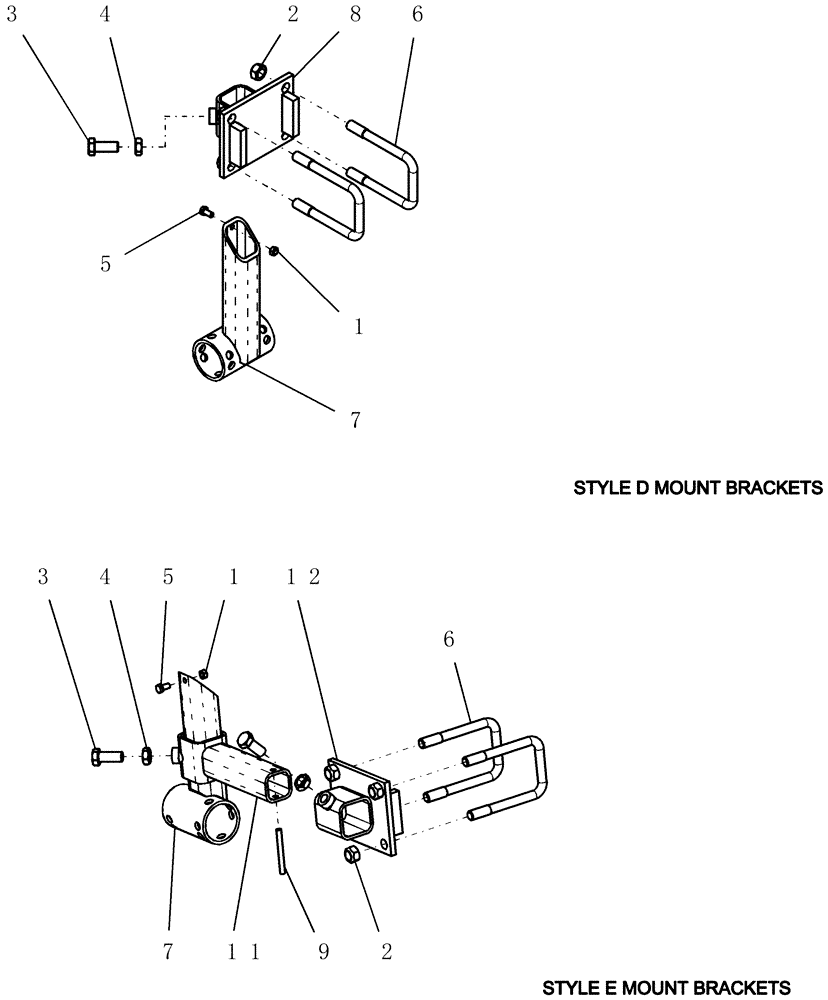

Запчасти Case IH ATX400 (8.020.1) - HEAVY HARROW MOUNT BRACKETS D AND E Related Equipment

1

280736

NUT,5/16"-18, GC

2шт.

2

85700693

NUT,5/8" - 11, Gr C

8шт.

3

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

3шт.

4

86632556

JAM NUT,Jam, 5/8"-11, G5

3шт.

5

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

6

9987

U-BOLT

us 5/8"-11 3 1/16" w 5 1/2" d G5

4шт.

7

HM-801

ADJUSTER

height

2шт.

8

87501525

PACKER

harrow wide

1шт.

9

8559

PIN,5/16" x 3"

roll 5/16" x 3", Slotted

1шт.

11

HM-802

TUBE

mount

1шт.

12

87501424

PACKER

harrow offset

1шт.
