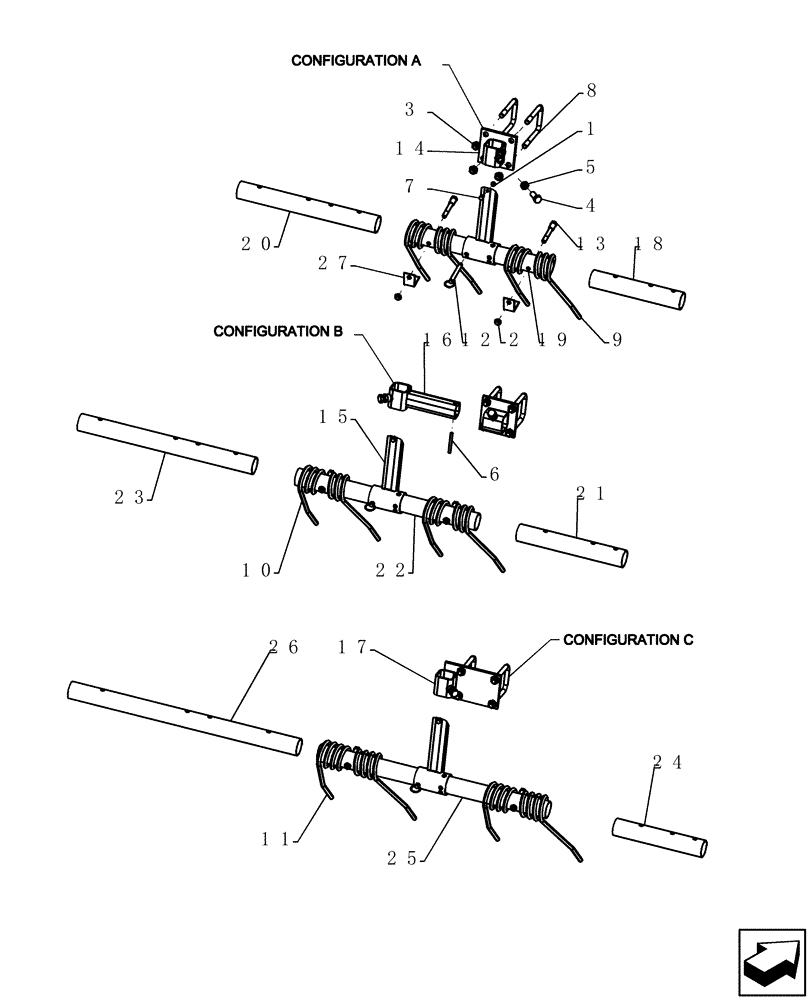

Запчасти Case IH ATX400 (8.010.1) - HEAVY HARROW CLOSER ASSEMBLY WITH MOUNT BRACKETS A, B AND C Related Equipment

1

280736

NUT,5/16"-18, GC

3шт.

2

86992215

LOCK NUT,1/2"-13, GC

6шт.

3

85700693

NUT,5/8" - 11, Gr C

12шт.

4

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.

5

86632556

JAM NUT,Jam, 5/8"-11, G5

4шт.

6

8559

PIN,5/16" x 3"

roll 5/16" x 3", Slotted

1шт.

7

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

8

9987

U-BOLT

us 5/8"-11 3 1/16" w 5 1/2" d G5

6шт.

9

22764

TINE

harrow, 1/2" x 18" x 7 1/2" w - single bolt bent

2шт.

10

87500793

TINE

harrow 1/2" x 18" x 10" w ptd single bolt, bent

2шт.

11

22766

TINE

harrow, 1/2" x 18" x 12" w - single bolt bent

2шт.

12

1711

HITCH PIN

1/2" x 3-1/2" usable - quick

3шт.

13

87505181

BOLT

sh 1/2"-13 x 3 3/4" G5

6шт.

14

HM-800

MOUNTING PLATE

standard

2шт.

15

HM-801

ADJUSTER

height

3шт.

16

HM-802

TUBE

mount

1шт.

17

HM-803

BRACKET

mount, offset

1шт.

18

HM-804

TUBE,13" L

harrow, 7 3/16" spacing - single tine

1шт.

19

HM-805

TUBE,20" L

harrow, 7 3/16" spacing - double tine

1шт.

20

HM-811

TUBE,20" L

harrow, 7 3/16" spacing - offset double tine

1шт.

21

87501146

TUBE,53.98 mm ID x 60 mm OD x 699 mm L

harrow 10 single tine

1шт.

22

87501144

TUBE,53.98 mm ID x 60 mm OD x 699 mm L

harrow 10 double tine

1шт.

23

87501409

TUBE,54 mm ID x 60 mm OD x 699 mm L

harrow 10 dbl offset tine

1шт.

24

87501522

TUBE,53.975 mm ID x 60.325 mm OD x 324 mm L

harrow 12 single tine sh

1шт.

25

HM-809

TUBE,2.125" ID x 2.375" OD

harrow, 12" spacing - double tine

1шт.

26

HM-810

TUBE,2.125" ID x 2.375" OD x 33" L

harrow, 12" spacing - offset double tine

1шт.

27

HM-817

ANGLE

tine stopper 1/2"

2шт.
