Запчасти Case IH ATX400 (6.280.1) - PACKER GANG ASSY 10" SPACING, 7 RUBBER WHEELS Packer Gang Assemblies and Frames

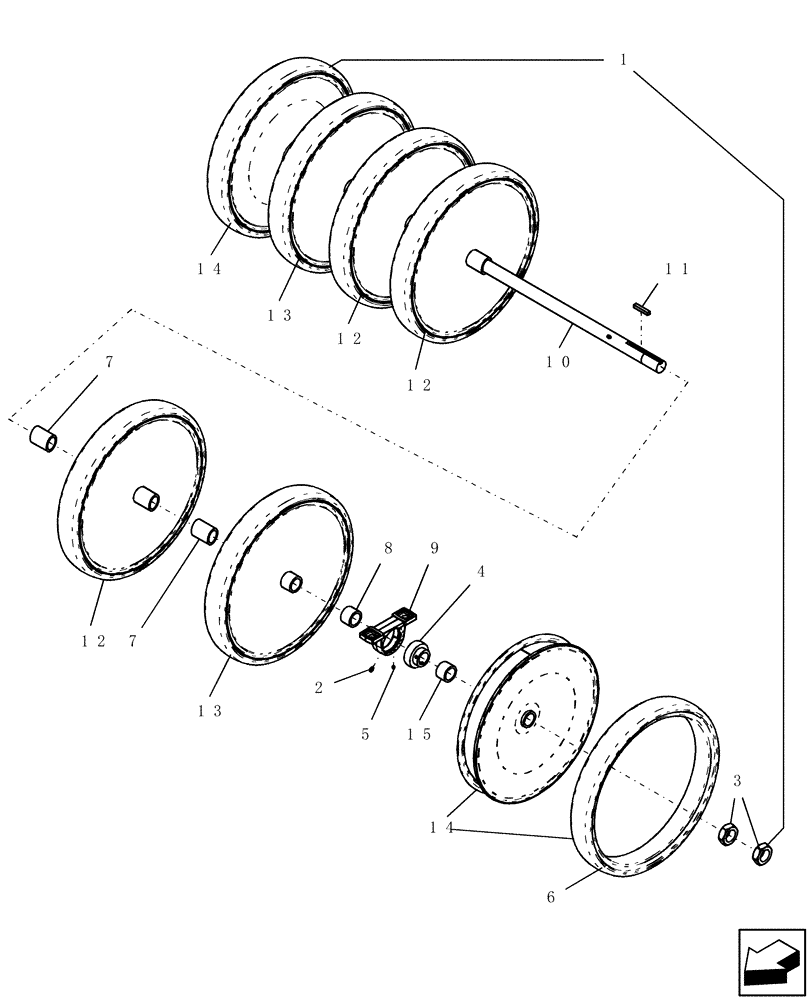

Схема запчастей Case IH ATX400 - (6.280.1) - PACKER GANG ASSY 10" SPACING, 7 RUBBER WHEELS Packer Gang Assemblies and Frames
7
4
12
6
7
12
14
1
5
10
13
13
11
14
15
3
2
8
9
12

Артикул

Название

Примечание

Количество

1

87450329

WHEEL ASSY

gang 251 mm spc 7 x 3"

1шт.

1

87450331

WHEEL ASSY

gang 251 mm spc 7 x 4"

1шт.

1

87450333

WHEEL ASSY

gang 251 mm spc 7 x 5 1/2"

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

4шт.

3

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12 G5

4шт.

4

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

2шт.

5

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

2шт.

6

7215

TYRE/TIRE

press wheel - 3" x 22"

7шт.

6

8251

TYRE/TIRE

press wheel - 4" x 22"

7шт.

Used with 87450331

1шт.

6

9407

TYRE/TIRE

press wheel - 5 1/2" x 22"

7шт.

Used with 87450333

1шт.

7

87450343

SPACER

67 mm slant cut

3шт.

8

87450345

SPACER

35.5 mm straight cut

2шт.

8

87450347

SPACER

10.5 mm straight cut

2шт.

Used with 87450333

1шт.

8

87450349

SPACER

22 mm straight cut

2шт.

Used with 87450333

1шт.

9

87502149

BEARING HOUSING

pillow block

2шт.

9

DR-004K

BEARING

kit packer - heavy duty triple lip seal

1шт.

Includes two bearings and four machine bushings to do one gang frame assembly

1шт.

10

DR-526

SHAFT

gang 63 7/8" long

1шт.

Used with 87450331

1шт.

Used with 87450329

1шт.

10

87450362

SHAFT

gang 65 5/8" long

1шт.

Used with 87450333

1шт.

11

DR-575

KEY

3/8" sq x 2 1/4" long

2шт.

12

DR-952A

WHEEL

press 3" rubber standard ( \\ ) spool

3шт.

12

DR-956A

WHEEL,508mm OD x 101.6mm W

press 4" rubber standard ( \\ ) spool

3шт.

Used with 87450331

1шт.

12

DS-352A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber standard ( \\ ) spool

3шт.

Used with 87450333

1шт.

13

DR-953A

WHEEL,508mm OD x 76.2mm W

press 3" rubber bearing ( \! ) spool

2шт.

13

DR-958A

WHEEL

press 4" rubber bearing ( \! ) spool

2шт.

Used with 87450331

1шт.

13

DS-354A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber bearing ( \! ) spool

2шт.

Used with 87450333

1шт.

14

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

2шт.

14

DR-957A

WHEEL,508mm OD x 101.6mm W

press 4" rubber end ( !! ) spool

2шт.

Used with 87450331

1шт.

14

DS-353A

WHEEL,139.7mm OD

press 5 1/2" rubber end ( !! ) spool

2шт.

Used with 87450333

1шт.

15

DS-301

SPACER

press wheel 1 5/16" ( !! )

2шт.

Выбрано товаров: 43
